Indoor Custom Flexible Curved Trade Show Exhibit P2.5 LED Video Wall Display Solution
ANWELL team has focused on export business since 2012, who specialized in supplying the solutions of LED display screens, LED signs for the worldwide market. Our products includes:
• rental LED display screen
• indoor & outdoor advertising led display
• front service / front access led sign
• led poster sign
• small pixel pitch LED display
• 4K video wall screen
Product features
Seamless panel connection: Panels are stitched together via magnetic connection.
This magnetic buckle design also ensures fast installation and replacement.
Space-efficient: Since these soft and flexible LED displays are not enclosed inside a cabinet, they only take up 5mm space in thickness. So, you can install freely without worrying about space limitations.
Cost savings: Thanks to their light-weight design, up to 20 sq mts of soft LEDs can be packed inside one flight case.
So, you get to save on both shipping and labor costs.
Easy servicing: With top and front access for service, maintenance becomes astonishingly quick and easy.
Highly customizable: You decide the shape, size, color, and pixel pitch, and we will take care of the rest.With these soft and flexible LEDs, you don't have to shy away from irregular shapes like circles, columns, ellipses, triangles, spheres, etc
Product Description:
1.Price Advantage: we have the best competitive price at the market, also have the same even better quality.Wide viewing angle and the horizontal angle can reach 110 . The images display effect will not Change in the range.
2.Quality advantage: From material to finished product, from design to produce, we control all steps. Good heat dissipation capability because of the unique design of vent fan.High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments.No mosaic display due to excellent flatness and nice uniformity of light-emitting.
3.Service advantage: Better service at same situation, better cooperation at same service.
4.Certificate:We ensure that our products are the CE certified, ROHS compliant, FCC ,ULidentified and passed the system of ISO 9001.
Technical Specification:
PARAMETER | SPECIFICATION |
Pixel Pitch(mm) | 2.5 |
Pixel Density | 160000/m2 |
LED Type | SMD2121 |
LED Wave Length(nm) | R:620-625/G:515-520/B:470-475 |
LED Luminous Intensity(mcd) | R:210~370/G:420~650/B:85~110 |
Viewing Angle | H:160°/ V:160° |
Bending radian | Centre bend≤120°/Opp angle bend≤120° |
Brightness | 1200cd/m2 |
Drive Method | 1/32 |
Signal interface | HUB75 |
Color Depth | 4096(14bits) |
Refresh Rate(Hz) | ≥1920 |
Frame Rate(Hz) | ≥60 |
Contrast ratio | 3500:1 |
Module Size(mm) | 240*120 |
Cabinet Size (mm) | Customizable |
Power Supply | 5V 40A |
Voltage(V) | AC 110~240V |
Avg. Power Consumption | 350W/m2 |
Max. Power Consumption | 700W/m2 |
Service Access | Rear service |
IP Grade | IP30 |
Operating Temp/Humidity | -20ºC~50ºC, 10~90%RH |
Storage Temp/Humidity | -40ºC~60ºC, 10~90%RH |
Lifetime(Normal Temp) | ≥100000H |
System Controlle | Synchronization with PC |
Supply Ability
Supply Ability: 1100+SQM per Month.
Packaging & Delivery

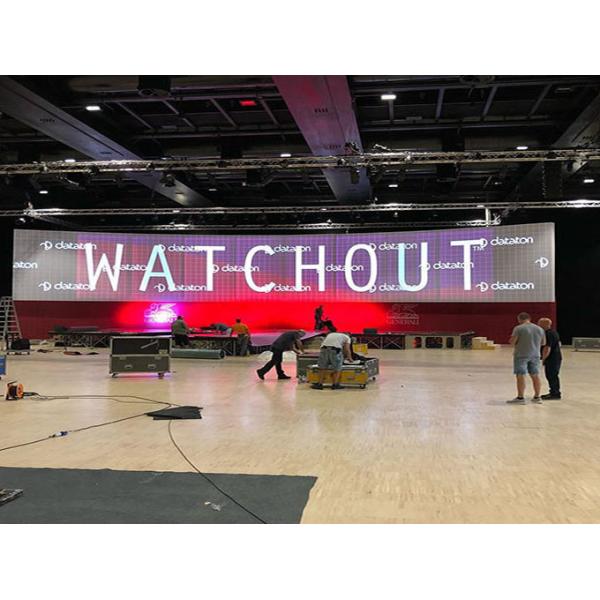

Real products and projects overview
OUR SERVICE:
PRE-PRODUCING:
1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
IN PRODUCING:
1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients
AFTER SERVICE:
1. 2 years free maintenance
2. 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service
