Factory Direct HD Full Color P5.95 P4.81 P3.91 Stage Led Screen Display
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image
6. Adjustable curve . With angle regulator , the arc can be adjusted to 10 degree concave to 10 degree convex
7. Front service modules. The maintenance can be easily done from front by taking off the modules
8. The same panel is compatible with P2.97, P3.91,P5.95 and P6.25 indoor and outdoor LED display .

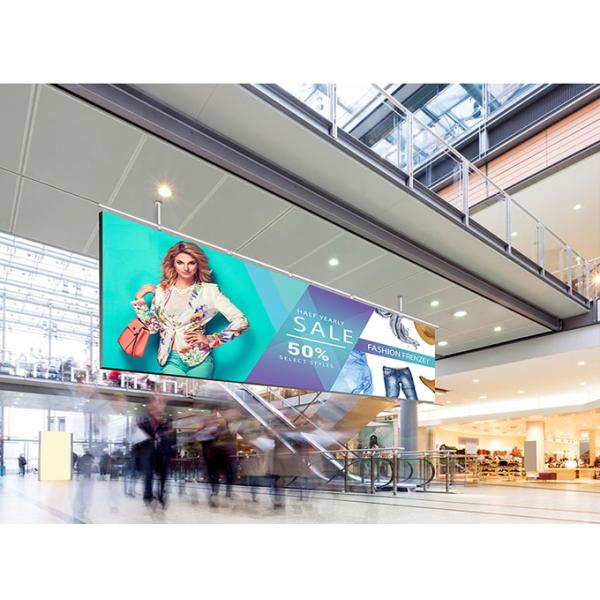

9. Application: stage rental, shopping mall, DJ touring, theme resort, car show, fashion store, house of worship, window display, reception hall, opera house, wedding hall, events and conference
Supply Ability
Supply Ability:1400 Square Meter/Square Meters per Month.
Packaging & Delivery
Technical Specification:
Rental led display panels | |||||||
Model No. | P2.6 | P2.84 | P2.97 | P3.91 | P4.81 | P5.95 | P6.25 |
Pixel Pitch | 2.604mm | 2.84mm | 2.976mm | 3.91mm | 4.81mm | 5.95mm | 6.25mm |
Pixel Density | 147456 | 123904 | 112896 | 65536 | 43264 | 28224 | 25600 |
(dots/sq.m) | |||||||
LED component | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD3528 | SMD3528 |
Module Size | 250 X 250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
Module Resolution | 96 x 96 | 88 x 88 | 84 x 84 | 64 x 64 | 52 x 52 | 42 x 42 | 40 x 40 |
(dots/sq.m) | |||||||
Panel Size | 500x500mm | 500x500mm | 500x500mm | 500x500mm | 500x500mm | 500x500mm | 500x500mm |
500x1000mm | 500x1000mm | 500x1000mm | 500x1000mm | 500x1000mm | 500x1000mm | 500x1000mm | |
Panel Weight | 8kgs | 8kgs | 8kgs | 8kgs | 8kgs | 8kgs | 8kgs |
14kgs | 14kgs | 14kgs | 14kgs | 14kgs | 14kgs | 14kgs | |
Brightness | ≤1200nits | ≤1200nits | ≤1200nits | ≤1500nits | ≤1500nits | ≤1500nits | ≤1500nits |
Best viewing distance | ≥2.6m | ≥2.8m | ≥2.9m | ≥3.9m | ≥4.8m | ≥6.0m | ≥6.2m |
Maximum power consumption | ≤1000W/sq.m | ≤1000W/sq.m | ≤800W/sq.m | ≤800W/sq.m | ≤800W/sq.m | ≤800W/sq.m | ≤800W/sq.m |
Driving method | 1/32 | 1/22 | 1/28 | 1/16 | 1/13 | 1/7 | 1/10 |
Control method | Synchronous control system ( connect with computer or video processor) | ||||||
Uniformity | 97% | ||||||
Working voltage | AC220V/110V±10% | ||||||
Working temperature | -20ºC~+50ºC±10% | ||||||
Working humidity | 10% ~ 90% | ||||||
MTBF | 10,000 hours | ||||||
Frame Frequency | 50/60Hz | ||||||
Refresh Frequency | >2000Hz | ||||||
IP grade | IP31 | ||||||
Effective Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; | ||||||
Distance(without relay) | Single-mode optic fiber: 10KM | ||||||
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | ||||||
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.
1. All the products purchased from ANWELL company carries one year free replacements and product life supports.
A: Two years warranty period, including one year free replacement warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.
3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.
4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.
5. Special offers available for preferred clients.
