Specifications
Brand Name :
ANWELL
Model Number :
AN-PX2.976/3.91/4.81/5/6
Certification :
CE, RoHS, CCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P, Western Union
Delivery Time :
7 business days
Packaging Details :
Wooden case package
Product name :
P4 P5 P6 Outdoor Mobile Full Color Display Screen
LED Screen :
Waterproof, Shake-Proof, High Brightness
Pixel pitch :
4mm 5mm 6mm
Panel Size: :
576*576mm
Drive IC :
MBI5124 IC ICN2038S
Screen Brightness :
4500-6500CD/1M2
LED lamp :
NATIONSTAR SMD2727 LED lamp
Certificate: :
CE ROHS EMC SASO IP65 FCC
Module size: :
192*192 mm
Panel pixels :
32*32 pixles
Mtbf :
8000hours, 7X24 work
Refresh ratio :
1920-3840Hz
Delivery time :
7-14 business days
Warranty period :
2 full years
Description

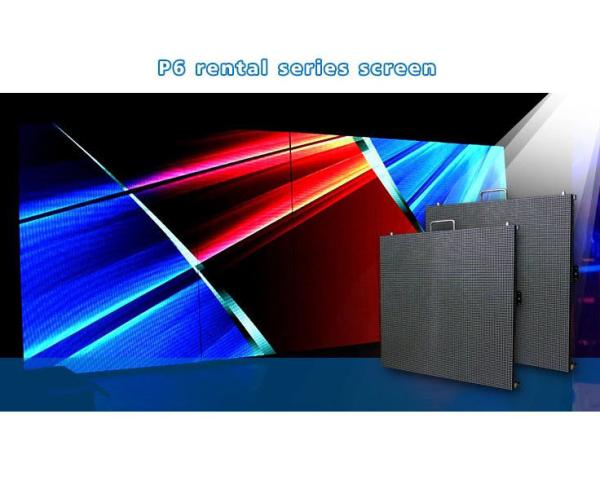

High Quality P6 HD Outdoor Stage Background Concert Rental LED Display Screen

P2.976/3.91/4.81/5/6.25 rental series outdoor LED screen has been our mature product line for years. It works well and has got much great market acceptance

1.High Ingress protection:IP65/IP54(front/rear).
2.Equipped with exclusive quick assembly components for easy large screen assembly

3.High resolution could guarantee superior performance even with small screen size.

4.Seamless splicing :Give you a better visual experience.

5.Support a series of detection functions, for example detection of cables failure, detection whether the door of cabinets closed or not, fans` speed monitoring, three-way voltage monitoring and temperature monitoring etc.

6.Compatible with front and rear maintenance mode, optional for pre-magnetic maintenance and post-screw maintenanceSelf-locking connection for second speed installation


Applications

* Business Organizations:
Supermarket, large-scale shopping malls, star-rated hotels, travel agencies

* Financial Organizations:
Banks, insurance companies, post offices, hospital, schools

* Public Places:
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms

* Entertainments:
Movie theaters, clubs, stages

Packaging&Shipping
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 7-15 working days after confirm receipt payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.

Technical Specification:

Specification P6 outdoor led screen
Module Parameters Pixel Pitch 6mm
Module Resolution 32*32 dots
Module Size 192*192 mm
Pixel configuration 1R1G1B
Module Chip San’an
Driving Method 1/8s
Physical Density 27,777 dots/m2
LED Encapsulation SMD3535
Module Port HUB75
Module Consumption ≤36W
Brightness 6000 cd/m2
Cabinet Parameters Cabinet Dimension 576*576*62mm
Cabinet Resolution 96*96 dots
Quantities of module 9 pcs
Cabinet Material Die-casting Aluminum Cabinet
Cabinet Weight 11kg
Remarks: outdoor P6 led screen can made by waterproof cabinet
Screen Parameters Option Distance 6~20m
Viewing Angle Horizal 160°, Vertical 120°
Max. Power consumption 850W/m2
Frame Frequency ≥60 Hz
Refresh Frequency ≥1500Hz
Working Environment Temperature -10℃~60℃
Humidity 10%~70%
Display Working Voltage AC46~54HZ, 220V±10%/110V±10%
Colour temperature 8500K-11500K
Communication distance Network cable: 100m, Multi-model: 500m, Single-model fiber: 20km
Input signal DVI/VGA,S-Video, RGBHV, HDTV, etc.


Supply Ability

Supply Ability: 1100+SQM per Month.

Packaging & Delivery

Packaging Details
LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
Port
SHENZHEN CHINA
LOGO
Acceptable
Lead Time :
Quantity(Square Meters) 1 - 100 >100
Est. Time(days) 25 To be negotiated

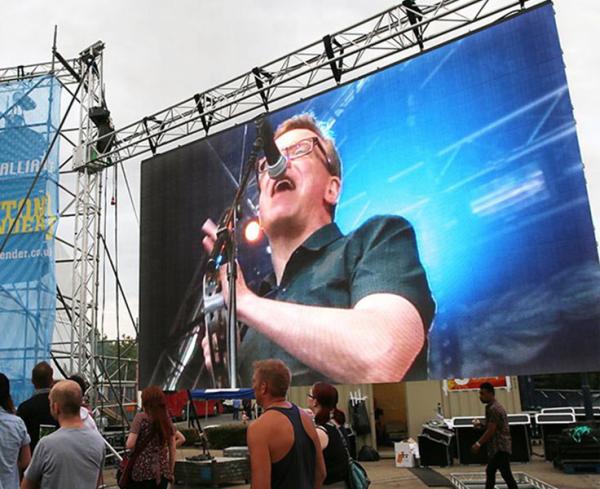

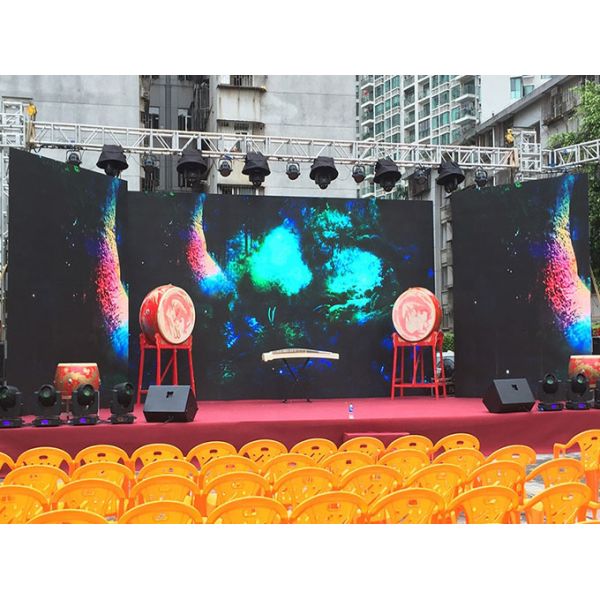

Real products and projects overview

Outdoor Indoor Rental High Resolutions P2.6 P4.81 Advertising Media Display Screen

OUR SERVICE:

PRE-PRODUCING:

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design

IN PRODUCING:

1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients

AFTER SERVICE:
1. 2 years free maintenance
2. 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service
