Specifications
Brand Name :
ANWELL
Model Number :
AN-PX-2.0/2.5/3.0/4.0
Certification :
CE, RoHS, CCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P, D/A, Western Union
Delivery Time :
7 business days
Packaging Details :
Wooden case and flight case package
Product name :
Indoor P5 LED display module
Panel Size: :
320*160mm
Pixel density: :
40000dots/m2
Application :
Indoor advertising cost effective visual solution
Color :
16.7M display color
Grey scale :
256 levels
LED type: :
Nation Star/Kinglight SMD2727
IP resistance :
IP65 water resistance
Drive IC :
MBI5124IC 2038S
Refresh ratio :
1920-3840Hz
Frame Rate :
60Hz/S
Bightness CD/Sqm :
4500-6500CD
Delivery time :
7-14 business days
Origin :
Shenzhen China
Description

P5 LED Panel Screen Indoor Outdoor Advertising Video Wall Indoor LED Display Module

1. High and adjustable led brightness can meet the demands of the changing requirement of customer in different environments.

2. No mosaic display due to excellent flatness and nice uniformity of light-emitting.

3. Wide viewing angle and the horizontal angle can reach 120°m. The images display effect will not Change largely in the range.

4. Virtual pixel display screen can be adopted for led display panels screenss to increase the resolution up to four times of real pixel, making the images softer and vivider.

Our advantages
1, Slim and light , zero maintenance, zero noise.
2, High density , high contrast, high brightness , high ash and high brush.
3, High precision, seamless stitching, wide viewing angle, low power consumption, long life span, the picture is real and natural.
4, Can able to display any computer information,figures,pictures and 2 and 3D animation, it possesses abundant play mode, display moving information, and with large capacity in store data information.
5, Fitted for advertising, television,applied to monitor the command, advertising, television, senior frequency conference, cinema, shopping malls and other venues. The broadcast system has multimedia software,can flexibly input and play different information, can able to play text information.

Technical Specification:

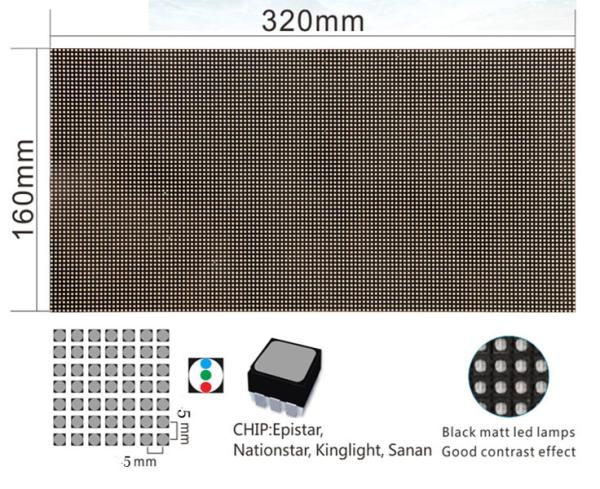

1 Pixel Pitch 5mm
2 Pixel Configuration 1R1G1B
3 Module Resolution 32 x 32 pixels
4 Module Pixles 1024 pixels
5 Module Size 320mm X 160mm
Cabinet Specification
1 Cabinet Size(W X H X D) 960mm x 960mm x 100mm
2 Cabinet Resolution(dot) 192 x 192 pixels
3 Module Quanity (pcs) 36pcs
4 Cabinet Pixels 36864 pixels
5 Pixel Density 40000 pixels/m2
6 Cabinet Materials Iron
7 Cabinet Weight 31.5 kg per cabinet
8 Packaging Wooden case
9 Fly Case Size 105*45*115CM ( one case for five cabinets )/ 88 kg
Whole Screen Specification
1 Screen Brightness ≥1000cd/m2
2 Driving Method 1/16 Scan
3 Best Viewing Distance 5m - 40m
4 Max. Power Consumption 600W/m2
5 Average Power Consumption 180W/m2
6 Gray Level 65536 levels(16 bit )
7 Display Color 16M
8 Frame Frequency ≥60Hz
9 Refresh Frequency ≥1920Hz
10 Uninterrupted Working Hours ≥72 hours
11 Screen Life-span ≥100,000 hours
12 MTBF ≥5,000 hours
13 Discrete Blind Spot Rate <1/10000
14 Continuous Blind Spot Rate None
15 Blind Spot Rate <1/10000
16 Protective Scale For indoor use only
17 Screen Plainness <±1mm
18 Power Supply Mode AC220±10% 50Hz/AC110±10% 60Hz
19 Environment Temperature & Humidity Temperature:-20 Celsius~+60 Celsius
Humidity:10%~90% RH
20 Control Mode Synchronous display with control PC by DVI
21 Control System Linsn, Novastar or as you required.
22 Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
23 Interface Standard Ethernet
24 Transmission Distance Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
25 Certificate CE, ROHS, FCC


Supply Ability

Supply Ability: 1100 Square Meter/Square Meters per Month.

Packaging & Delivery

Packaging Details
LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
Port
SHENZHEN CHINA
LOGO
Acceptable
Lead Time :
Quantity(Square Meters) 1 - 100 >100
Est. Time(days) 25 To be negotiated

LED display proejcts

Outdoor P5 Full Color Led Display Module 320x160mm Nationstar Kinglight

Warranty Terms

ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.

1. All the products purchased from ANWELL company carries one year free replacements and product life supports.

A: Two years warranty period, including one year free replacement warranty period..

B: Product life supports and free project design.

2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.

3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.

4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.

5. Special offers available for preferred clients.
