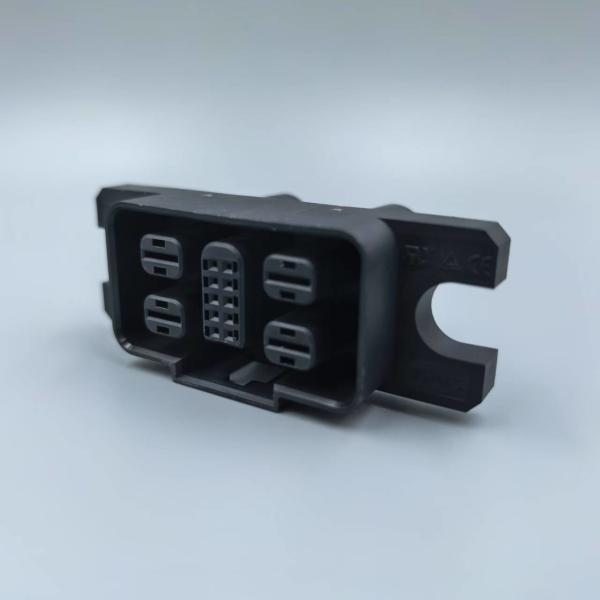

IEC 61984 EN 61984 Energy Storage Hybrid Connector 40A 14 Pin Male
IEC 61984 EN 61984 Energy Storage Hybrid Connector 40A 14 Pin Male
IEC 61984 EN 61984 Energy Storage Hybrid Connector 40A 14 Pin Male
IEC 61984 EN 61984 Energy Storage Hybrid Connector 40A 14 Pin Male
IEC 61984 EN 61984 Energy Storage Hybrid Connector 40A 14 Pin Male
IEC 61984 EN 61984 Energy Storage Hybrid Connector 40A 14 Pin Male
Specifications
Brand Name :
JIAHUA ELECTRONICS
Place of Origin :
China
Model Number :
PHM-14M050B-001
Product Name :
Energy Storage Hybrid Connector 40A 14Pin Male
UL Approval :
UL 4128
Product Qualification :
IEC 61984 / EN 61984
Operation Current :
25~40A(Power);3A(Signal)
Material :
Nylon/alloy copper
Insulation Voltage :
1000VDC(Power Pin);120 VDC(Signal Pin)
Rated Voltage :
4250 VDC(Power Pin);1000 VDC(Signal Pin)
Insulation Resistance :
>500 MQ(Power Pin);>100 MQ(Signal Pin)
Operating Temperature (Max)  :
-40 ℃～125℃
Part Number :
PHM-14M050B-001
Price :
negotiable
Packaging Details :
carton box
Payment Terms :
Western Union, MoneyGram, T/T
Description

Energy Storage Hybrid Connector 40A 14Pin Male

1 . Descriptions:

The Energy Storage Hybrid Connector 40A 14Pin provides users with high-performance and highly reliable power connection solutions for their systems. The PHM series is an integrated product of power and signal, with a single core up to 150A, and can provide up to 5 cores of power and 10 cores of signal simultaneously. The PHM adopts mature automotive terminals, and its reliability has been tested in the market; At the same time, PHM provides customers with a floating design, ensuring that during the installation process, the connector can fully eliminate stress caused by errors between devices during device connection.

2 . Specifications:

Name

Energy Storage Hybrid Connector 40A 14Pin Male

UL Approval

UL 4128

Product Qualification

IEC 61984 / EN 61984

Operation Current

25~40A(Power);3A(Signal)

Insulation Voltage

1000VDC(Power Pin);120 VDC(Signal Pin)

Rated Voltage

4250 VDC(Power Pin);1000 VDC(Signal Pin)

Insulation Resistance

>500 MQ(Power Pin);>100 MQ(Signal Pin)

Material

Nylon/alloy copper

Operating Temperature

-40℃~125℃

3 . Product Dimensions:

40A Module

Male Parameter

IEC 61984 EN 61984 Energy Storage Hybrid Connector 40A 14 Pin Male

Receptacle Parameter

IEC 61984 EN 61984 Energy Storage Hybrid Connector 40A 14 Pin Male

Male and Female Mating Parameter

IEC 61984 EN 61984 Energy Storage Hybrid Connector 40A 14 Pin Male

4 . Advantage:

Integrated Power and Signal Design

Innovative all-in-one design significantly reduces space usage and enhances system integration.

Safe and Durable

Fully compliant with EN61984 and UL4128 standards, ensuring exceptional safety and long-term reliability.

Proven Reliability

Equipped with automotive-grade high-voltage terminals and advanced crimping technology, delivering stable and dependable performance.

Low Loss, High Efficiency

Outstanding low-temperature rise design minimizes energy consumption, providing a more efficient solution for your system.
