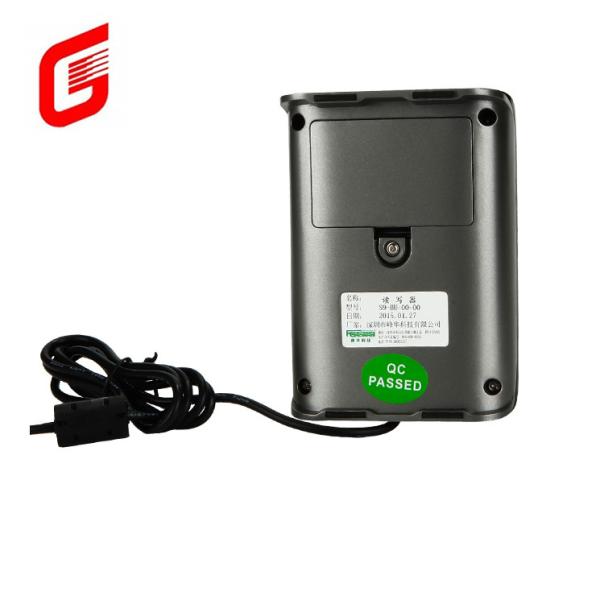

External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
Specifications
Brand Name :
GS
Model Number :
S9
Type :
Other Type
Interface :
usb, RS232/USB (Plug and Play)
Card Slots :
All in 1 / Multi in 1
Installation :
External
Place of Origin :
Chongqing, China
Material :
ABS, Plastic
contactless card :
ISO14443 TypeA/B,ISO15693 standard
contact card :
ISO7816 logic encryption IC cards and the CPU card(T=0,1)
Security :
can add 3 GSM11.11SAM card slots
Antenna :
Built-in antenna
Case Material :
ABS plastic
Operating Frequency :
13.56MHz
Operating voltage :
DC5V ± 10%
Operating temperature :
-20 ℃ ~ 60 ℃
Packaging Details :
1pcs/box,20pcs/carton
Port :
ChongQing/Shanghai / Shenzhen / Hong Kong
Supply Ability :
20000 Piece/Pieces per Month
Price :
$45.00/pieces 1-49 pieces
Description
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
1.1 Overview
 S9 series Dual-Interface Smart Card Reader Writer can support both contact and contactless smart cards, with one slot for smart card of ISO7816 Size and Maximum 3 slots for SAM card of GSM11.11 size. With multi-slots structure, the reader can meet the higher level of security in smart card
application. It connects to PC or related devices via RS232 Serial port or USB (PNP, plug and play) port which brings more convenience to customers whether in installation or operation of the reader. And there will be a CD for SDK (Software Development Kits) along with the reader which includes the
USB Drivers and Examples for various development platforms, and customers can use the DEMO.exe program to do the testing for rfid card and reader.
S9 Reader is essential front-end processing equipment for IC card applications and system integration. Owning rich and useful interfaces and functions, the reader can be easily applied to many fields such as industry and commerce, telecommunications, postal services, taxation, banking, insurance, medical, meeting attendance, Internet cafe management, gas stations, parking lots and other smart card application programs for charges, stored value and query.
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
1.2 Features
Card type supported:
—contactless card:ISO14443 TypeA/B,ISO15693 standard
—contact card: ISO7816 logic encryption IC cards and the CPU card(T=0,1)
Security: can add 3 GSM11.11SAM card slots
Interface: RS232/USB (Plug and Play)
Antenna: Built-in antenna
Case Material: ABS plastic
Operating Frequency: 13.56MHz
Operating voltage:DC5V ± 10%
Communication speed between Card and equipment: 106Kbit
Operating temperature: -20 ℃ ~ 60 ℃
Standards followed: ISO14443 TypeA/B,ISO15693, ISO7816,GSM11.11, FCC, CE
Programming languages: a variety of programming languages available, with luxuriant Examples (refer to "1.5 Software" for more information)
OS: Windows 98, Me, 2K, XP, 2003, Vista ,Unix and Linux
Memory of reader: the standard internalmemory of reader is 2K bytes (can be expanded upon customers’ requirements)
Status display: LED lights, indicating power or the state of communication, user controllablebuzzer
Connection cable: length 1.5M, can choose serial K Line or usb cable
Dimensions(L*W*H):123 * 95 * 27 mm
NW/GW: about 143g / 345g
External Installation S9 Multi-card Compatible Smart Card Reader with ABS Plastic Case
1.3 Device Interface
COM or USB S9 Reader
DC5V Power (Built-in antenna) RF card
RS232 Serial Interface or USB been used for communicating with PC.

1.4 Reader Packing List
Contains: Reader, Communication cable, CD for driver, and Warranty Card.

1.5 Typical Application
E-passports / Internet banking and online shopping / network access and
access control systems / digital signature / customer bonus plan / stored value
/ Identification / e-ticket / parking lots/ Member payment / Time attendance /
vending machine.
