Specifications
Private Mold :
NO
Brand Name :
GS
Model Number :
CC-18
Type :
handhold
Interface :
usb
Card Slots :
Single
Installation :
External
Place of Origin :
Chongqing, China
Material :
ABS, ABS
Lanuage :
Chinese/English
Charging interface :
USB
Count speed :
800 cards per second
The size of the equipment :
165mmX75mmX44mm
Count fast :
800 cards per second
CARD Type :
Transparent/PVC/plastic card

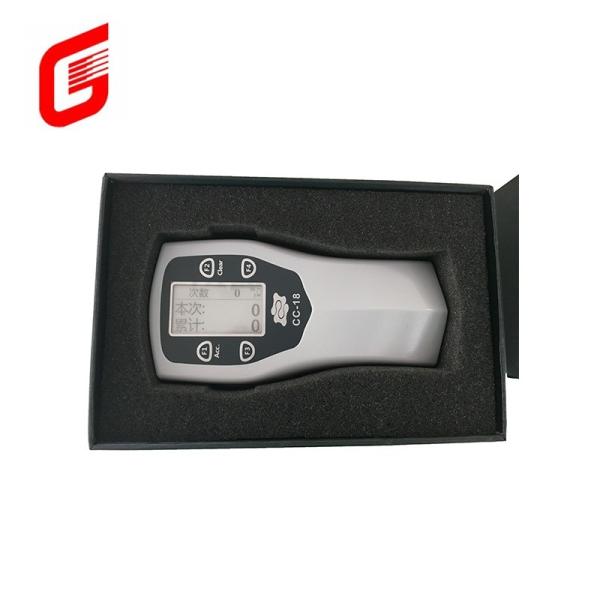

Package :
Blister +paper Card
Quality :
100% Tested
Name :
Automatic Handheld Portable Card Counter for Transparent Card
Price :
$590.00/pieces 1-99 pieces
Description
Single Card Slots CC-18 Portable Automatic Handheld Card Counter for Transparent Cards
Single Card Slots CC-18 Portable Automatic Handheld Card Counter for Transparent Cards
Count fast
800 cards per second
Count accurately
has self checking function;
Display panel
for displaying various kinds of state data and tips;
Sensors
sensor window
Single Card Slots CC-18 Portable Automatic Handheld Card Counter for Transparent Cards

1. GENERAL DESCRIPTION

This equipment is used for hand-held tools for automatic counting cards. It mainly used in the occasion that should count a large number of cards. For example, card printing department of bank, branch of bank, all kinds of department for certificate card issued, all kinds of membership card issued, card manufacturers, transportation management etc..
The size of the equipment: 165 mm*75 mm*44 mm (the maximize length of each direction).
Single Card Slots CC-18 Portable Automatic Handheld Card Counter for Transparent Cards

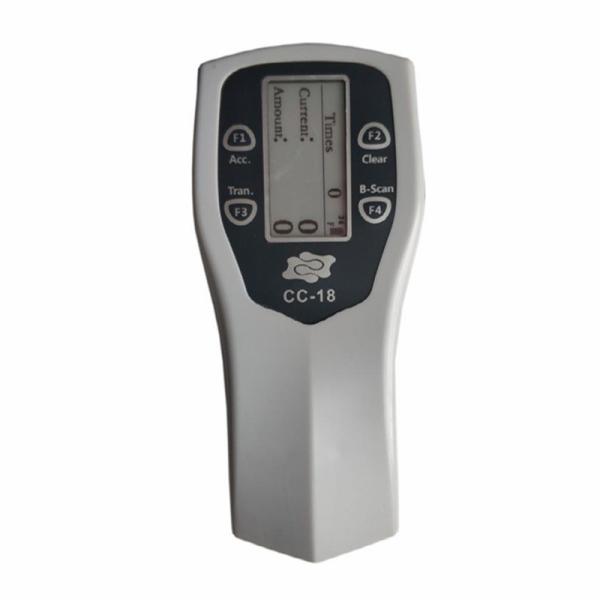

Schematic diagram of components

(1) Display panel: for displaying various kinds of state data and tips;
(2) Key for scan: boot and card counting the start button; Refresh button: Refresh screen
(3) Combination key: Function switching integration
(4) Charging interface: the standard Micro USB interface, used for charging machine;
(5) Sensors: sensor window.
(6) Battery cover: the need to replace the battery can open this cover to replace;

2. FEATURES

* Count fast, 800 cards per second;
* Count accurately,has self checking function;
* Built-in-rechargeable lithium battery 3.7 V/1780 mAH, more than 6000 times counting after full charge;
* Universal charging interface (Micro USB);
* Choosable accumulation mode function;
* Chinese or English interface options;
* Side scan button design, also suitable for left, right-handed people use;
* Detailed status information display, easy to

3. HOW TO USE

1) Power on
The machine when the user stops operation after 2 minutes will automatically shut down to reduce battery consumption, will automatically save the current data and state before the shutdown. When in use, click the SCAN key, it boot back to before the shutdown state and display the corresponding data.
Single Card Slots CC-18 Portable Automatic Handheld Card Counter for Transparent Cards
The flag "∑" on left-top corner indicates that current is accumulated state, "36" indicates the current number of card has 36.The upper right corner of the battery icon to display the battery state. Two numbers below are last counting number and cumulative number.
2) Counting
In power on state, press the SCAN key enter counting status (The CC-18 will return to power on state after 8 seconds without further operation), place the CC-18 on the cards tightly, keep the sensors out of cards and uniform speed sliding, make the two sensors passing the cards completely. If done right, a "tick" sound will be heard and a number will be shown, otherwise, twice "tick" and the error message shown, the user needs to operate again.
Single Card Slots CC-18 Portable Automatic Handheld Card Counter for Transparent Cards
3) Working mode
The ACC key (F1)can switch the states between accumulation or not. The upper left "∑" logo will appear or not to indicate the state.
4) Clear data
Press Clr key(F2) to clear the current number, and keep more than 5 seconds to clear cumulative number.
5) Language
According to actual needs, you can select the prompt as Chinese or English, press (F3) and (F4) at the same time and release will finish this operation.
6) State
In order to facilitate maintenance and recognition, the machine can query software version, serial number and various kinds of state data at any time. The specific operation is pressing (F2) and (SCAN key) at the same time, then were released, it will display a screen state information, wherein the first line is the software version and serial number, there are 4 rows of small numbers on the need to be provided to the manufacturer to determine the status of equipment.
7) Charging
For ease of use, the CC-18 adopts a rechargeable lithium battery powered, when low battery , charging it via Micro USB by the attach charger . Reset the device by (double C).
8) To replace the battery
Battery is the consumption of accessories, in times of charge after failure, you can unscrew the (Battery cover) to replace the battery.
9) Switching the left hand mode or the right hand mode
In the right hand mode only long click (A) ,switching left hand mode.
In the left hand mode only long click (B) ,switching right hand mode.
Single Card Slots CC-18 Portable Automatic Handheld Card Counter for Transparent Cards

4. NOTICE

1) The CC-18 will automatically shut down in case of power is too low, or count is not accurate, then please charge to use;
2) Cards with thickness less than 0.3mm may be difficult to count, in this case, reduce the total cards in one single count and slow scanning speed can get a good result;
3) Don't mixed different kinds of cards in one single count ;
4) For cards with embossed, place them evenly ;
5) Don't strike anything using CC-18;
6) Please packing the CC-18 after using.
