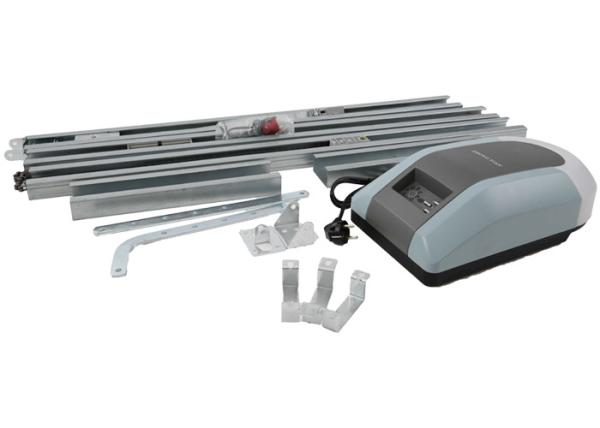

24V DC remote control chain drive smartphone garage door opener

Specifications

chain drive overhead garage door opener
power:100W.Force:600N
soft start&stop,chain drive
apply door area:12 sqm
CE&ROHS

Functions:

1. Debugging features

Install and debug garage door opener simply.setting and debugging can be done on the opener cover

2. Remote operation

Apply 433.92MHZ rolling code remote control,self-lock function when closing the door,which will ensure the safety of your property. code simply

3. Driving mode

Chain drive,apply advance flexible starting and stopping technique, starting and stopping force is 120mm/s,there is 15cm slowly movement when starting and stopping, so as to decrease the force to the door.

4. Limit mode

Electronic limit,and the limit will not change even the power off,

5. Obstruct-return function

Door will rise up to the culminating point if obstructed during the process of falling,and will stop automatically if obstructed during the process of rising,which will ensure the safety of you and your car as well as your family members.

6. Lighting function

Automatic lighting when starting and stopping,using 220V/25W bulb lighting,the lamp will be lighted for 3 minutes.

7. Infrared protection function

When door is closed in the process of falling,it will stop immediately and move upwards in case a man or object shelters the infrared beam.

8. Electrical storage device

Door will be used for 48 hours when power off,and door can be started and stopped 10-15times.

9. Automatic closing function

The automatic closing can be set, it is within 3 minutes.

10. You can use manual switch to open and close the door.

800N Automatic garage door

.....................................................................................................................................

Technical parameters:

.....................................................................................................................................

Select parts:

1. photocell

2. manual switch

3. battery

4. external receiver

5. wall trailer for remote control

.....................................................................................................................................
