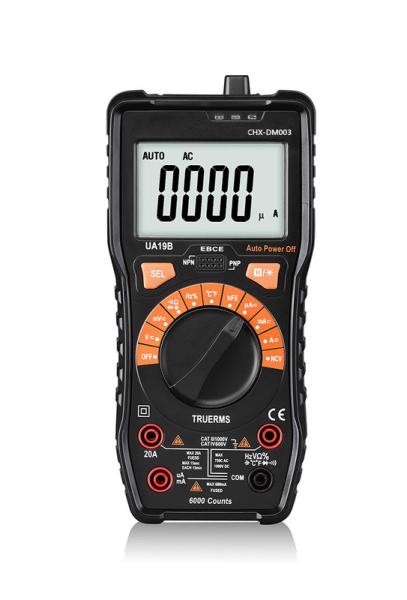

20A 1000V Autoranging Digital Multimeter 60MΩ with LED torch
Non-Contact Voltage Tester 12-1000V AC Voltage Detector Test Pen Circuit Tester Tool
Description:
- Universal anti-shock protection
- Prevent misuse of instruments
1.1.2 After receiving the instrument, check if it is damaged during transport.
1.1.3 in the rough conditions of preservation, shipment, check and confirm whether the instrument is damaged.
1.1.4 The pen must be in good condition. Before use, check whether the insulation of the test leads is damaged and the wires of the wires are
exposed.
1.1.5 Use the table provided with the table to ensure safety, if necessary, must use the same or the same level of the pen to replace.
Specification:
Applied Standard | IEC1010-I CAT.100V | ||
Function | Range | Accuracy | |
DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+3) | |
AC Voltage | 600mV/6V/60V/600V/750V | ±(0.8%+3) | |
DC Current | 60uA/600uA/6000uA/60mA/600mA/20A | ±(0.8%+3) | |
AC Current | 60uA/600uA/6000uA/60mA/600mA/20A | ±(1.0%+5) | |
Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) | |
Frequency | 10MHz | ±(1.0%+3) | |
Capacitance | 100mF | ±(4%+3) | |
Temperature | -50℃-1000℃/-58℉-1832℉ | ±(1.0%+4) | |
Duty Ration | 0.1%--99.9% | ±3% | |
Special Reature | |||
NCV | ✓ | Overload Protection | ✓ |
True-RMS | ✓ | Auto Power Off | ✓ |
Diode Test | ✓ | Back Light | ✓ |
HEF/Transistor | ✓ | Backlight Function | ✓ |
LED Torch | ✓ | On-off Buzzer | ✓ |
Low Battery Display | ✓ | Data Hold | ✓ |
Display | 5999 | ||
Size: | 190×90×50mm | Packing Size | 215*160*60mm |
N.W. | about 380g | G.W. | About 0.75kg |
