Data keep / Auto power off Infrared Themometer Input impedance 10MW

Description

- The instrument is an professional measuring instrument with liquid crystal display and a back light source. The user readings in easily. Single hand operation with overload protection and low battery indicator. For professional, factory, school, lovers or family use, is an ideal Multi-function instrument.
- Automatic range
- Data keep
- Auto power off
- Relative measurement

Overview

 Automatic measurement and manual measurement
 Overload protection
 The maximum voltage allowed between the measuring terminal and earth:600V DC or 600V AC
 Display:LCD
 Maximum:1999 display
 Polar indication:Automatic indicator,‘-’,Display negative
 Over range display:‘0L’ or ‘-0L’.
 Sampling time: about 3 times / sec
 Display unit and power display
 Automatic power off:15Minutes
 Open Jaw is 25mm; test Line OD less than23mm
 Battery type:1.5V AAA
 Battery voltage indication: LCD Symbol
 Temperature coefficient:less 0.1
 operating temperature:18℃ ～ 28℃
 Storage temperature:-10℃ ～ 50℃

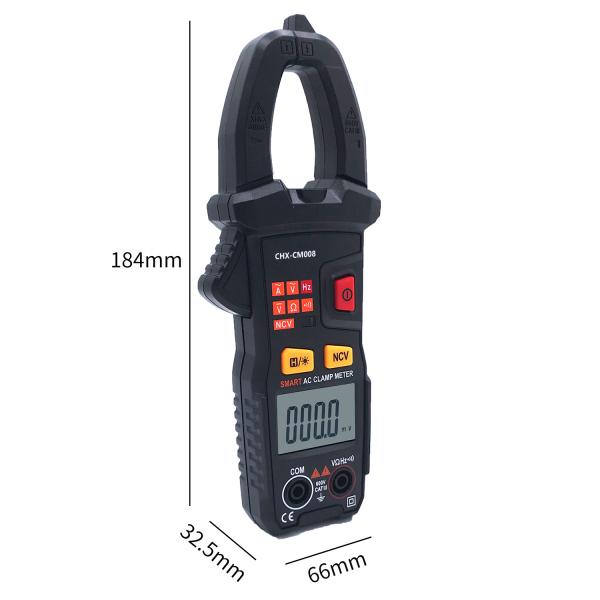

 Size:184.0×66.0×32.5mm
 Weight:about 190g(Including battery)

3.2.1 AC Current

- Max input:400A AC

- Frequency:50Hz

- When ac current is measured, the meter automatically opens an internal low-pass filter to filter out high-frequency current.

3.2.2 DC voltage

- Input impedance:10MW

- Maximum/ input voltage:600V AC (Effective value)OR 600V DC

3.2.4 AC voltage

- Input impedance:10MW

- Maximum/ input voltage:600V AC (Effective value)or 600V DC

In the small voltage range, the meter pen is not connected to the measured circuit, the meter may have jumping reading, this is normal, because of the high sensitivity of the meter, does not affect the actual measurement results

3.2.5 Resistance

- open-circuit voltage:About 0.4V

- Overload protection:600V DC or AC(Effective value)

Part name

⑴ Current clamp head: For current measurement
⑵ The torch of head lamp
⑶ Panel
⑷ NCV and alarm
⑸ Function selection(FUN)
⑹ LCD Monitor
⑺ Common socket
(8) Resistor, voltage, frequency and Continuity input jack
(9) Min and Max value (MAX/MIN)
(10) Reading / backlight button
(11) Function change button
(12) NCV zone
