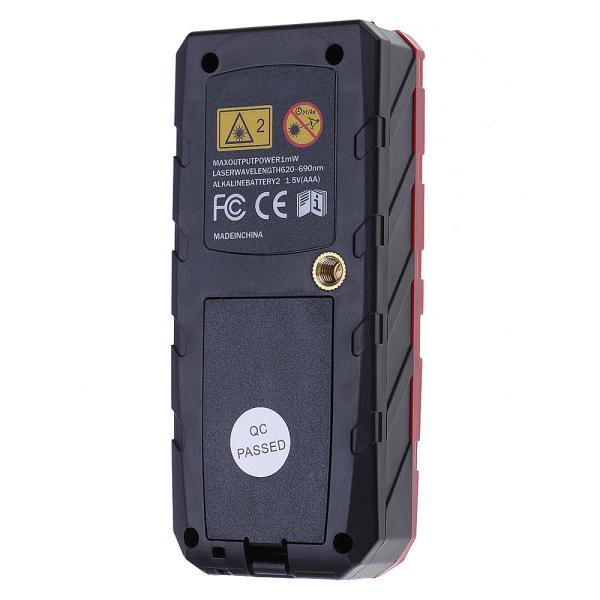

690nm Laser Distance Measuring Equipment , 50m Hand Held Laser Range Finder
690nm Laser Distance Measuring Equipment , 50m Hand Held Laser Range Finder
Specifications
Brand Name :
CHX
Model Number :
CHX-DT001
Certification :
CE, RoHS
Place of Origin :
CHINA
MOQ :
10pc
Price :
Negotiation
Payment Terms :
T/T, Western Union，Paypal,L/C
Supply Ability :
50000pcs/month
Delivery Time :
5-35days
Packaging Details :
1pcs/gift box, 30~50pcs/ctn
Measuring Accuracy :
±1.5mm
Measuring Unit :
m,ft,in
Laser type :
620~690nm
Laser Class :
Ⅱclass,<1mW
Single Measurement Time :
0.25s
Dimensions(LxW×H) :
115X50X23mm
Weight :
Approximately 82g
Description

Laser Measuring Equipment Fiber Laser Distance Meter Tester 50m Rangefinders

Introduction

Firstly thank you for your choice on our handheld laser distance meter.

Please carefully read the safety instructions and the user manual before using this product, otherwise it may result in hazardous laser radiation and electric shock. The person responsible for the equipment must ensure that all users understand these directions and adhere to them.

Basic Functions

Single Measurement √
Max. / Min. Measurement √
Continuous Measurement √
Area / Volume / Pythagoras √
Plus and Minus √
Meter/Ft/ln Switch √
Measuring Reference √
Buzzer Indicator √
Historical Data Records 99Groups
Data Clean up √
Error Message Code √
Battery Indicator √
Digital Level (angle measuring) √
Laser Auto. Switch off 30s
Instrument Auto. Switch off 180s

Technical Parameters:

Measuring Range 0.05m~40m
0.05m~60m
0.05m~80m
0.05m~100m
0.05m~120m
0.05m~150m
Measuring Accuracy ±1.5mm
Measuring Unit m,ft,in
Laser type 620~690nm
Laser Class Ⅱclass,<1mW
Single Measurement Time 0.25s
Operating Temperature 0~+40 ℃
Storage Temperature -20~+65℃
Batteries AAA(Alkaline), 2x1.5V
Measurements Per Battery Set >8000
Weight (Without Batteries) Approximately 82g
Dimensions(LxW×H) 115X50X23mm

Caution:


1. Please avoid kids to use the meter.
2. Do not open the meter without allow from professional person.
3. Please keep the manual, it is useful when you use it.

Unpacking inspection

1, Mainframe one unit
2,User manual one piece
3.AAA battery(2*1.5V) two pieces
4,holding rope one piece

Comment:


*The deviation occurs under unfavorable conditions such as bright sunlight or when measuring too poorly reflecting or very rough surfaces, the environment temperature is too high or too low.

* When measuring distance within 10m, measurement accuracy is±1.5mm; more than 10m, measurement accuracy is calculated as follows:±1.5mm±0.05*(D-10)(D: Measuring Distance, Unit: m)

Forbidden


1. Opening the equipment by using tools (screwdrivers,etc.) without allow.

2. Measuring to sun.
3. Others measuring out of appointed range.

4. Immersing the equipment in water.
5. Cleaning the lens using alcohol or any other organic solvent.

6. Wiping the lens directly with fingers or other rough surfaces.

7. Powering the equipment beyond the rated DC voltage.
