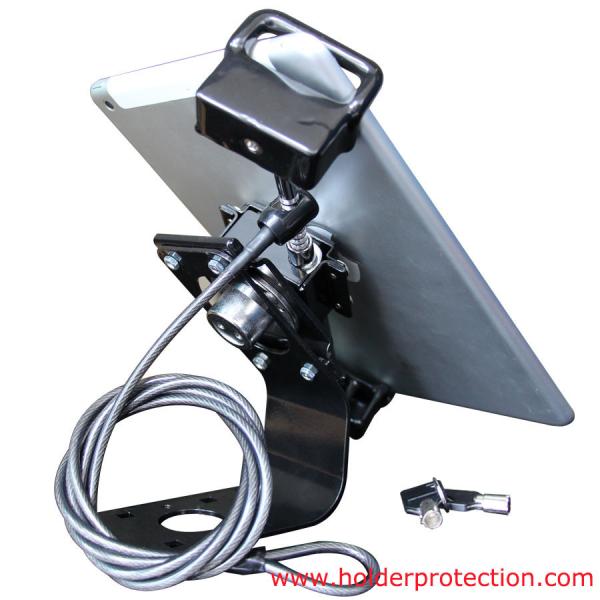

Metal anti-theft lock tablet security display device

The Tablet Display Stand is the latest in display security for tablets. The Tablet Display Stand (along with the Core) is the easiest and most effective way to help display and protect a wide of tablets. Congratulations on your purchase of the Tablet Display Stand.

Technical parameter

Unit list

Detailed pictures

Operation manual
-Allows for 90 degree rotation
-Strong Theft Deterrent
-Lightweight and versatile design
-Adaptable between two Core sizes
-Easily fastens to table-tops and display fixtures

We recommend you take a few minutes to follow the STEP-BY-STEP installations below to ensure proper installation of the Tablet Display Stand.
Tablet Display Stand Assembly:
STEP 1- Slide Core foam insert along tube to allow insertion into lock box assembly. (A)
SETP 2- Remove cover plate and position Core as shown. (B)
SETP 3- Replace the cover plate to secure Core onto stand. (C)
SETP 4- Using the security key provided, remove the locating bar. (D)

STEP 5- Attaching the cable to the Core. Wrap the cable around a secure and stationary object; then loop the cable into itself. Slide the fitted Cable end over the locating bar of the Core.
STEP 6- Insert the locating bar into the Core as shown.
STEP 7- Insert the table and engage the arms of the Core until they fit firmly around the tablet. (Ensure table is supported at all times during this process.)
STEP 8- The rotational head can be adjusted to improve table alignment. Loosening the rotational head screws will allow adjustments to be made. Removing the two screws from the back of the rotational head (Figure A) will allow the tablet to rotate 360 degrees (Figure B).

STEP 9- Rotate tablet to find the best location for display (see Figure A). To lock that position, reinsert the screws into back threaded locations (see Figure B). Do not over tighten screws.

Please note that further position options are available by repositioning tablet 90 degrees within core and repeating Step 8 through 9.
Cable clamp has provided power cable management. When installed, allow sufficient cable length for rotation.

Non-rotational Option for Stand Assembly:
Remove the two screws from the back of the rotational head (see Figure A and B).
The tablet can rotate 360 degrees.
Rotate table to find the best location to display. Reinsert extended screw and washer as shown (Figure C and D) into the back threaded location. Do not over tighten screws.

Replace the second screw and insert into rotational head as shown. The Rotational assembly of stand is now fixed.

Installation is done, it is ready for your tablet display.
