76ZYT Series Brushed Dc Motor Manufacturer Factory Supplier O.D 76mm 0.4Nm 2600rpm
76ZYT Series Brushed Dc Motor Manufacturer Factory Supplier O.D 76mm 0.4Nm 2600rpm
76ZYT Series Brushed Dc Motor Manufacturer Factory Supplier O.D 76mm 0.4Nm 2600rpm
76ZYT Series Brushed Dc Motor Manufacturer Factory Supplier O.D 76mm 0.4Nm 2600rpm
76ZYT Series Brushed Dc Motor Manufacturer Factory Supplier O.D 76mm 0.4Nm 2600rpm
76ZYT Series Brushed Dc Motor Manufacturer Factory Supplier O.D 76mm 0.4Nm 2600rpm
76ZYT Series Brushed Dc Motor Manufacturer Factory Supplier O.D 76mm 0.4Nm 2600rpm
76ZYT Series Brushed Dc Motor Manufacturer Factory Supplier O.D 76mm 0.4Nm 2600rpm
76ZYT Series Brushed Dc Motor Manufacturer Factory Supplier O.D 76mm 0.4Nm 2600rpm
76ZYT Series Brushed Dc Motor Manufacturer Factory Supplier O.D 76mm 0.4Nm 2600rpm
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
76ZYT
Certification :
CE
Place of Origin :
Changzhou CHINA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
To be negotiated
MOQ :
50
Price :
To be negotiated
Delivery Time :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Warranty :
3years
Port :
Shanghai
Current :
customized for different power
Speed(RPM) :
2600rpm
Continuous Current(A) :
customed
Usage :
Car, Electric Bicycle, FAN, Home Appliance, Other
Type :
Brush Motor
Torque :
0.4N.m
Construction :
Permanent Magnet
Commutation :
Brushless
Protect Feature :
Drip-proof
Efficiency :
IE 1
Description

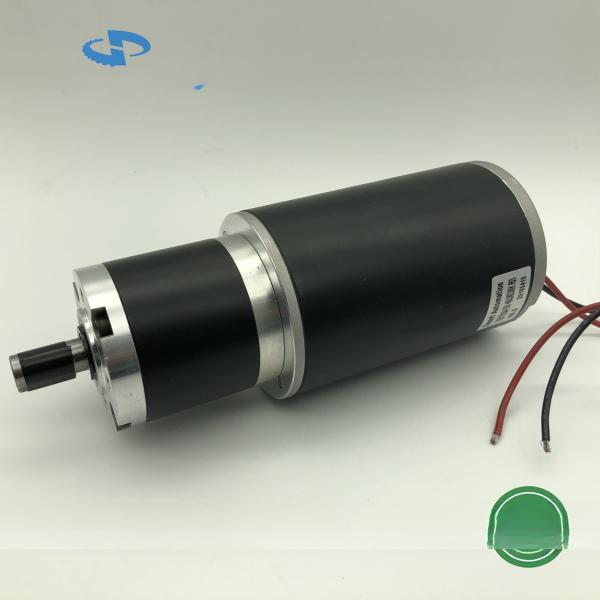

76ZYT Series Brushed Dc Motor

76ZYT Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP54

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation

Model Unit 76ZYT01A 76ZYT02A 76ZYT03A 76ZYT04A 76ZYT05A 76ZYT06A
Rated Voltage VDC 24v (option for 12v up to 220vdc)
No Load Speed Rpm 3900 3800 3800 3800 3800 3800
Rated Torque N.m 0.31 0.5 0.7 0.8 0.9 1
Rated Speed Rpm 3300 3200 3200 3200 3200 3200
Rated Current A 6 9.5 13 15 16.5 18
Output Power W 107 167 235 268 301 335
Weight Kg 1.5 2 2.5 2.8 3.05 3.3
Motor Length Mm 98 118 138 150 160 171

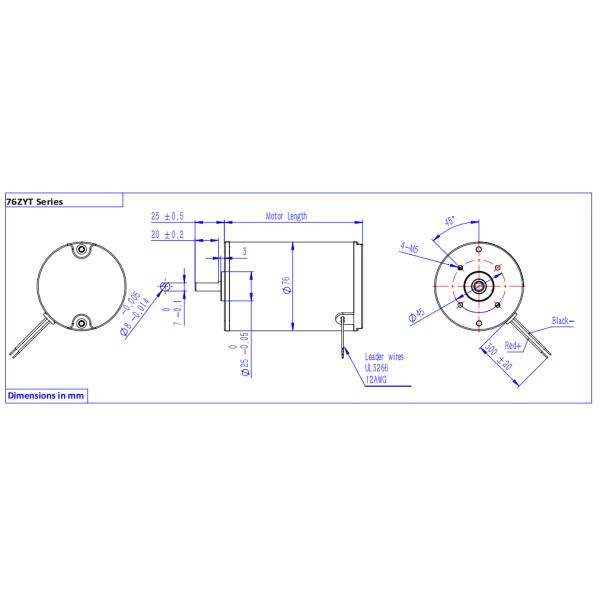

Drawing:

76ZYT Series Brushed Dc Motor Manufacturer Factory Supplier O.D 76mm 0.4Nm 2600rpm
