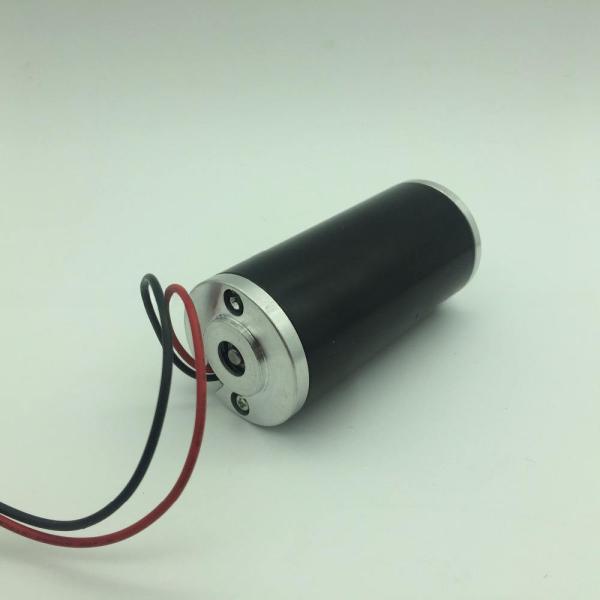

42ZYT04A O.D 42mm High Torque Carbon Brush DC Motor 12v 24v 25w 3350rpm 70mNm
42ZYT04A O.D 42mm High Torque Carbon Brush DC Motor 12v 24v 25w 3350rpm 70mNm
42ZYT04A O.D 42mm High Torque Carbon Brush DC Motor 12v 24v 25w 3350rpm 70mNm
42ZYT04A O.D 42mm High Torque Carbon Brush DC Motor 12v 24v 25w 3350rpm 70mNm
42ZYT04A O.D 42mm High Torque Carbon Brush DC Motor 12v 24v 25w 3350rpm 70mNm
42ZYT04A O.D 42mm High Torque Carbon Brush DC Motor 12v 24v 25w 3350rpm 70mNm
42ZYT04A O.D 42mm High Torque Carbon Brush DC Motor 12v 24v 25w 3350rpm 70mNm
42ZYT04A O.D 42mm High Torque Carbon Brush DC Motor 12v 24v 25w 3350rpm 70mNm
42ZYT04A O.D 42mm High Torque Carbon Brush DC Motor 12v 24v 25w 3350rpm 70mNm
42ZYT04A O.D 42mm High Torque Carbon Brush DC Motor 12v 24v 25w 3350rpm 70mNm
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
OEM
Certification :
CE
Place of Origin :
Changzhou CHINA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
To be negotiated
Warranty :
3years
Port :
Shanghai
Current / Phase :
1.68A
Speed(RPM) :
3350rpm
Continuous Current(A) :
customed
Usage :
Car, Electric Bicycle, FAN, Home Appliance, machine
Type :
Micro Motor
Torque :
70mNm
Construction :
Permanent Magnet
Commutation :
Brushless
Protect Feature :
Drip-proof
Efficiency :
IE 1
MOQ :
50
Price :
To be negotiated
Delivery Time :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Description

42ZYT04A O.D 42mm High Torque Carbon Brush Dc Motor 12v 24v 25w 3350rpm 70mNm

Motor technical parameter:

Shaft HRC 36~40 ; NMB ball bearing

Hard ferrit magnet, 2- poles

Protection class IP 50

Insulation class: F, operating temperature range:-40°C~+140°C

CE and ROHS certified

Options:

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection

High temperature Class H insulation

Model 42ZYT04A
Rated voltage V dc 12 24 40
Continuous rated speed rpm 3350 3350 3350
Continuous rated torque mN.m 70 70 70
Continuous current A 2.8 1.4 0.85
Starting torque mN.m 400 400 400
Starting current A 15.1 7.5 4.62
No load speed rpm 4000 4000 4000
No load current A 0.35 0.25 0.15
Demagnetization current A 24 10.5 6.3
Rotor inertia Gcm2 193 193 193
Weight of motor g 600 600 600
Motor length Mm 90 90 90
