O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
O.D 54mm 54zyt series Brushed Pittman 12v 24v 38v 48v dc Servo Motors, CE ROHS ISO9001
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
54ZYT
Certification :
CE
Place of Origin :
Changzhou CHINA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
To be negotiated
MOQ :
50
Price :
To be negotiated
Delivery Time :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Warranty :
3years
Port :
Shanghai
Current :
customed
Speed(RPM) :
customed
Continuous Current(A) :
customed
Usage :
BOAT, Car, FAN, Home Appliance, machine
Type :
Brush Motor
Torque :
customed
Construction :
Permanent Magnet
Commutation :
Brushless
Protect Feature :
Drip-proof
Efficiency :
IE 1
Description

O.D 54mm Brushed 24v Dc Motor equivalent 24 volt PITTMAN Servo Motors, OPTION 12v upto 60v

Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP40

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation

54ZYT Motor Main Technical Specification:

Model Unit 54ZYT01A 54ZYT02A 54ZYT03A 54ZYT04A
Rated Voltage VDC 24v (option for 12v up to 90vdc)
No Load Speed Rpm 3630 2990 3150 3160
Rated Torque N.m 0.184 0.219 0.261 0.353
Rated Speed Rpm 3200 2580 2770 2810
Rated Current A 3.5 3.3 4.3 5.8
Output Power W 62 59 76 104
Weight Kg 1 1.12 1.28 1.55
Motor Length Mm 103.5 113 126 145

Drawing:

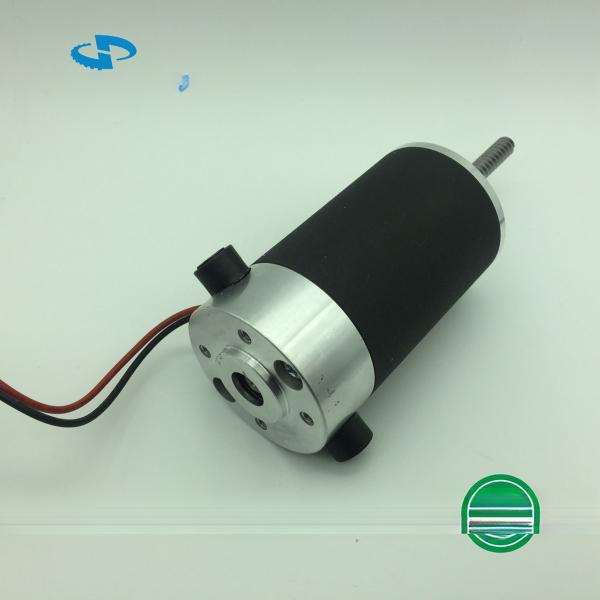

Black color

Silver color

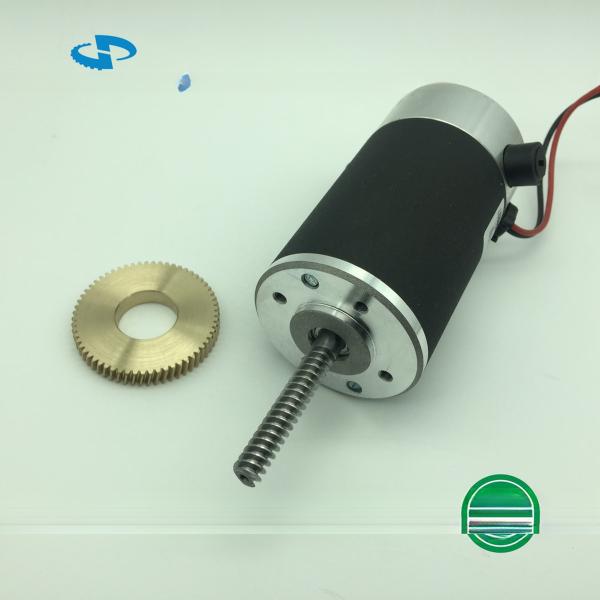

Special worm shaft
