90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
OEM
Certification :
CE
Place of Origin :
Changzhou CHINA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
To be negotiated
MOQ :
50
Price :
To be negotiated
Delivery Time :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Warranty :
3years
Port :
Shanghai
Current :
customized for different power
Speed(RPM) :
1000rpm 2000rpm~3000rpm
Continuous Current(A) :
customed
Usage :
Car, FAN, Home Appliance, machine
Type :
SERVO MOTOR
Torque :
1-2Nm
Construction :
Permanent Magnet
Commutation :
Brushless
Protect Feature :
Drip-proof
Efficiency :
IE 1
Description

90ZYT Series Brushed Dc Motor

90ZYT Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 4- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation

90ZYT Motor Main Technical Specifications:

Model Unit 90ZYT01A 90ZYT02A 90ZYT03A
Rated Voltage VDC 24v (option for 12v 36v 48v up to 220vdc)
No Load Speed Rpm 3600 3600 3600
Rated Torque N.m 1.2 1.5 1.8
Rated Speed N.m 3150 3200 3250
Rated Current A 21 26 31
Output Power W 396 503 613
Weight Kg 3.5 4 4.5
Motor Length Mm 155 180 199

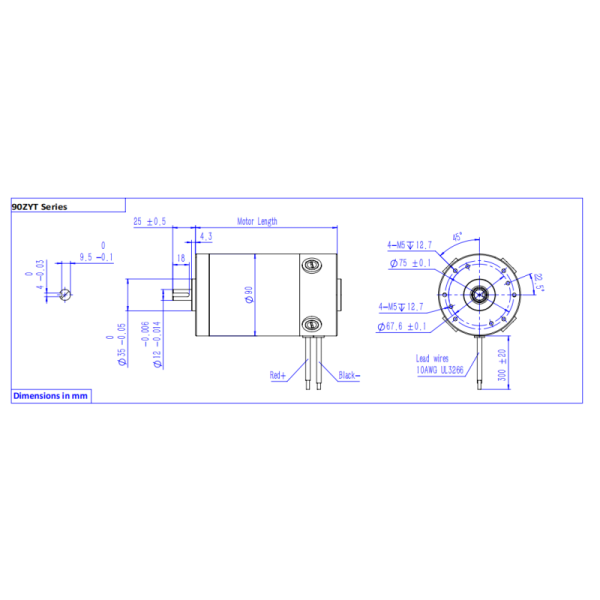

Drawing:

90mm 90ZYT series Heavy Duty High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
