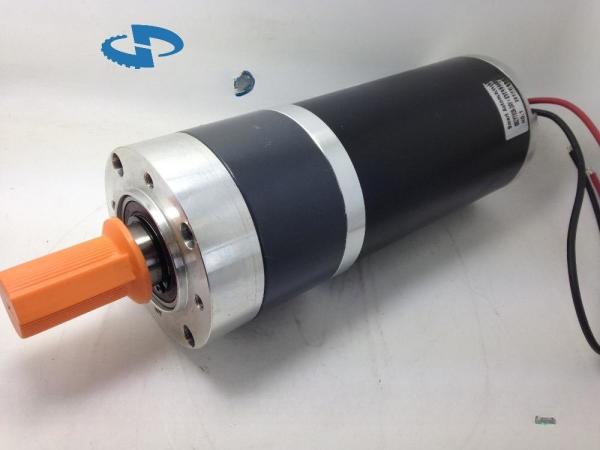

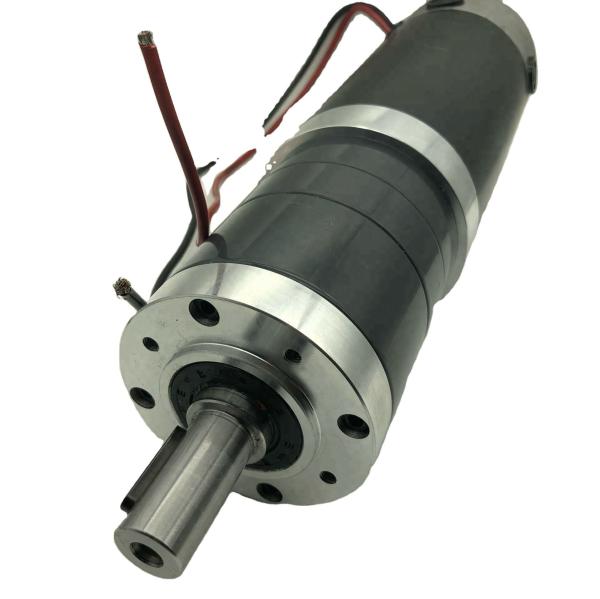

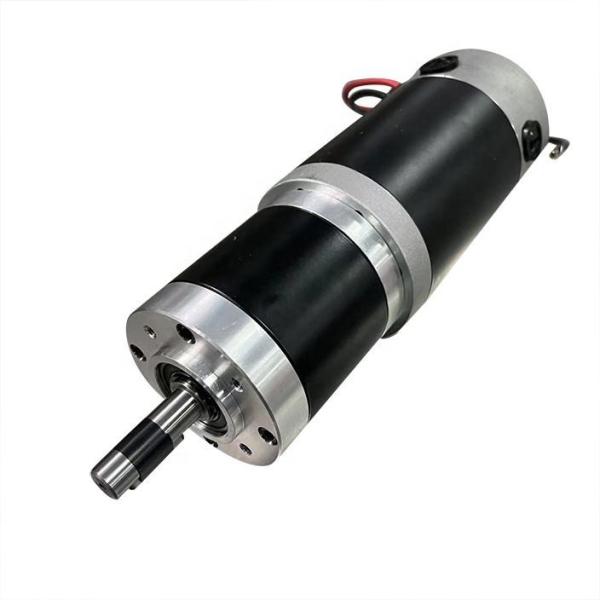

82plg.90zyt Series Large Power Heavy Duty Electrical PM DC Gear Motor 24v 36v 48v 50Nm 80Nm 100Nm 120Nm
82plg.90zyt Series Large Power Heavy Duty Electrical PM DC Gear Motor 24v 36v 48v 50Nm 80Nm 100Nm 120Nm
82plg.90zyt Series Large Power Heavy Duty Electrical PM DC Gear Motor 24v 36v 48v 50Nm 80Nm 100Nm 120Nm
82plg.90zyt Series Large Power Heavy Duty Electrical PM DC Gear Motor 24v 36v 48v 50Nm 80Nm 100Nm 120Nm
82plg.90zyt Series Large Power Heavy Duty Electrical PM DC Gear Motor 24v 36v 48v 50Nm 80Nm 100Nm 120Nm
82plg.90zyt Series Large Power Heavy Duty Electrical PM DC Gear Motor 24v 36v 48v 50Nm 80Nm 100Nm 120Nm
82plg.90zyt Series Large Power Heavy Duty Electrical PM DC Gear Motor 24v 36v 48v 50Nm 80Nm 100Nm 120Nm
82plg.90zyt Series Large Power Heavy Duty Electrical PM DC Gear Motor 24v 36v 48v 50Nm 80Nm 100Nm 120Nm
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
OEM
Certification :
CE
Place of Origin :
Changzhou CHINA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
To be negotiated
MOQ :
50
Price :
To be negotiated
Delivery Time :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Warranty :
3years
Port :
Shanghai
Current :
customized for different power
Speed(RPM) :
5 rpm upto 3000rpm
Continuous Current(A) :
customed
Usage :
BOAT, Car, Electric Bicycle, FAN, Home Appliance, machine
Type :
GEAR MOTOR
Torque :
customed
Construction :
Permanent Magnet
Commutation :
Brushless
Protect Feature :
Drip-proof
Efficiency :
IE 1
Description

82plg.90zyt series heavy duty large torque planetary geared dc motor, Helical gears High Torque upto 80Nm 100Nm 120Nm

82PLG.90ZYT SERIES LARGE TORQUE PLANETARY GEAR MOTOR (with rated torque up to 120N.m)

90ZYT Series Motor Specification:

Ball bearing Hard ferrite magnet, 4- poles Protection class IP 54 Insulation class: B CE and ROHS certified

Model Rated voltage V No load speed rpm No load current A Rated speed rpm Rated torque N.m Output power W Rated current A Stall torque N.m Stall current A Motor Length mm
90ZYT01A-12V 12 3600 3.5 3000 1.2 377 41.5 7.4 240 155
90ZYT01A-24V 24 3600 2.5 3000 1.2 377 20.5 7.4 114 155
90ZYT02A-12V 12 3600 3.5 3000 1.8 565 65 12.8 438 199
90ZYT02A-24V 24 3600 2.5 3000 1.8 565 32 12.8 210 199

We provide customized voltage, winding, shaft, mounting, and lead configurations

Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder

82PN Planetary Gearbox Specification:

*Helical gears at first stage

Reduction ratio 1/3.65 1/5.36 1/6.55 1/8.63 1/13.5 1/18.9 1/24.6 1/28 1/33.9 1/44.7 1/67 1/81.1 1/91.3 1/102.9
Number of gear trains 1 1 1 1 2 2 2 2 2 2 2 3 3 3
Gearbox Length (L) (mm) 58.3 58.3 58.3 58.3 80.5 80.5 80.5 80.5 80.5 80.5 80.5 103.2 103.2 103.2
Transmission efficiency 90% 90% 90% 90% 81% 81% 81% 81% 81% 81% 81% 73% 73% 73%
Max. rated transmission torque (N.m) 20 20 20 20 60 60 60 60 60 60 60 120 120 120
Max. permissible load in short time (N.m) 40 40 40 40 120 120 120 120 120 120 120 240 240 240
Reduction ratio 1/119 1/127.7 1/145.4 1/165.6 1/191.6 1/231.6 1/301.7 1/393
Number of gear trains 3 3 3 3 3 3 3 3
Gearbox Length (L) (mm) 103.2 103.2 103.2 103.2 103.2 103.2 103.2 103.2
Transmission efficiency 73% 73% 73% 73% 73% 73% 73% 73%
Max. rated transmission torque (N.m) 120 120 120 120 120 120 120 120
Max. permissible load in short time (N.m) 240 240 240 240 240 240 240 240
