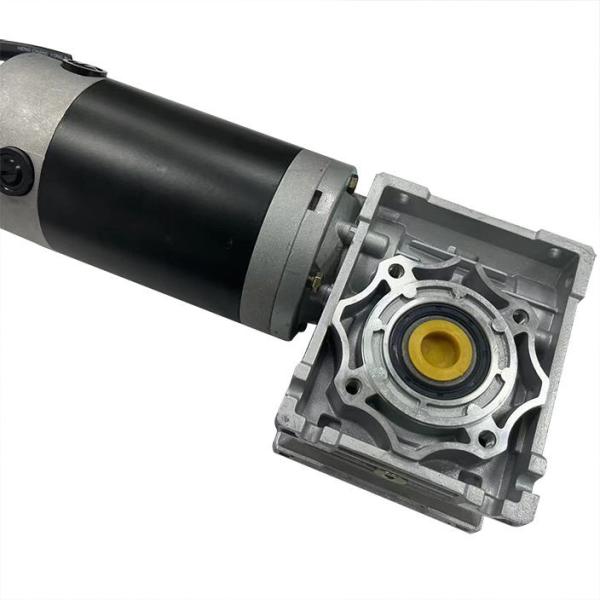

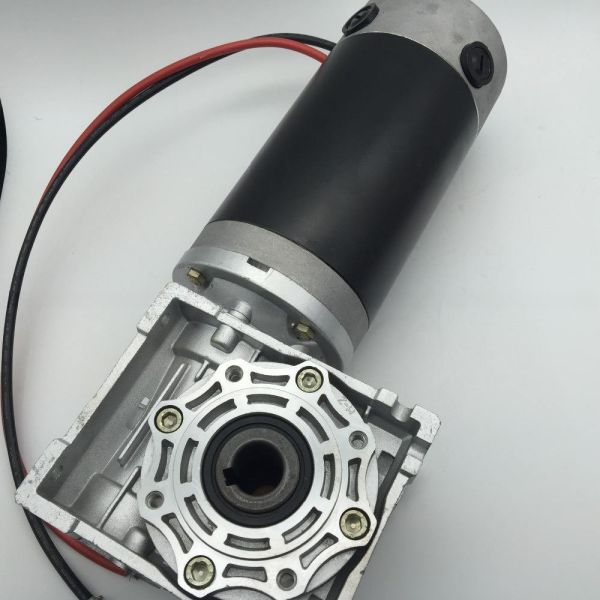

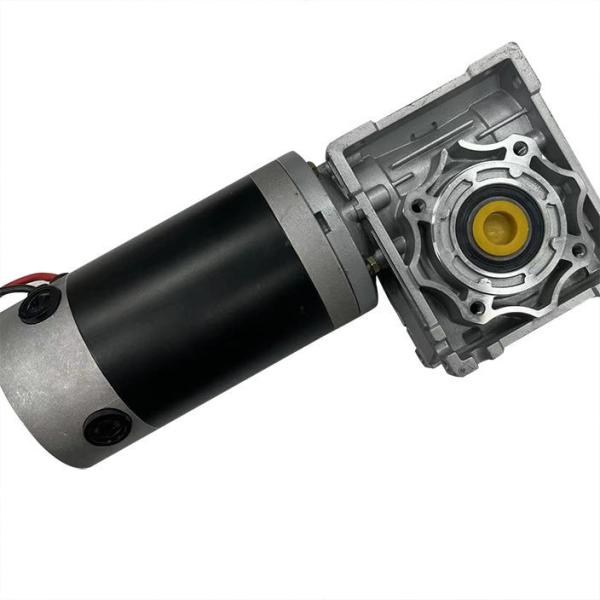

NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v
NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v
NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v
NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v
NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v
NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v
NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v
NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
NMRV050.90ZYT
Certification :
CE
Place of Origin :
Changzhou CHINA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
To be negotiated
MOQ :
50
Price :
To be negotiated
Delivery Time :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Warranty :
3years
Port :
Shanghai
Speed(RPM) :
customed
Continuous Current(A) :
customed
Usage :
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Other
Type :
GEAR MOTOR
Torque :
customed
Construction :
Permanent Magnet
Commutation :
Brushless
Protect Feature :
Drip-proof
Efficiency :
IE 1
Description

NMRV050.90ZYT SERIES PM DC WORM GEAR MOTOR

90ZYT Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 4- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃

90ZYT Motor Main Technical Specifications:

Model Unit 90ZYT01A 90ZYT02A 90ZYT03A
Rated Voltage VDC 24v (option for 12v 36v 48v up to 220vdc)
No Load Speed Rpm 3600 3600 3600
Rated Torque N.m 1.5 2.2 3
Rated Speed Rpm 3000 3000 3000
Rated Current A 26 37 50
Output Power W 471 691 942
Weight Kg 3.5 4 4.5
Motor Length Mm 155 180 199

NMRV050.90ZYT01A Worm Gear Motor Specification:

Reduction ratio 5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency 90% 85% 85% 80% 75% 75% 70% 65% 60% 55% 50% 40%
No Load Speed Rpm 720 720 720 720 720 720 720 720 720 720 720 720
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37.5 30
Rated Torque N.m 6.7 9.5 12.7 18.0 22.5 28.1 31.5 39.0 45.0 49.5 60.0 60.0

NMRV050.90ZYT02A Worm Gear Motor Specification:

Reduction ratio 5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency 90% 85% 85% 80% 75% 75% 70% 65% 60% 55% 50% 40%
No Load Speed Rpm 720 720 720 720 720 720 720 720 720 720 720 720
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37.5 30
Rated Torque N.m 9.9 14.0 18.7 26.4 33.0 41.2 46.2 57.2 66.0 72.6 88.0 88.0

NMRV050.90ZYT03A Worm Gear Motor Specification:

Reduction ratio 5 7.5 10 15 20 25 30 40 50 60 80 100
Transmission Efficiency 90% 85% 85% 80% 75% 75% 70% 65% 60% 55% 50% 40%
No Load Speed Rpm 720 720 720 720 720 720 720 720 720 720 720 720
Rated Speed Rpm 600 400 300 200 150 120 100 75 60 50 37.5 30
Rated Torque N.m 13.5 19.1 25.5 36.0 45.0 56.2 63.0 78.0 90.0 99.0 120.0 120.0

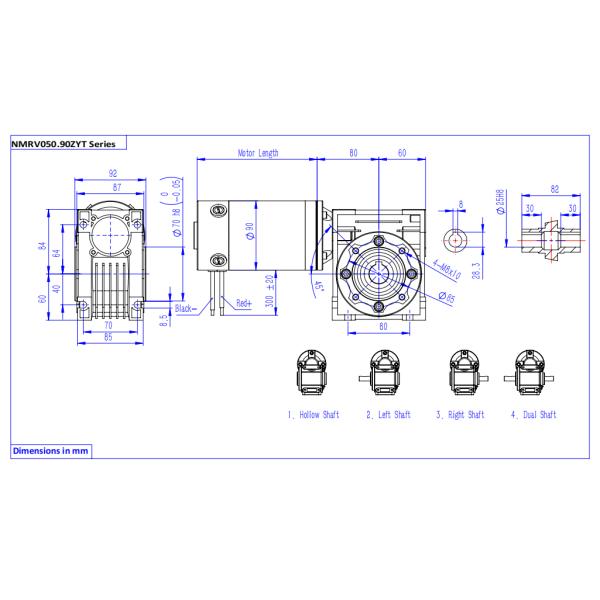

Gear Motor Drawing:

NMRV050.90ZYT DC Electric Worm Drive Electric Gearmotor 12v 24v 36v 40v 48v 60v 72v
