Specifications
Brand Name :
SMART AUTOMATION
Model Number :
OEM
Certification :
CE
Place of Origin :
Changzhou CHINA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
To be negotiated
MOQ :
50
Price :
To be negotiated
Delivery Time :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Warranty :
3years
Port :
Shanghai
Current / Phase :
1.68A
Speed(RPM) :
1rpm-1500rpm
Continuous Current(A) :
customed
Usage :
Car, Electric Bicycle, FAN, Home Appliance, machine, robot
Type :
Micro Motor
Torque :
upto 45N.m rated
Construction :
Permanent Magnet
Commutation :
Brushless
Protect Feature :
Drip-proof
Description

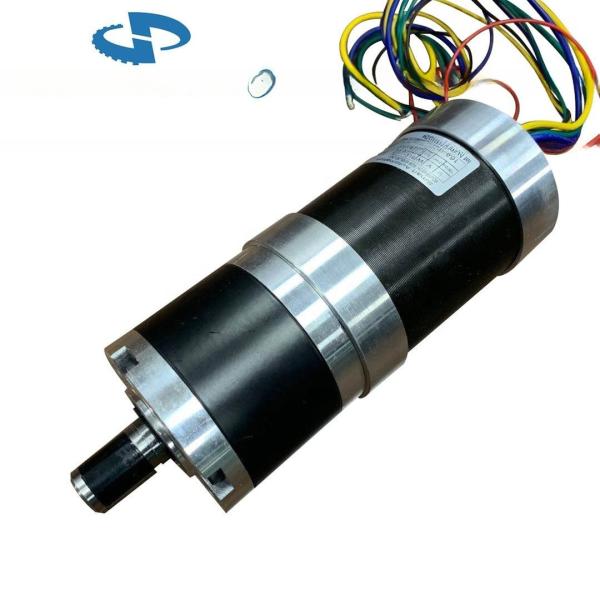

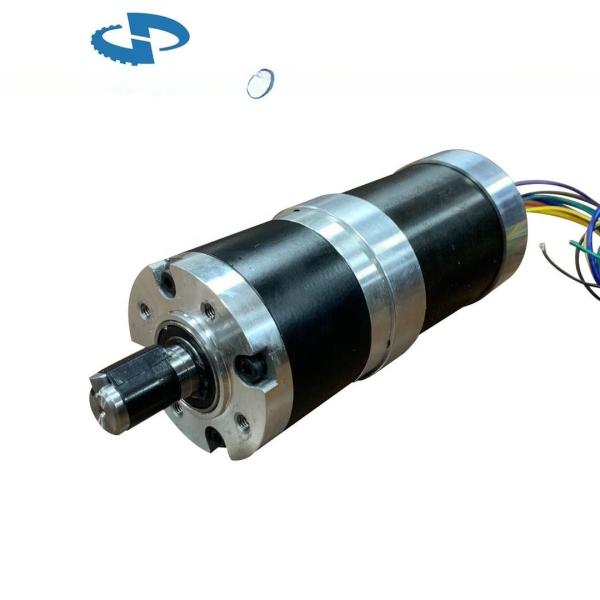

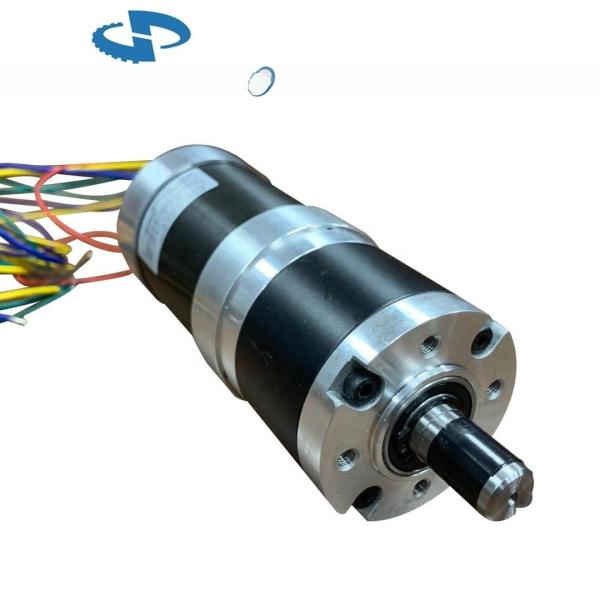

60JXE450K.63RBL Series Brushless DC Planetary Gear Motor, 12v 24v 48v 50w 100w 200w upto 45Nm

Brushless DC Planetary Gear Motor 60JXE450K.63RBL Series

Motor Main Specifications:

Bearing: High Quality Ball Bearing

IP54 Protection Class: IP54

Insulation Class: Class F / Working Temperature: -40~+140

Certifications: CE and ROHS

Electric connection

Lead No. Lead Color Lead Gauge Function DESCRIPTION
1 Red UL1007/26AWG VCC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A
4 Green HALL B
5 Blue HALL C
6 Yellow UL1007/14AWG PHASE U
7 Green PHASE V

Technique Specification

Reduction ratio

Rated tolerance torque

Max momentary tolerance torque

Efficiency

L

(mm)

Weight(g)

1/3.6 1/4.25 1/5.33 4 N.m 12 N.m 90% 40.3±0.5 520
1/13 1/15 1/18 1/23 1/28 18 N.m 36 N.m 81% 53.8±0.5 710
1/43 1/52 1/61 1/72 1/96 1/121 36 N.m 72 N.m 73% 67.2±0.5 900

1/154 1/187 1/220 1/260 1/307

1/409 1/514 1/645 1/809

45 N.m 90N.m 66% 80.6±0.5 1100

Drawing:
