NMRV050.80BL High Power Brushless DC Wrom Gear Motor with RV050 Gearbox 12vdc 24vdc 36vdc 48vdc Up To 400W
NMRV050.80BL High Power Brushless DC Wrom Gear Motor with RV050 Gearbox 12vdc 24vdc 36vdc 48vdc Up To 400W
NMRV050.80BL High Power Brushless DC Wrom Gear Motor with RV050 Gearbox 12vdc 24vdc 36vdc 48vdc Up To 400W
NMRV050.80BL High Power Brushless DC Wrom Gear Motor with RV050 Gearbox 12vdc 24vdc 36vdc 48vdc Up To 400W
NMRV050.80BL High Power Brushless DC Wrom Gear Motor with RV050 Gearbox 12vdc 24vdc 36vdc 48vdc Up To 400W
NMRV050.80BL High Power Brushless DC Wrom Gear Motor with RV050 Gearbox 12vdc 24vdc 36vdc 48vdc Up To 400W
NMRV050.80BL High Power Brushless DC Wrom Gear Motor with RV050 Gearbox 12vdc 24vdc 36vdc 48vdc Up To 400W
NMRV050.80BL High Power Brushless DC Wrom Gear Motor with RV050 Gearbox 12vdc 24vdc 36vdc 48vdc Up To 400W
NMRV050.80BL High Power Brushless DC Wrom Gear Motor with RV050 Gearbox 12vdc 24vdc 36vdc 48vdc Up To 400W
NMRV050.80BL High Power Brushless DC Wrom Gear Motor with RV050 Gearbox 12vdc 24vdc 36vdc 48vdc Up To 400W
NMRV050.80BL High Power Brushless DC Wrom Gear Motor with RV050 Gearbox 12vdc 24vdc 36vdc 48vdc Up To 400W
NMRV050.80BL High Power Brushless DC Wrom Gear Motor with RV050 Gearbox 12vdc 24vdc 36vdc 48vdc Up To 400W
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
OEM
Certification :
CE
Place of Origin :
Changzhou CHINA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
To be negotiated
MOQ :
50
Price :
To be negotiated
Delivery Time :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Warranty :
3years
Port :
Shanghai
Current :
customized for different power
Speed(RPM) :
customed
Continuous Current(A) :
customed
Usage :
Car, Electric Bicycle, FAN, Home Appliance, michine
Type :
SERVO MOTOR
Torque :
customed
Construction :
Series Wound
Commutation :
Brushless
Protect Feature :
Drip-proof
Description

NMRV050.80BL High Power Brushless Dc Motor with Worm Gear Reducer upto 60Nm, 12v 24v 36v 48v upto 400W

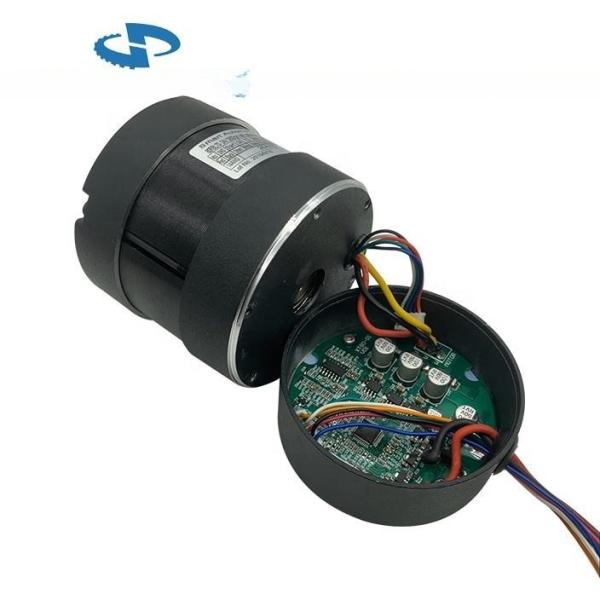

NMRV050.80BL Brushless Dc Worm Gear Motor

80BL Technique Specification

Model 80RBL01M 80RBL02M 80RBL03M 80RBL04M 80RBL05M
Number of phase 3
Number of pole 8
Voltage V 24v (Option for 12v 36v 48v 60v)
No load speed rpm 3100 3100 3100 3100 3100
Rated torque Nm 0.4 0.8 1.2 1.4 1.8
Rated Speed rpm 2200 2200 2200 2200 2200
Rated Power W 92 185 277 324 416
Length mm 60 80 100 115 135
