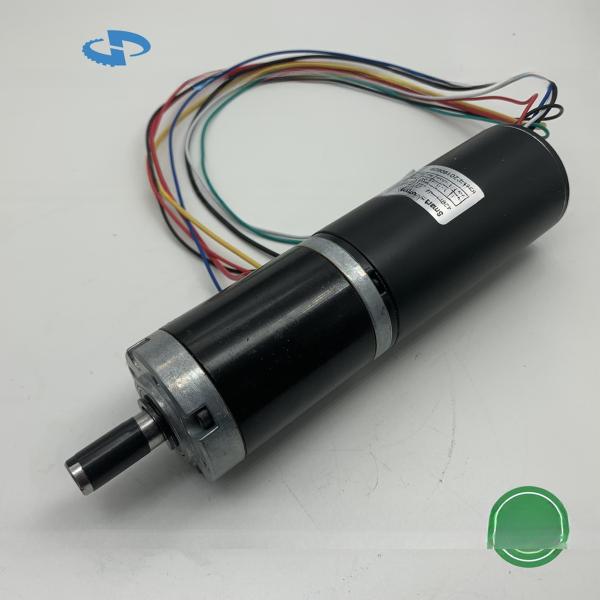

42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
42JXE100K.42RBL Helical Gear Planetary Gearbox Reducer Electric DC Brushless Motor Low Noise Long Life 25w 50w 70w
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
OEM
Certification :
CE
Place of Origin :
Changzhou CHINA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
To be negotiated
MOQ :
50
Price :
To be negotiated
Delivery Time :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Warranty :
3years
Port :
Shanghai
Speed(RPM) :
customed
Continuous Current(A) :
customed
Usage :
Car, Electric Bicycle, FAN, Home Appliance, machine, robot
Type :
Micro Motor
Torque :
up to 10Nm 20Nm
Construction :
Series Wound
Commutation :
Brushless
Protect Feature :
Drip-proof
Description

42JXE100K.42RBL Helical Gear Planetary Gearbox Brushless Dc Motor 25w 50w 70w Low Noise

size 42mm electric dc brushless motor, 12v 24v 36v option for planetary gearhead, optical encoder, electric brake assembly

General specification:

Item Specification
Winding type Delta
Hall effect angle 120degree electrical angle
Shaft run out 0.025mm
Radial play 0.06mm@450g
End play 0.08mm@450g
Max.radial force 15N@10mm from the flange
Max.axial force 10N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC

Electric connection:

Lead NO. Lead Color Lead Gauge Function DESCRIPTION
1 Red UL1007/26AWG VCC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A
4 Green HALL B
5 Blue HALL C
6 Yellow UL1007/20AWG PHASE U
7 Green PHASE V
8 Blue PHASE W

42JXE100K.42RBL Planetary Gear Motor Series

(helical gear version)
