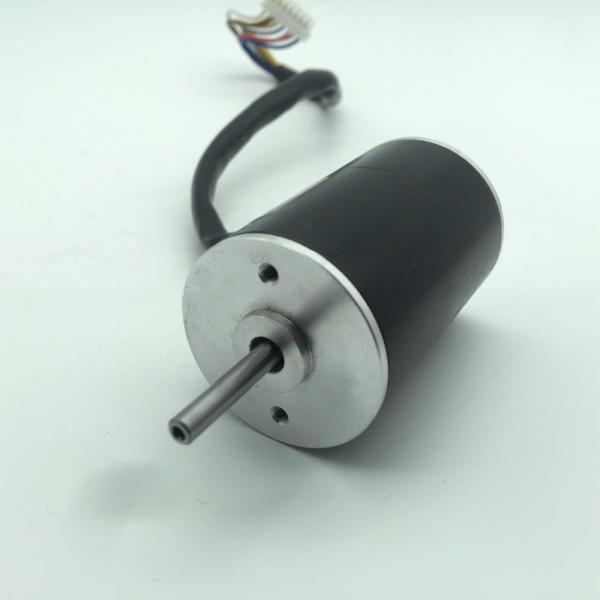

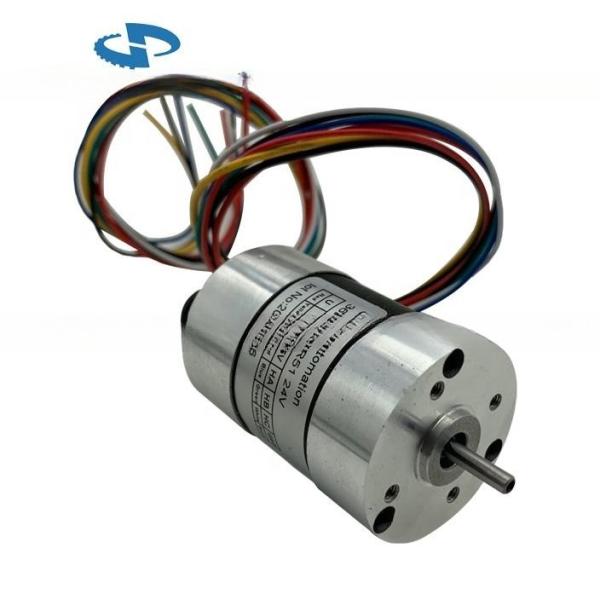

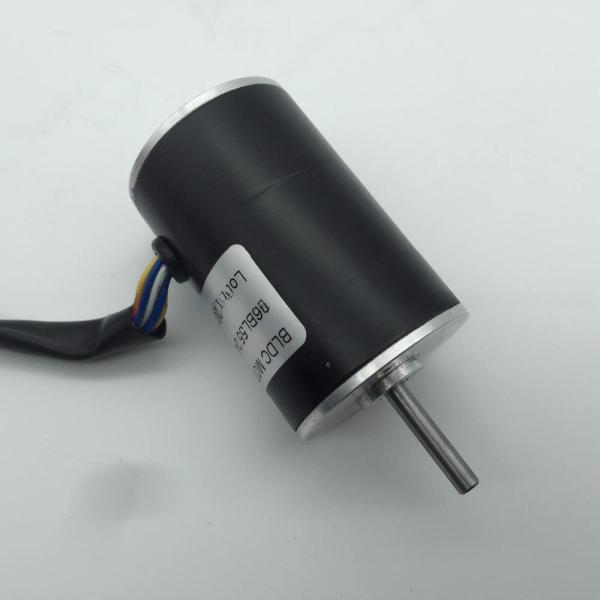

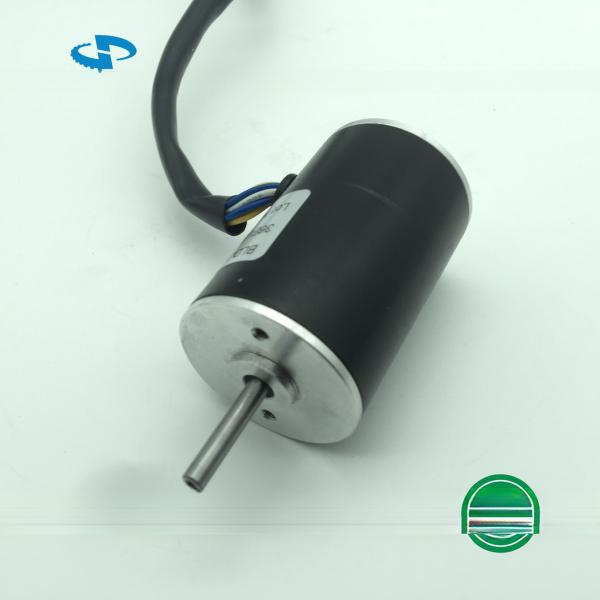

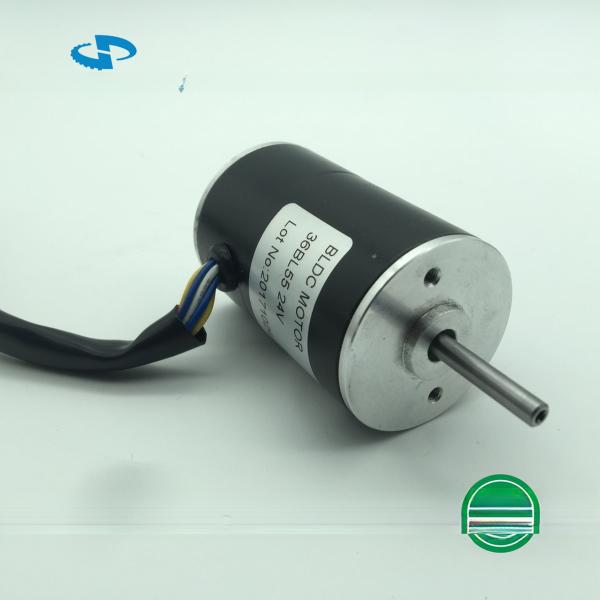

OD36mm 36BL Series 12v 24v High Speed Brushless DC Motor 5000rpm 6000rpm 8000rpm 10000rpm
OD36mm 36BL Series 12v 24v High Speed Brushless DC Motor 5000rpm 6000rpm 8000rpm 10000rpm
OD36mm 36BL Series 12v 24v High Speed Brushless DC Motor 5000rpm 6000rpm 8000rpm 10000rpm
OD36mm 36BL Series 12v 24v High Speed Brushless DC Motor 5000rpm 6000rpm 8000rpm 10000rpm
OD36mm 36BL Series 12v 24v High Speed Brushless DC Motor 5000rpm 6000rpm 8000rpm 10000rpm
OD36mm 36BL Series 12v 24v High Speed Brushless DC Motor 5000rpm 6000rpm 8000rpm 10000rpm
OD36mm 36BL Series 12v 24v High Speed Brushless DC Motor 5000rpm 6000rpm 8000rpm 10000rpm
OD36mm 36BL Series 12v 24v High Speed Brushless DC Motor 5000rpm 6000rpm 8000rpm 10000rpm
OD36mm 36BL Series 12v 24v High Speed Brushless DC Motor 5000rpm 6000rpm 8000rpm 10000rpm
OD36mm 36BL Series 12v 24v High Speed Brushless DC Motor 5000rpm 6000rpm 8000rpm 10000rpm
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
OEM
Certification :
CE
Place of Origin :
Changzhou CHINA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
To be negotiated
MOQ :
50
Price :
To be negotiated
Delivery Time :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Warranty :
3years
Port :
Shanghai
Speed(RPM) :
4000~8000rpm
Continuous Current(A) :
customed
Usage :
Car, Electric Bicycle, FAN, Home Appliance, machine
Type :
Micro Motor
Torque :
customed
Construction :
Permanent Magnet
Commutation :
Brushless
Protect Feature :
Drip-proof
Efficiency :
IE 1
Description

36BL Series 3 phase 12v 24v high speed 6000rpm 8000rpm brushless dc motor

36BL Series Brushless Dc Motor

General specification

Item Specification
Winding type Delta
Hall effect angle 120° (electrical angle)
Shaft run out 0.025mm
Radial play 0.02mm@450g
End play 0.08mm@450g
Max. radial force 15N@10mm from the flange
Max. axial force 10N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC

Electric connection

Lead No. Lead Color Lead Gauge Function DESCRIPTION
1 Red UL1007/26AWG VCC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A
4 Green HALL B
5 Blue HALL C
6 Yellow UL1007/20AWG PHASE U
7 Green PHASE V
8 Blue PHASE W

Technique Specification

Model 36BL01A 36BL02A 36BL03A
Number of phase 3
Number of pole 4
Voltage V 24v(Option for 12v up to 48vdc)
No load speed rpm 6200 8000 9500
Rated torque mNm 36 60 75
Rated Speed rpm 4800 6000 8000
Rated Current A 2 3.5 4.5
Rated Power W 18 40 63
Weight g 185 210 250
Length mm 45 55 65

ABOVE MODELS ARE ONLY TYPICAL MODELS

WE MAKE CUSTOMED VOLTAGE, WINDING, SHAFT, MOUNTING,

AND MOTOR ADDERS FOR ENCODER, GEARBOX, BRAKE...ETC
