Size 63mm 63BLS Series Brushless Dc Motor Rated Torque Up To 0.8Nm to Replace Dunker Motors 50 watt 100 watt 200 watt
Size 63mm 63BLS Series Brushless Dc Motor Rated Torque Up To 0.8Nm to Replace Dunker Motors 50 watt 100 watt 200 watt
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
63BLS
Certification :
CE
Place of Origin :
Changzhou CHINA
MOQ :
50
Price :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
To be negotiated
Packaging Details :
To be negotiated
Warranty :
3years
Port :
Shanghai
Speed(RPM) :
3000rpm 4000rpm or customed
Continuous Current(A) :
customed
Usage :
Car, Electric Bicycle, FAN, Home Appliance, machine, robot
Type :
Micro Motor
Torque :
upto 0.8Nm without gearhead
Construction :
Permanent Magnet
Commutation :
Brushless
Protect Feature :
Drip-proof
Efficiency :
IE 1
Description

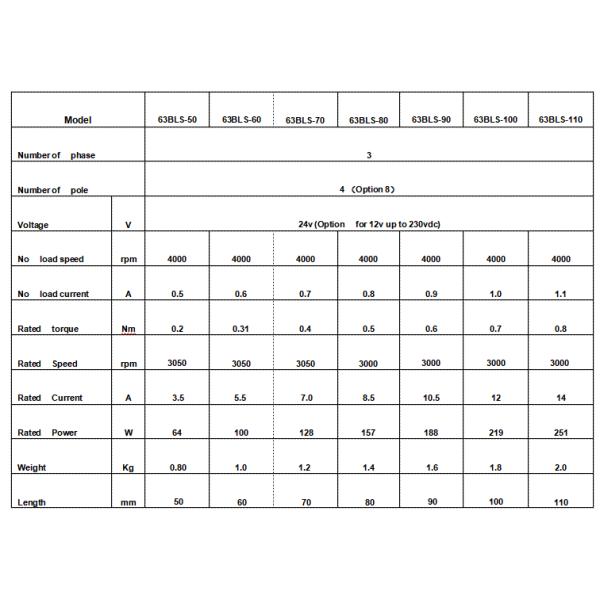

63BLS Series 63mm Brushless Dc Motor, Rated Torque upto 0.8Nm

63BLS Series 63mm Brushless Dc Motor

Item Specification
Winding type Star
Hall effect angle 120° (electrical angle)
Shaft run out 0.025mm
Radial play 0.05mm@450g
End play 0.05mm@450g
Max. radial force 150N@10mm from the flange
Max. axial force 60N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin.500VDC

Electric connection

Lead No. Lead Color Lead Gauge Function DESCRIPTION
1 Red UL1007/26AWG VCC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A
4 Green HALL B
5 Blue HALL C
6 Yellow UL1007/14AWG PHASE U
7 Green PHASE V
8 Blue PHASE W

Size 63mm 63BLS Series Brushless Dc Motor Rated Torque Up To 0.8Nm to Replace Dunker Motors 50 watt 100 watt 200 watt

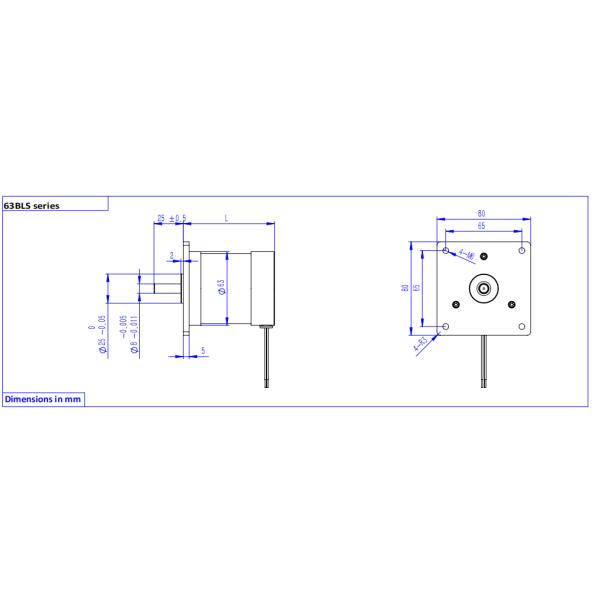

Dimensions

Size 63mm 63BLS Series Brushless Dc Motor Rated Torque Up To 0.8Nm to Replace Dunker Motors 50 watt 100 watt 200 watt

Size 63mm 63BLS Series Brushless Dc Motor Rated Torque Up To 0.8Nm to Replace Dunker Motors 50 watt 100 watt 200 watt
