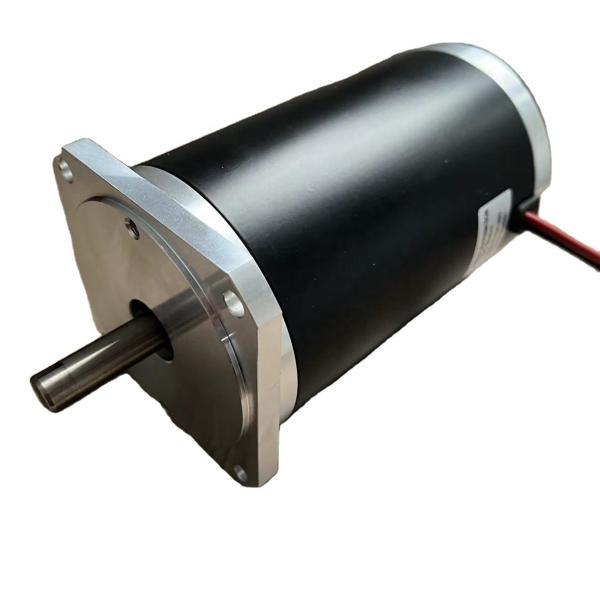

80ZYT-S Square Flange Series DC Motor Brushed 12vdc 24vdc 48vdc 100w 200w 300w 1500rpm 2000rpm 3000rpm
80ZYT-S Square Flange Series DC Motor Brushed 12vdc 24vdc 48vdc 100w 200w 300w 1500rpm 2000rpm 3000rpm
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
80ZYT-S Square Flange Series DC Motor
Certification :
CE
Place of Origin :
Changzhou CHINA
MOQ :
50
Price :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
To be negotiated
Packaging Details :
To be negotiated
Warranty :
3years
Port :
Shanghai
Current :
customized for different power
Speed(RPM) :
1500rpm 3000rpm
Continuous Current(A) :
customed
Usage :
Car, Electric Bicycle, FAN, Home Appliance, Other
Type :
dc motor
Torque :
customed
Construction :
Permanent Magnet
Commutation :
Brushless
Protect Feature :
Drip-proof
Efficiency :
IE 1
Description

80ZYT-S Series Brushed Dc Motor

80ZYT-S Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation

80ZYT-S Motor Main Technical Specification:

Model Unit 80ZYT-S01A 80ZYT-S02A 80ZYT-S03A 80ZYT-S04A
Rated Voltage VDC 24v (option for 12v 36v 48v up to 220vdc)
No Load Speed Rpm 3600 3600 3500 3500
Rated Torque N.m 0.6 0.8 1.0 1.2
Rated Speed Rpm 3150 3150 3050 3050
Rated Current A 10.0 13.5 15.5 20.0
Output Power W 200 265 320 383
Weight Kg 2.5 3 3.5 4.0
Motor Length Mm 120 140 160 175
