90ZYT-S Series Brush High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
90ZYT-S Series Brush High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
90ZYT-S
Certification :
CE
Place of Origin :
Changzhou CHINA
MOQ :
50
Price :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
To be negotiated
Packaging Details :
To be negotiated
Warranty :
3years
Port :
Shanghai
Current :
customized for different power
Speed(RPM) :
1000rpm 2000rpm~3000rpm
Continuous Current(A) :
customed
Usage :
Car, FAN, Home Appliance, machine
Type :
SERVO MOTOR
Torque :
1-2Nm
Construction :
Permanent Magnet
Commutation :
Brushless
Protect Feature :
Drip-proof
Efficiency :
IE 1
Description

90ZYT-S Series Brushed Dc Motor

90ZYT Motor General Specification:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 4- Poles

Protection Class: IP54

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation

90ZYT Motor Main Technical Specifications:

Model Unit 90ZYT-S01A 90ZYT-S01B 90ZYT-S02A 90ZYT-S02B 90ZYT-S03A 90ZYT-S03B
Rated Voltage VDC 24v (option for 12v 36v 48v up to 220vdc)
No Load Speed Rpm 3600 2300 3600 2300 3600 2300
Rated Torque N.m 1.5 1.5 2.2 2.0 3.0 3.0
Rated Speed rpm 3000 1850 3000 1800 3000 1800
Rated Current A 26 16 37 20 50 30
Output Power W 471 290 691 377 942 565
Weight Kg 3.5 3.5 4 4 4.5 4.5
Motor Length Mm 155 155 180 180 199 199

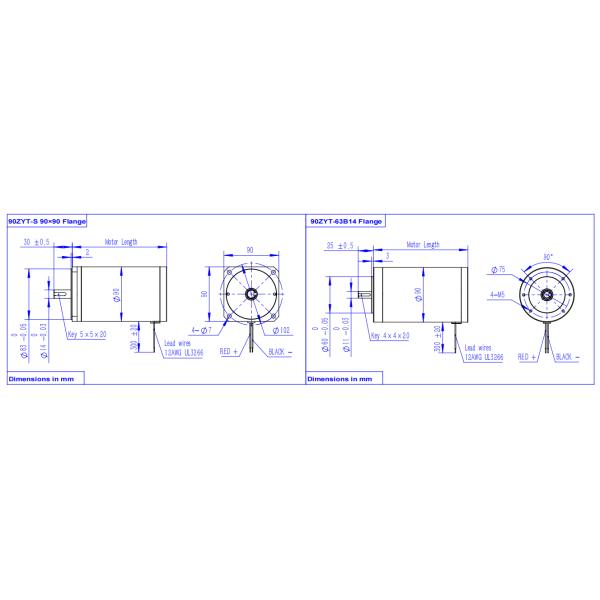

Drawing:

90ZYT-S Series Brush High Power Big Torque Brush DC Electric Motor 3000rpm 300w 400w 500w 600w 1Nm 2Nm

Speed-Torque Curve:
