70ZYT Series 70mm DC Brushed Motor 12v 24v 48v 50w 100w 200w
70ZYT Series 70mm DC Brushed Motor 12v 24v 48v 50w 100w 200w
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
70ZYT Series
Certification :
CE
Place of Origin :
Changzhou CHINA
MOQ :
100
Price :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
10-30 days
Packaging Details :
Standard Export Package
Warranty :
3years
Port :
Shanghai
Current :
customized
Speed(RPM) :
3000rpm or customized 5rpm~10000rpm
Continuous Current(A) :
customed
Usage :
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, robot machine
Type :
Brush Motor
Torque :
0.1~0.7Nm
Construction :
Permanent Magnet
Commutation :
Brush
Protect Feature :
Drip-proof
Efficiency :
IE 1
Description

70ZYT Series Brushed Dc Motor

70ZYT Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Option: Customized Voltage Performance Mounting and Shaft

70ZYT Motor Main Technical Specification:

Model Unit 70ZYT01A 70ZYT02A 70ZYT03A 70ZYT04A
Rated Voltage VDC 24v (option for 12v up to 220vdc)
No Load Speed Rpm 3600 3600 3600 3600
Rated Torque N.m 0.1 0.25 0.35 0.5
Rated Speed Rpm 3000 3000 3000 3000
额定电流 Rated Current A 1.8 4.6 6.4 9.2
Output Power W 31 78.5 110 157
Weight Kg 0.85 1.25 1.45 1.65
Motor Length mm 79 99 109 129

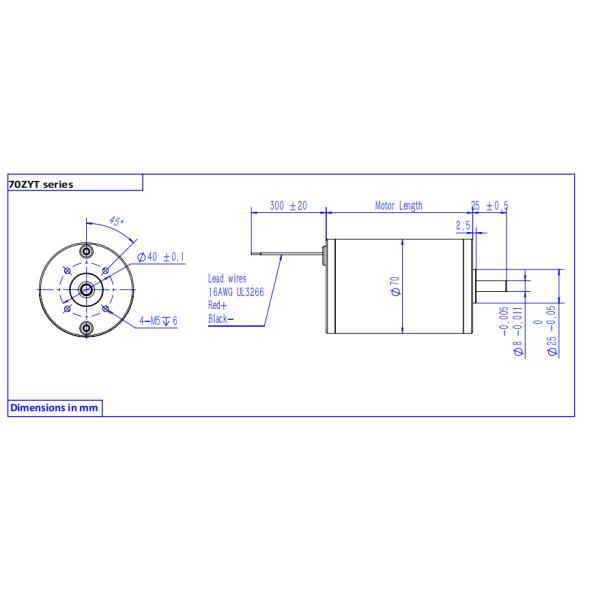

Drawing:

70ZYT Series 70mm DC Brushed Motor 12v 24v 48v 50w 100w 200w
