60ZYT Series 60mm DC Brushed Motor 12v 24v 48v 50w 100w 200w
60ZYT Series 60mm DC Brushed Motor 12v 24v 48v 50w 100w 200w
Specifications
Brand Name :
SMART AUTOMATION
Model Number :
60ZYT Series 60mm DC Brushed Motor
Certification :
CE
Place of Origin :
Changzhou CHINA
MOQ :
100
Price :
To be negotiated
Payment Terms :
D/A, T/T, L/C,D/P
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
10-30 days
Packaging Details :
Standard Export Package
Warranty :
3years
Port :
Shanghai
Current :
customized
Speed(RPM) :
3000rpm or customized 5rpm~10000rpm
Continuous Current(A) :
customed
Usage :
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, robot machine
Type :
Brush Motor
Torque :
0.1~0.7Nm
Construction :
Permanent Magnet
Commutation :
Brush
Protect Feature :
Drip-proof
Efficiency :
IE 1
Description

60ZYT Series Brushed Dc Motor

60ZYT Motor General Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Option: Customized Voltage Performance Mounting and Shaft

60ZYT Motor Main Technical Specification:

Model Unit 60ZYT01A 60ZYT02A 60ZYT03A
Rated Voltage VDC 24v (option for 12v up to 60vdc)
No Load Speed Rpm 3500 3500 3500
Rated Torque N.m 0.1 0.18 0.26
Rated Speed Rpm 3000 3000 3000
Rated Current A 1.8 3.2 4.6
Output Power W 31.5 56.5 81.5
Weight Kg 0.85 1.00 1.15
Motor Length mm 85 100 115

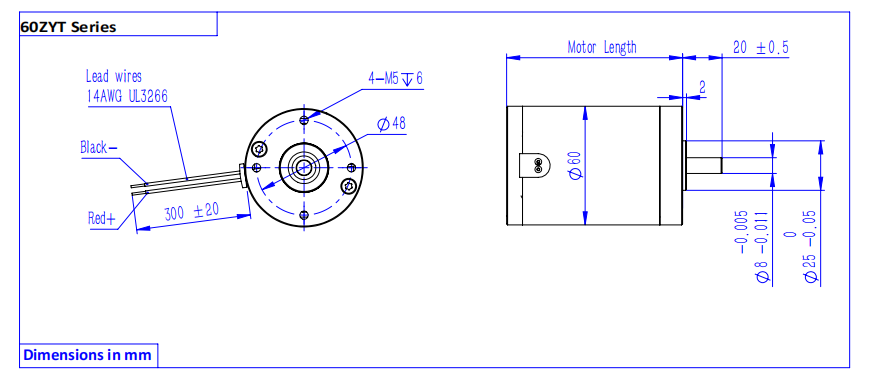

Drawing:
