600LBS 280KG Holding Force Magnetic Door Lock
600LBS 280KG Holding Force Magnetic Door Lock
600LBS 280KG Holding Force Magnetic Door Lock
600LBS 280KG Holding Force Magnetic Door Lock
600LBS 280KG Holding Force Magnetic Door Lock
600LBS 280KG Holding Force Magnetic Door Lock
600LBS 280KG Holding Force Magnetic Door Lock
600LBS 280KG Holding Force Magnetic Door Lock
Specifications
MOQ :
500
Place of Origin :
China
Brand Name :
Selockey
Size :
231.6Lx41.6Wx24.5H(mm)
Armature Plate Dimension :
180Lx38Wx11H(mm)
Holding Force :
280kg(600Lbs)
Material :
Zinc alloy
Weight :
2.1kg
Working temperature :
-20℃ - 60℃
Description

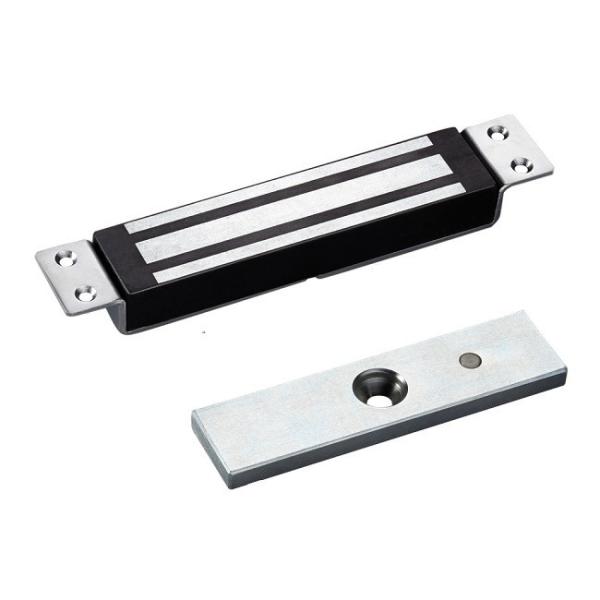

Magnetic lock for sliding door,600LBS(280KG) holding force

signal output magnetic lock for single glass door, wooden door, fireproof door, metal door. Mortise mount and easy installation are reserved . Accessories are available for all kinds of doors.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.

Product Parameter Parameter Description
Size 231.6Lx41.6Wx24.5H(mm)
Armature Plate Dimension 180Lx38Wx11H(mm)
Holding Force 280kg(600Lbs)
Input Voltage 12 or 24VDC
Current 12V/500mA or 24V/250mA
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 2.1kg
