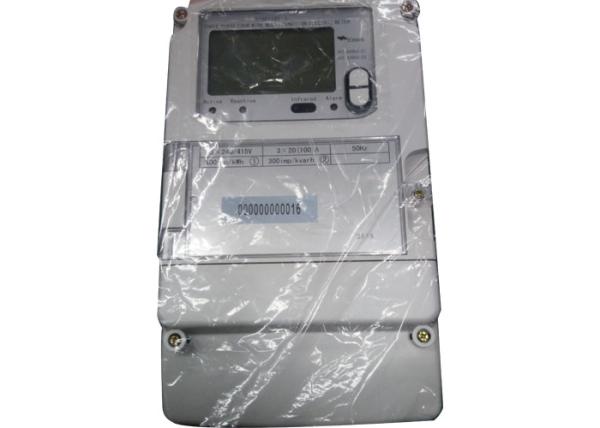

Multi Function Three Phase Electric Meter High Accuracy 20(100)A Large Current Max Demand

Main Technical Parameters:

• Model Type and Pulse Constant Table

• High Accuracy: Active 0.5S Reactive 2.0
• Rated Frequency: 50Hz
• Starting Current: Direct Connection, 0.004In
• Indirect Connection, 0.002In
• Creeping: Build in logic circuit anti-creep
• Size: 290mm´170mm´85mm
• Weight: About 2.4kg
• Electric Parameters:

• Clock Battery Working Parameters

• Climatic Conditions

• Technical Parameters

Note: Independent double RS485 interfaces mean that the meter can communicate with both ① and ② RS485 interface. However, the communication rate for RS485 ① is 1200～9600bps (Optional, and take 2400bps as default), and the communication rate for RS485 ② is 1200bps, it is inalterable. The communication rate for infrared is 1200bps.

See the attached functional terminal diagram.

Basic Function:

Time-sharing measurement, demand measurement, remote fee control, event log, electric, demand’s account setting and freezing, regular voltage, load record, LCD display, alarm, programming, RS485 and infrared communication functions and etc.

Transportation and Storage:

The products should avoid from dramatic impact when in transportation and opening, it should compatible with relative standards.

It should be put on the stand in original packing, and cannot be stacked more than 8 levels.

Keep the storage space clear, and the environment temperature should be 0～40℃, relative humidity cannot exceed 85%. There is no harmful substance in the air which may cause corrosion.

Presentation Statement:

The meter cover is made of ABS and Polycarbonate, which can be reused after the life time of meter finished, compatible with relative environment regulation. The meter cover promises for the double insulation and compatible with international standard for dustproof, waterproof, antiflaming and protection. It is with attractive appearance, rational structure and easy installation. See diagram 1 for the appearance and instruction.
