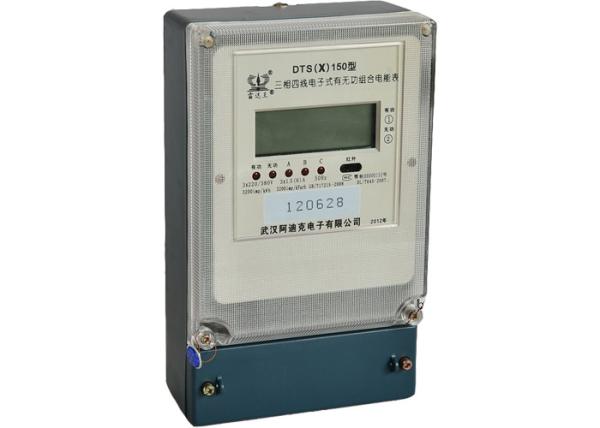

RS485 Infrared Three Phase Electric Meter Active / Reactive Energy Measurement
RS485 Infrared Three Phase Electric Meter Active / Reactive Energy Measurement
Specifications
Brand Name :
Radarking
Model Number :
DTS(X)150
Certification :
IEC62053-21; IEC62052-11;
Place of Origin :
Made In China
MOQ :
100
Price :
Negotiate
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Supply Ability :
5000000 pcs per year
Delivery Time :
35days
Packaging Details :
Standard Package
Function :
Active/Reactive Energy Measuring
Element :
Three Phase Four Wires
Accuracy Class :
Active: 1.0; Reactive: 2.0
Demand :
Max Demand
Case :
Plastic
Power Consumption :
less than 2.0W
Description

RS485 Infrared Three Phase Electric Meter Active / Reactive Energy Measurement

Product Advantage
1. Meet the national standards such as GB/T18460-2001, DL/T645-1997/2007
2. Independent design the full-digitized chip group special for electric meter.
3. Latest product with the advantages of complete digitized electrical energy measurement, the intellectualized charge control and the user information management;

Feature
1. LCD display;
2. With Power display;
3. Overload protection;
4. Current(optical):

Specification Parameters
Voltage
3*220/380V(3-phase 4 line)
Current Spec. 1.5(6)A/20(80)A
Accuracy Class 1.0, Class 2.0
Pulsating Constant
(imp/kWh)		 6400, 3200, 2400, 1600, 1200, 800, 400, 200
Clock Accuracy ≤ 0.5s/Day (Refer to the temperature of 23 centigrade)
Power Consumption ≤ 1W/phase
Lifetime ≥ 10 years;
The clock working time will be≥ 5 years even powered off

RS485 Infrared Three Phase Electric Meter Active / Reactive Energy Measurement
