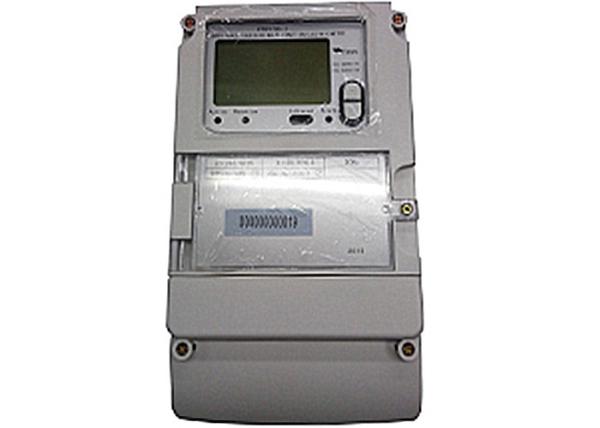

Multifunctional Three Phase Energy Meter , 3 Phase KWH Meter For Energy / Voltage
Multifunctional Three Phase Energy Meter , 3 Phase KWH Meter For Energy / Voltage
Specifications
Brand Name :
Radarking
Model Number :
DTSD1150
Certification :
IEC62052-11; IEC62053-21
Place of Origin :
Made-in-China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T
Delivery Time :
35days
Packaging Details :
bubble box inside, paper box outside
Product Name :
3 Phase Electricity Meter
Output Current :
3×1.5(6); 3×5(40); 3×5(60); 3×20 (80); 3×10 (100)
Frequency :
50Hz/60Hz
Accuracy Class :
CL 1.0, 2.0
Pulse Constant :
6400; 3200; 1600; 1200; 800; 400; 200
Life Time :
More than 10 years
Description

Multi Functional Three Phase Electric Meter 3P KWH Meter Measure in Energy, Voltage

1. Product Introduction

1.1 Summarize

DSSD1150/ DTSD1150 Three phase multi function electronic meter is a metering with advanced level, special design for industrial user. It is made of large scale integrated circuit, with Digital sampling processing technology and SMT craft.

It is compatible with IEC 62053-21.

1.2 Technical

1.2.1 Main Technical Parameters

A. Model Type and Pulse Constant Table

Model Type

Reference Voltage Un

(V)

Rated Current In

(A)

 Active Pulse Constant (imp/kWh) Reactive Pulse Constant (imp/kvarh)
DSSD1150 Three Phase Three Wires 3×100 3×1.5(6) 20000 20000
DTSD1150 Three Phase Four Wires 3×57.7/100 3×1.5(6) 20000 20000
3×220/380 3×1.5(6) 6400 6400
3×5(40) 800 800
3×5(60) 400 400

3×20 (80)

3×10 (100)

 300 300

B. High Accuracy: Active 0.5S Reactive 2.0

C. ​Rated Frequency: 50Hz

D. ​Starting Current: Direct Connection, 0.004In; Indirect Connection, 0.002In

E. Creeping: Build in logic circuit anti-creep

F. Size: 290mm´170mm´85mm

G. Weight: About 2.4kg

H. Electric Parameters:

Normal Working Voltage 0.8Un～1.15Un
Limit Working Voltage 0.7Un～1.2Un
Voltage Circuit Power Consumption ≤ 1.5W and 6VA
Current Circuit Power Consumption ＜1VA
Clock Battery Voltage 3.6V
Battery Voltage for Meter Reading when Power Off 6V

I. Clock Battery Working Parameters

Real Time Clock Accuracy ≤0.5S (23℃)
Clock Battery Capacity ≥1200mAh
Meter Reading Battery Capacity ≥2000mAh (2 pcs)
Data Storage Time during Power Off ≥10 years

J. ​Climatic Conditions

Normal Working Temperature -25℃～+60℃
Limit Working Temperature -40℃～+70℃
Storage and Transport Temperature -40℃～+70℃
Storage and Working Humidity ≤85%

K. Technical Parameters

Multi Tariffs 4
Multi Periods 14
Measurement Range -799999.99 kWh～799999.99 kWh , -799999.99 kvarh～799999.99 kvarh
Display LCD
Communication

2*RS485: 1200bps～9600 bps;

Infrared: 1200bps
Communication Protocol

2. Basic Function

Time-sharing measurement, demand measurement, remote fee control, event log, electric, demand’s account setting and freezing, regular voltage, load record, LCD display, alarm, programming, RS485 and infrared communication functions and etc.
