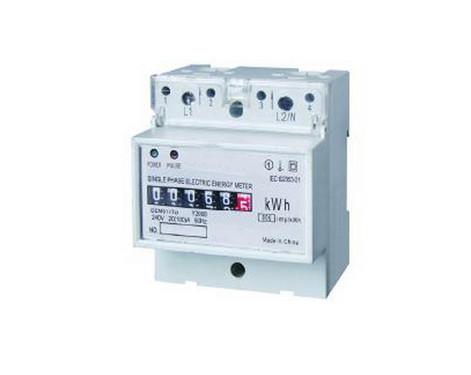

Single Phase Din Rail Meter Smart Size Energy Meter SMT Technology High Accuracy
Single Phase Din Rail Meter Smart Size Energy Meter SMT Technology High Accuracy
Specifications
Brand Name :
Radarking
Model Number :
DDS155
Certification :
IS09001; IS014001; IEC62052-11; IEC62053-21;
Place of Origin :
Made in China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Delivery Time :
20-40 days
Packaging Details :
Bubble box inside, paper box outside
Supply Ability :
600000pcs/year
Rated Voltage :
220V/230V/240V
Rated Frequency :
50Hz/60Hz
Accuracy Class :
Class 1.0/2.0
Rated Current :
1.5(6)A, 5(30)A, 5(40)A, 5(60)A, 10(40)A, 10(60)A, 5(100)A, 10(100)A
Pulse Constant :
6400, 3200, 1600, 1200, 800, 400, 200
Communication :
RS485; Wireless module
Description

Single Phase Din Rail Meter Smart Size Energy Meter SMT Technology High Accuracy

Parameters

Rated current (A) 1.5(6),5(10),5(20),5(30),10(40),10(60),15(60),20(80)30(100)
Rated voltage (V) 220V or 240V
Rated frequency (Hz) 50 or 60
Accuracy Class Class 1 or Class 2

Product overview

DDS155 Single Phase Din Rail Electronic Watt-hour Energy Meter adopts exclusive RDK circuit, which has a simple structure, less external components and with high reliability, low power consumption, long service life etc.

It can be used for measuring single phase AC active energy when the rated frequency is 50Hz. Every performance index of the product is in conformity with the technical requirements for single-phase electronic watt-hour energy meter stipulated in IEC62053-21 Class1 and 2 Static AC active watt-hour energy meter standards.

Functions and features

1. Used for measuring active energy and there's no need to calibrate after long-term operation.

2. The meter adopts ADE7755 exclusive chip to measure.

3. The meter adopts latest imported integrated-circuit exclusively for electrical energy with digital

multiplier, which has greatly improved the dynamic working range of the meter and make the actual overload capacity up to more than 10 times.

4. The meter has good error linearity in the range of 5%Ib-Imax.

5. The meter has a simple structure, a few external components and low power consumption.

6. All the components adopted in the meter are of high quality, which guarantee the meter a long service life and high reliability.

7. Ways of display: register, LCD and digital tube.

8. The meter has remote power-off function.

9. The output interface is RS485.
