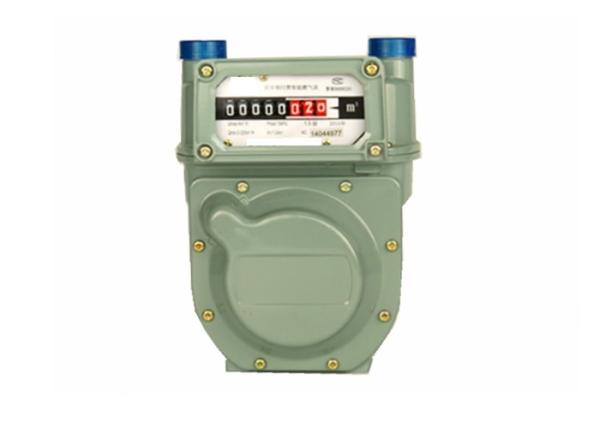

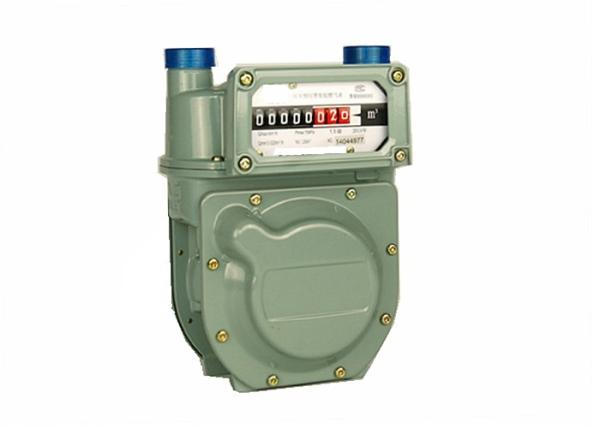

G1.6 Steel Case Prepaid Gas Meter , Electronic Gas Meter IC Card
G1.6 Steel Case Prepaid Gas Meter , Electronic Gas Meter IC Card
G1.6 Steel Case Prepaid Gas Meter , Electronic Gas Meter IC Card
G1.6 Steel Case Prepaid Gas Meter , Electronic Gas Meter IC Card
Specifications
Brand Name :
Radarking
Model Number :
CG-L-G1.6/G2.5/G4
Certification :
IS09001; IS014001; OIML-R31
Place of Origin :
Made in China
MOQ :
1 pcs
Price :
Negotiate
Payment Terms :
Western Union, T/T, L/C
Delivery Time :
40days
Packaging Details :
Standard Package
Meter Type :
G4/G1.6/G2.5
Material :
Steel Case Body
Valve control :
With valve or without valve
Life Span :
More than 10 years
Dimension :
226(H)×197(L)×174(Ws
Dispay :
LCD Display
Description
G1 . 6 Steel Case IC Card Prepaid electronic Gas meter for Household Diaphragm​

General Description

Steel gas meter is suitable for metering gas like natural gas, liquefied petroleum gas, biogas and other gas etc. Execute GB/T6968-2011 "Diaphragm Gas Meter" standard.
This series of diaphragm gas meter use diaphragm structure, the mechanism is made of POM plastic, case is made of high quality steel stretching; with the reversing fortification device inside; using magnetic coupling between the mechanism and the counter gear, to ensure a good sealing; high sensitivity, accurate measurement, easy maintenance; It uses a special surface treatment technology to achieve strong corrosion resistance and long service life.


Main Technical Indicators

Name of parameters

 Unit Type
RDK-GT1.6 RDK-GT2.5 RDK-GT4
Maximum flow-rate Qmax m³/h 2.5 4 6
Minimum flow-rate Qmin m³/h 0.016 0.025 0.04
Material Steel case

Basic error

 % Qmin ≤Q< Qt ±3
Qt ≤Q ≤Qmax ±1.5
Maximum working pressure kPa 10
Total pressure loss Pa 200
Working temperature ºC -10~+45
Connector center distance mm 130/110
Connector screw thread M30×2
Accuracy class 1.5 class
Minimum division value L 0.2
Maximum indicated value 99999.999


Specifications:
1.Only one airflow channel
2.No moving parts
3.No abrasion
4.Long service life over 20 years
5.Precision without changed

Product Features:

The principle of IC Card Prepaid electronic Gas meter is measurement of flow meter can achieve prepayment function by incorporating built-in valve. According to user requirements, the remote reading and control functions can be further added.

Technical Parameters:

Metering range: 0 ~ 9999.9999m3
Metering resolution: 0.0001 m3
Operating voltage: DC5V-6V (4 LR6 AA alkaline batteries)
Maximum working pressure: 10kPa
Total pressure loss: ≤ 250Pa
Normal working ambient temperature: 0 ~ 40 °C
Accuracy class: 1.5
Operating Current: ≤ 100μA
Max purchasing gas volume with IC Card: 500 m3 (Actual max. allowable gas purchasing gas volume shall be per the regulations of the Gas Company)
Flow range( m3 / h):
The HYX-2.5L-type: 0.016 ~ 2.5
HYX-4.0L type: 0.025 to 4.0
HYX-6.0L type: 0.040 to 6.0
