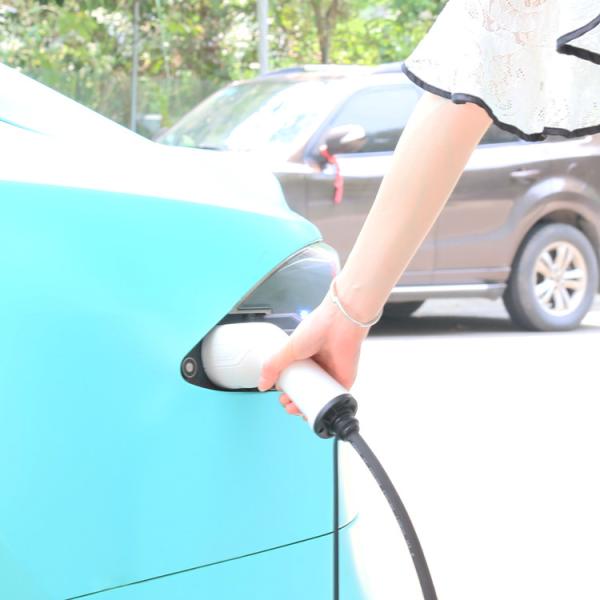

Type 2 EV Charging Pile WIFI 400V Electric Fast Charging Stations In Parking Lots
Type 2 EV Charging Pile WIFI 400V Electric Fast Charging Stations In Parking Lots
Type 2 EV Charging Pile WIFI 400V Electric Fast Charging Stations In Parking Lots
Type 2 EV Charging Pile WIFI 400V Electric Fast Charging Stations In Parking Lots
Specifications
Brand Name :
Green Science
Model Number :
GS22-AC-B01
Certification :
GB CE UL
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 Sets Per Month
Delivery Time :
10-15Workday
Packaging Details :
570*350*310mm
Product name :
Type2 EV Charging Pile 22KW
Output Power :
22Kw Max
Product Price :
Negotiate
Working Voltage :
380V AC~400V AC
Warranty Time :
One Year
Work Altitude :
Below 2000m
Description

22KW 32A EV Charging Pile 400W Type2 Public Charging Stations

Quick Detail:

Model Number: GS22-AC-B01

Rated Voltage:40V AC

Rated Current: 32A

Rated Output Power: 22kw

Charging Port: Type 2 Cable

Cable Length: 3.5M/Customized

Communication: 3G/4G/5G, WIFI or Bluetooth Optional

Start Mode: Plug and Play/RFID card/App

Function: APP Control, screen display, Voltage Monitoring

Specifications:

Product Name EV Charging Station (WallBox)
Data Model GS7-AC-BO1 GS11-AC-BO1 GS22-AC-BO1
Input Power Supply 1P+N+PE 3P+N+PE 3P+N+PE
Rated Voltage 200~220V AC 380~400V AC 380~400V AC
Rated Current 32A 16A 32A
Output Output Voltage 200~220V AC 380~400V AC 380~400V AC
Output Current 32A 16A 32A
Rated Power 7KW 11KW 22KW
Package Unit Size 340*285*147mm
Package Size 570*350*310mm 570*350*310mm 570*350*310mm
Net Weight 3.8KGS 4.5KGS 4.5KGS
Gross Weight 6.5KGS 6.5KGS 6.5KGS
Communication WIFI Optional
3G/4G/5G Optional
OCPP OCPP 1.6 Json (OCPP 2.0 Optional)
User Interface Charging Port Type 1/ Type 2
Cable Length 3.5M or customization length
LED Indicator White/Green/Black/Blue/Orange/Purple/Customized
Start Mode Plug&Play / RFID Card / APP
Emergency Stop YES
Environment Installation Wall-mounted Pole Mounted
Work Temperature -25℃-+50℃
Work Humidity 5%-95%
Work Altitude <2000M

Type 2 EV Charging Pile WIFI 400V Electric Fast Charging Stations In Parking Lots

Steps for adding APP device Download method:

For IOS: Search Smart Life in the Apple Store to downtoad and install it.

For Android: Search Smart Life in the Google Stare to download and install it.

Step 1 Add Device: Click "Add Device"

Step 2 Connect the WIFI: When adding a device for the first time, connect the device and mobile phone under the same WIFI.

Step 3 Loading: Wait until the device is loaded.

Step 4 Loading completed: After loading, click Add to enter the charging interface.

Maintainance

The power distribution system

The AC input of the charger is led out from the distribution box of the power grid,and the power shall be cut off before connection. The power on and power off steps are as follows:

1. Check whether the power supply voltage is normal.

2. Closing: first close the main switch of the distribution box, and then close the branch circuit switch in turn.

3. A switch: pull each branch circuit switch first, and then pull the main switch of the distribution box. Pull the main brake in case of emergency.
