60Hz Portable 220V EV Charger , LCD Screen Fast Charging EV Station
60Hz Portable 220V EV Charger , LCD Screen Fast Charging EV Station
60Hz Portable 220V EV Charger , LCD Screen Fast Charging EV Station
60Hz Portable 220V EV Charger , LCD Screen Fast Charging EV Station
Specifications
Brand Name :
Green Science
Model Number :
GS7-AC-B01
Certification :
GB CE UL
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 Sets Per Month
Delivery Time :
10-15Workday
Packaging Details :
Carton, Pallet
Product name :
220V EV Charging Pile 7KW 32A
Rated Output Power :
Up To 7KW
Frequency :
50Hz/60Hz
Operating Temperature :
-25℃ to +50℃
Input Voltage :
200vac ± 10%
Description

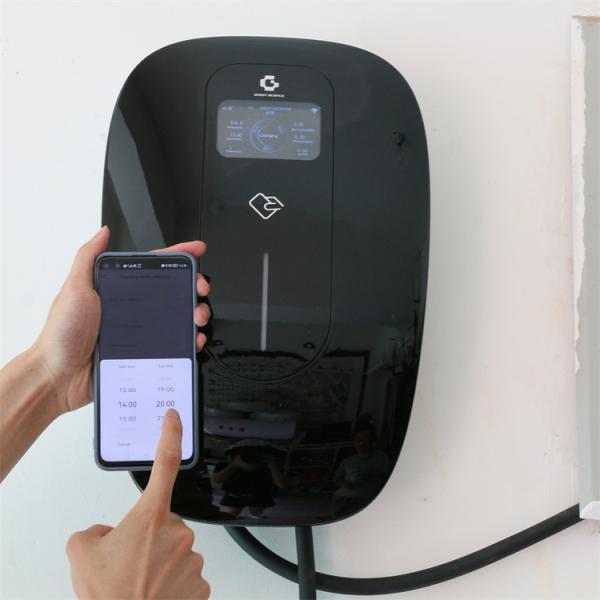

220V EV Charging Pile 7KW 32A Rapid Charger For Electric Cars

Our EV charger has the appearance of more innovative: Minimal size,streamline design; smarter terminal control: Wireless communication(Wi-Fi/Bluetooth), OCPP communication protocol with CMS , Smart charge or scheduled charge by App.

1.Simple structure: this EV charger is lightweight and it occupies a small space, so it's very portable be and easy to fixed.

2.Overall protection level reaches IP65, which has good dust and water resistance, so you can install and operate safely both indoors and outdoors.

3.Its intelligent hardware communicates with your vehicle for safe, simple and efficient charging.It has different functions for your option,such as: LCD Screen/WIFI/Bluetooth/4G/Ethernet and OCPP.

4.The product shell is fashionable and beautiful, we have various colors for you to choose from,such as: white, black, orange, purple, blue, grey, green. Besides, you can also customize different colors according to your preference.

60Hz Portable 220V EV Charger , LCD Screen Fast Charging EV Station

Specifications:

Product Name EV Charging Station (WallBox)
Data Model GS7-AC-BO1 GS11-AC-BO1 GS22-AC-BO1
Input Power Supply 1P+N+PE 3P+N+PE 3P+N+PE
Rated Voltage 200~220V AC 380~400V AC 380~400V AC
Rated Current 32A 16A 32A
Output Output Voltage 200~220V AC 380~400V AC 380~400V AC
Output Current 32A 16A 32A
Rated Power 7KW 11KW 22KW
Package Unit Size 340*285*147mm
Package Size 570*350*310mm 570*350*310mm 570*350*310mm
Net Weight 3.8KGS 4.5KGS 4.5KGS
Gross Weight 6.5KGS 6.5KGS 6.5KGS
Communication WIFI Optional
3G/4G/5G Optional
OCPP OCPP 1.6 Json (OCPP 2.0 Optional)
User Interface Charging Port Type 1/ Type 2
Cable Length 3.5M or customization length
LED Indicator White/Green/Black/Blue/Orange/Purple/Customized
Start Mode Plug&Play / RFID Card / APP
Emergency Stop YES
Environment Installation Wall-mounted Pole Mounted
Work Temperature -25℃-+50℃
Work Humidity 5%-95%
Work Altitude <2000M
60Hz Portable 220V EV Charger , LCD Screen Fast Charging EV Station
60Hz Portable 220V EV Charger , LCD Screen Fast Charging EV Station
Maintainance

Line system

Regularly check the input and output cables of the charger:

1. Weekly line inspection: check the cable for heating and damage.

2. Monthly line inspection: check whether the cable is heated or damaged, whether the cable is stressed by external tension, and whether the cable is fixed firmly.

3. Annual routine inspection: check whether the connection between the cableand the switch is tight, whether the grounding is reliable, whether the cable is heated and damaged, whether the insulation resistance of the cable meets the requirements, whether the sealing measures of the cable charger are intact, and whether the holes are sealed tightly.
