​Sandwich Panel White Portable Emergency Shelter / Steel Frame Foldable House

Quick Detail:

Description:

wall color: blue, white, red

roof color: blue, white, red

windows: white

door: white

mainframe: steel frame

insulation: EPS, PU, XPS

Size: 5.1m*3m to 12m

Applications:

Hotel, House, Office, Shop, etc.

Specifications

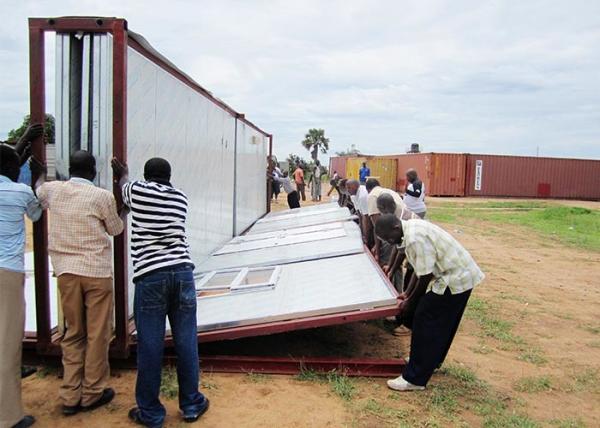

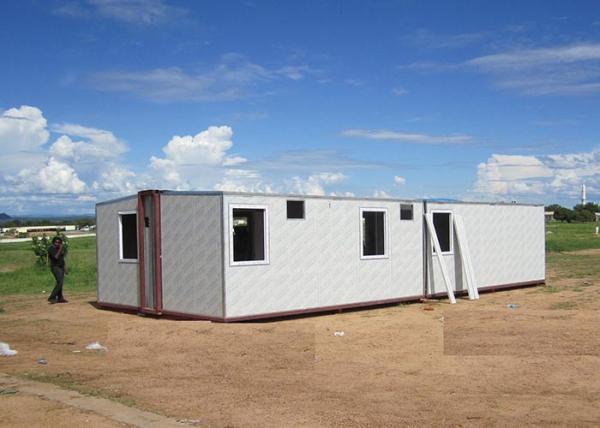

Our after-disaster portable emergency shelter is a foldable, modular, multipurpose prefabricated housing solution that will serve your needs and requirements in the best possible manner. As one type of prefabricated house, it has all advantages of a normal prefabricated house, but it has many more advantages than a normal prefabricated house.

General information is the following

Dimension and Weight

• External Dimension (L*W*H): 5800*5180*2620(2510)
• Internal Dimension(L*W*H): 5500*5080*2475(2400)
• Weight:2500kg per unit

Steel Framework

Material: Mainframes are made from channel steel and RHS cube. Whole frames are well welded in the factory.

Surface working: all frames are painted Anti-rust paint.

Floor

Composition:

• External wainscot: 0.3mm steel sheet.
• insulation filling: EPS in a thickness of 30mm among steel transverse supports
• steam blockade: PE foil in a thickness of 80μm
• waterproof plywood panel in a thickness of 18mm for dry area
• Glued PVC floor covering in a thickness of 1.5mm.

Permitted loading: 3.50 KN/m²
Coefficient of thermal conductivity: K=0,032 W/MK

Roof

Composition:

• Roofing is made of 0.35mm color steel sheet
• Roofing panel: 50mm EPS sandwich panel

Permitted loading: 1.00 KN/m²
Coefficient of thermal conductivity: K=0,030 W/m.k

Façade wall

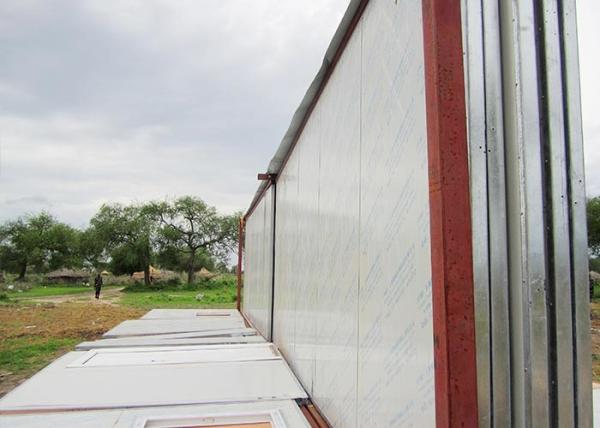

Wall panels are made of 50mm with a 10kg density EPS foam sandwich panel. All panels are fixed in the factory and hinged with roofing panel. The thickness of steel for the panel is 0.35mm outside and 0.35mm inside.

Permitted loading: 0.60 KN/m²
Coefficient of thermal conductivity: K=0,028 W/m.K

Door (1)

External door: steel, single fold, filled door with opening dimensions of 850X2000mm, furnished with a cylinder lock with 3 keys. The doorframe is made of galvanized steel, with overall dimensions of 900X2025mm, 50mm thick, made of painted sheet metal as the framework

Windows (4)

Windows are made of PVC, white color, with dimensions 900X1100mm, single glass in a thickness of 4mm, sliding style.

Electricals Installation

Standard: according to VDE 100 regulations or CCC standard, UL standard.
Voltage: 220/380 V, 50 Hz Network connections: CEE-connection plus/socket, 3-pole 32 A, 220V, mounted on the top frame in upper corners of shorter sidewall
Inner distribution system: NyM-J cables of suitable dimensions, flush-mounted Protection: protective current switch (40/4E-0,03A), automatic fuses (B-characteristics) of suitable power (10A, 16A)
Earthling: galvanized connector with a steel plate of dimensions 30x80mm welded on the bottom frame

Fittings:

• electric distribution box 1x40/4E-0,03A (protective current switch), 1x10A &2x16A (automatic fuses)
• single fluorescent lights 1x40W 4 each
• flush-mounted sockets 220 V 6each
• flush-mounted switches 220 V 2each

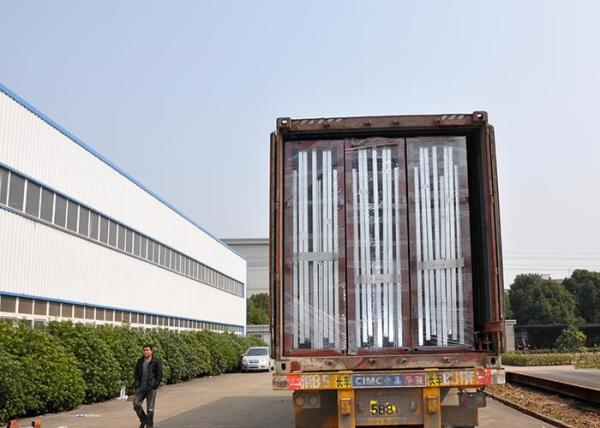

Package:

Specification:

Company information:

Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation, and other services as a whole. We always committed to providing every family with a comfortable, safe and affordable home, and also can provide a one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects and so on. Our products have been exported to more than 60 countries and NGOs. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture
