Specifications
Brand Name :
DEEPBLUE SMARTHOUSE
Model Number :
Shangri-La 2310
Certification :
AS/NZS,UL,AISI,
Place of Origin :
NINGBO,CHINA
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
12000houses/year
Delivery Time :
30-40 days
Packaging Details :
Bare bundle / 40HQ
Bathroom :
2
Doors :
Solid wood
Finishes :
High-end
Floor :
9mm Laminated Flooring
Kitchen :
Cabinets, faucets, sinks
Structure :
AS1397 G550 Z275 0.75/0.95mm wall structure
Size :
2.35*7.4mm
Windows :
Australian Standard Single Glass Alu. Sliding Windows
Description

Modular Prefab Light Steel Tiny House On Wheels: Innovative Design

Shangri-La

Modular Prefab Light Steel Tiny House On Wheels: Innovative Design 2 bedroom Modular Prefab Light Steel Tiny House On Wheels: Innovative Design 1 bathroom Modular Prefab Light Steel Tiny House On Wheels: Innovative Design 1 Kitchen Modular Prefab Light Steel Tiny House On Wheels: Innovative Design 24.33

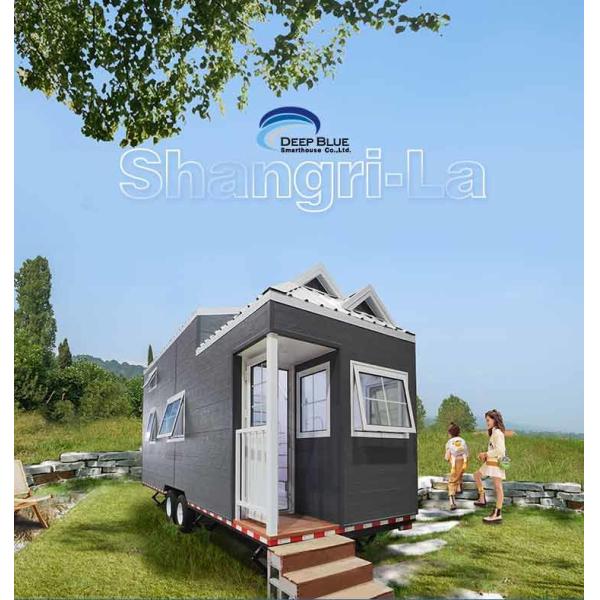

Discover a world of serenity and innovative living with the Shangri-La Tiny House, a masterpiece meticulously designed and crafted by DEEPBLUE SMARTHOUSE. This architectural gem, exported to the picturesque landscapes of Australia, redefines the art of compact living, offering a harmonious blend of luxury, functionality, and sustainability.

Modular Prefab Light Steel Tiny House On Wheels: Innovative Design

A Luxurious Haven in a Tiny Package:

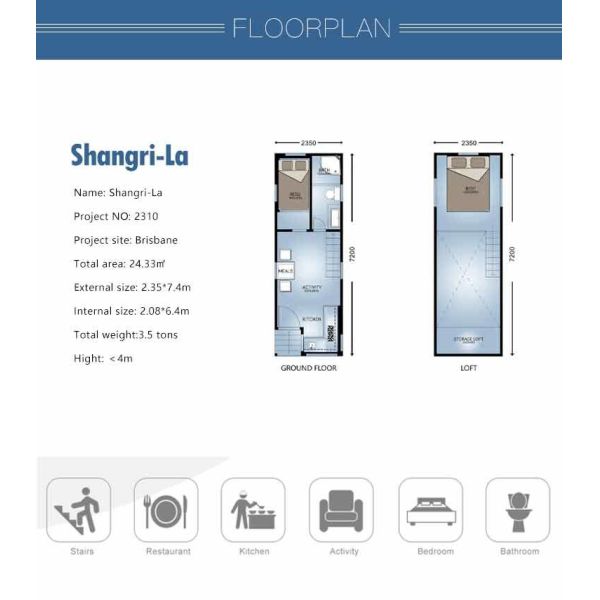

Measuring a total area of 24.331 square meters, the Shangri-La Tiny House boasts a well-thought-out layout that encompasses one living area, a fully-equipped kitchen, two cozy bedrooms, and a modern bathroom. Adding to its appeal, the loft space hosts a convenient storage room, ensuring that every inch of space is optimized for comfort and utility.

Dimensions and Design Excellence:

The Shangri-La Tiny House's external dimensions of 2.35 meters in width and 7.4 meters in length make it an elegant presence within any landscape. Its interior dimensions, measuring 2.08 meters by 7.05 meters, ingeniously showcase the art of spatial efficiency. With a height of less than 4 meters, this tiny house adheres to height restrictions while maintaining a graceful and unobtrusive silhouette.

,Modular Prefab Light Steel Tiny House On Wheels: Innovative Design

A Masterpiece of Craftsmanship:

DEEPBLUE SMARTHOUSE's dedication to superior craftsmanship is evident in every detail of the Shangri-La Tiny House. With a total weight of 3.5 tons, this dwelling is not only a testament to its structural integrity but also a symbol of durability and longevity.

Modular Prefab Light Steel Tiny House On Wheels: Innovative Design

Modular Prefab Light Steel Tiny House On Wheels: Innovative Design

The Shangri-La Tiny House emerges from the innovative workshops of DEEPBLUE SMARTHOUSE, where a team of skilled craftsmen and designers collaborate to create exceptional living spaces. This tiny house is a testament to their profound expertise and passion for redefining the concept of living.

Elevated Quality Standards:

DEEPBLUE SMARTHOUSE sets the bar high when it comes to quality. The Shangri-La Tiny House is not merely a structure; it's a reflection of the brand's commitment to excellence. Every detail, from the choice of materials to the precision of construction, adheres to stringent quality benchmarks.

BASIC SHELL:

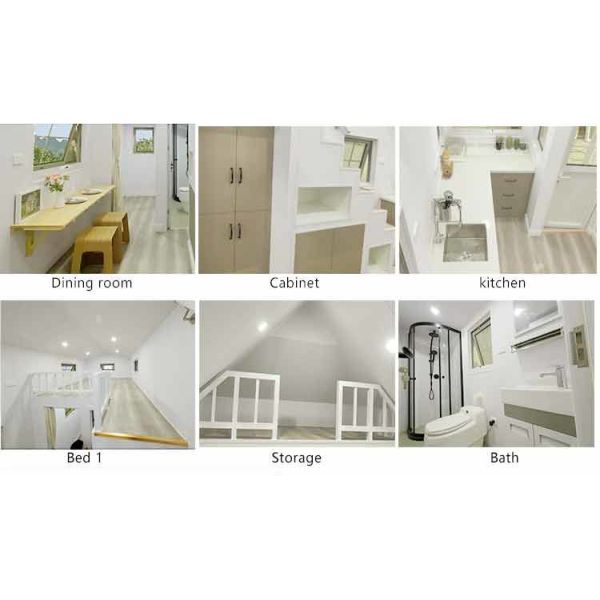

The tiny house is equipped with a living room/kitchen/bedroom/bathroom.etc

Light Gauge Steel Structure :

1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire-resistant.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.

Modular Prefab Light Steel Tiny House On Wheels: Innovative Design

DeepBlue SmartHouse takes pride in their commitment to delivering high-quality, innovative, and sustainable housing solutions. By combining cutting-edge design with eco-friendly materials and construction techniques, they have created the Tiny House as an energy-efficient and environmentally conscious living space.
Modular Prefab Light Steel Tiny House On Wheels: Innovative Design


Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Modular Prefab Light Steel Tiny House On Wheels: Innovative Design

Deepblue Smarthouse is a leading Chinese company that specializes in designing and constructing prefab homes using light steel frame technology. Our comprehensive end-to-end building services cover everything from design and engineering to manufacturing,sourcing kitset of materials for whole buildings, and related services. As a one-stop solution provider, we are committed to delivering efficient, sustainable, and cost-effective building solutions for our clients, including housing developers, builders, and owner-builders.

Light steel frame technology is gaining popularity for its many advantages, such as faster construction times, greater energy efficiency, and better durability in extreme weather conditions. At Deepblue Smarthouse, we understand the importance of quality and sustainability in the building process, and we strive to use eco-friendly materials and processes in all our projects.


Modular Prefab Light Steel Tiny House On Wheels: Innovative Design

Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.


Modular Prefab Light Steel Tiny House On Wheels: Innovative Design


About us:

We supply and design tiny houses. Whether you are after a spare bedroom for guests, a home to live in, or maybe
an office space, we can help you, our homes are sure to impress you.
Based in China, we are Deepblue smart house, specialized in prefab house with years of experience.

Your first choice, Deepblue Prefabrica
