Light Steel Trailer Tiny Homes / Cabin Hotel Unit / Modular House On Wheels

2 bedroom 1 bathroom 1 Kitchen 26.42 m²

Escape to the enchanting beauty of the Orlando Tiny House, a meticulously designed and manufactured haven by DEEPBLUE SMARTHOUSE. Located in the serene landscapes of New Zealand, this remarkable dwelling offers a perfect blend of simplicity and functionality.

With a total area of 25.22 square meters, the Orlando Tiny House provides an ideal living space. Its external dimensions of 2.35 meters wide and 7.4 meters long, along with internal dimensions of 2.08 meters wide and 7.05 meters long, have been carefully optimized to maximize comfort and usability.

The Orlando Tiny House is a testament to the artful combination of form and function. It features a thoughtfully designed layout that includes a cozy living area, a well-equipped kitchen, two comfortable bedrooms, and a modern bathroom. Every aspect of the house has been meticulously crafted to create a harmonious living environment.

DEEPBLUE SMARTHOUSE's expertise in design and manufacturing shines through in every detail of the Orlando Tiny House. The supplier's commitment to quality and innovation ensures. From the sturdy construction materials to the stylish finishes, every component is carefully selected to deliver a remarkable living experience.

Immerse yourself in the tranquility of the Orlando Tiny House and experience the serenity it offers. Escape from the hustle and bustle of everyday life and find solace in the simplicity and beauty of this thoughtfully designed dwelling. DEEPBLUE SMARTHOUSE invites you to explore the Orlando Tiny House, where comfort, functionality, and exquisite design come together in perfect harmony.

Applications:
Hotel, House, Office, etc.

Product Description:

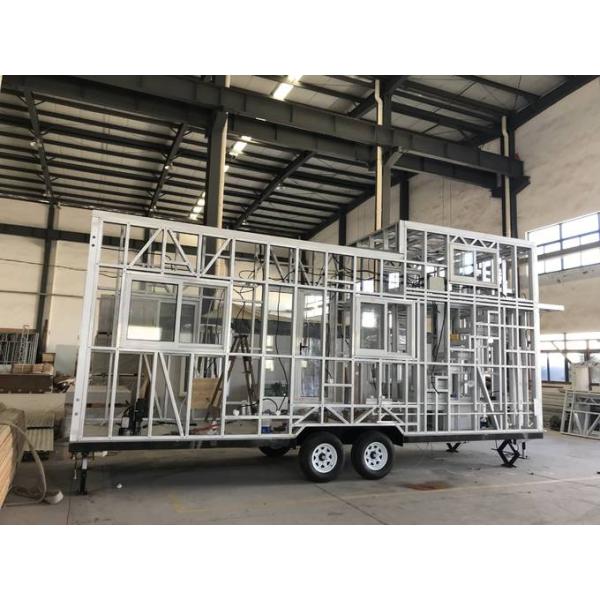

DeepBlue earthquake proof prefabricated bungalow is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers.
the materials are the following:
1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.
the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, Pvc carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board, water-proof, termite-proof, security and healthy
7. ceiling: 8mm Pvc ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.


Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.


Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.



Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.
