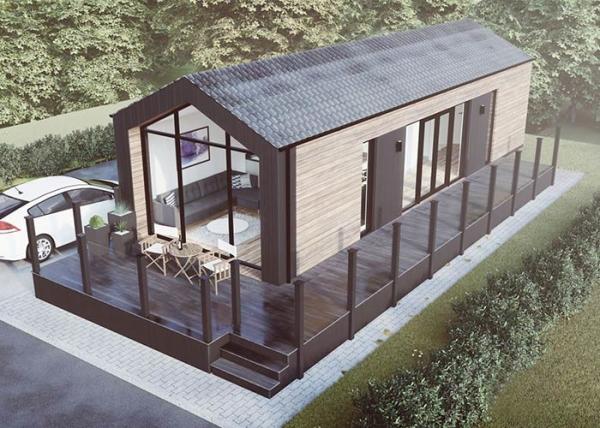

Leisure prefabricated light steel quick build small house for holiday

Quick Detail:

Paikun Cabin:

Length: 12.3m
Width: 4.2m
Area: 51.66㎡

Paikun house is a practical holiday cottage, perfect for a family holiday together.
tiny home/ holiday lodge
dining area/corner sofa / pull out double bed with two single beds for the children
fully fitted kitchen
fully fitted bathroom
insulated for year-round living
Large sun-drenched windows
A cosy cottage for relaxation

Description:

Main structure: Light Gauge Steel Frame
Wall cladding: WPC cladding
Insulation material: Glass wool/ Rock Wool
Ceiling material: PVC/Gypsum board+others
Roof: colorbond
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy/PVC
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure


Applications:

Toilet, washbasin, shower, kitchen, study room, etc.


Specifications

Home accents holiday :

ISO standard light gauge steel for the main structure. one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.


Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.


Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
