Product Features

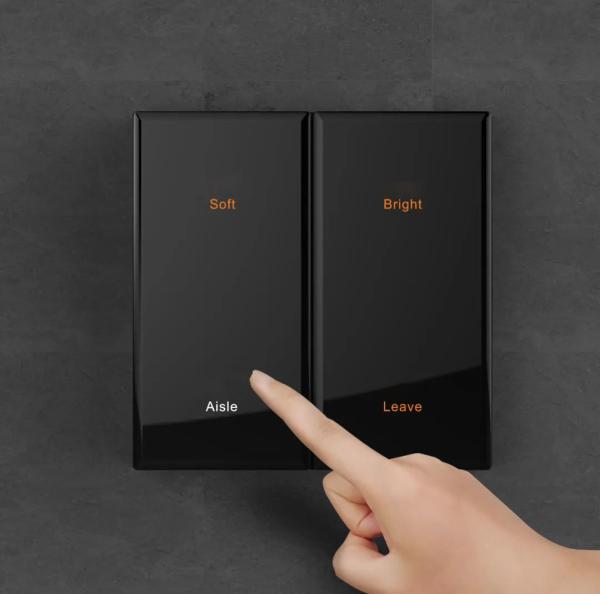

(1) Patented variable backlight technology

The backlight characters on the buttons display different light source colors according to whether they are turned on or off. When turned on, it is white, and when it is turned off, it is orange. You can clearly know which light is on and which light is off.

(2) Customizable fonts or patterns

The switch can customize its own exclusive scene graphics, bringing customers a clear vision and convenient for customers to use.

(3) Rich color options

Color is the most sensitive formal element that can arouse our common aesthetic pleasure. Therefore, D5 has launched a variety of color combinations of glass materials to provide the personal customization-level high-value features that strive for excellence.

(4) Provide comprehensive switching solutions

The connection methods of D5 glass series are: knx, wireless zigbee, modbus rs485, high voltage single / double control 220V, dry contact.

2.5D stereo tempered glass panel means that the glass edge of the switch panel adopts 2.5D glass three-dimensional processing technology, and the edges of the panel buttons are all three-dimensional small arc surfaces.The whole switch shows the luxurious texture of the mirror, and brings a larger gradient area and more free adjustment space for the rounded corners in such a small space, which is very difficult in technical processing. That's how professional Smart Laffey is in the details. It is this combination of careful matching and technology that can better satisfy the user's quality of life.

Description

Modbus communication: Network smart panel, read or write the register through rs485, realizing distant monitor and output control. MODBUS RTU protocol is adopted. Serial port parameter settings: Baud rate:”9600”, check bit:”null”, data bit: “8”, stop bit: “1”.Two instructions distance: 100ms

Functions

(1) Communication format
