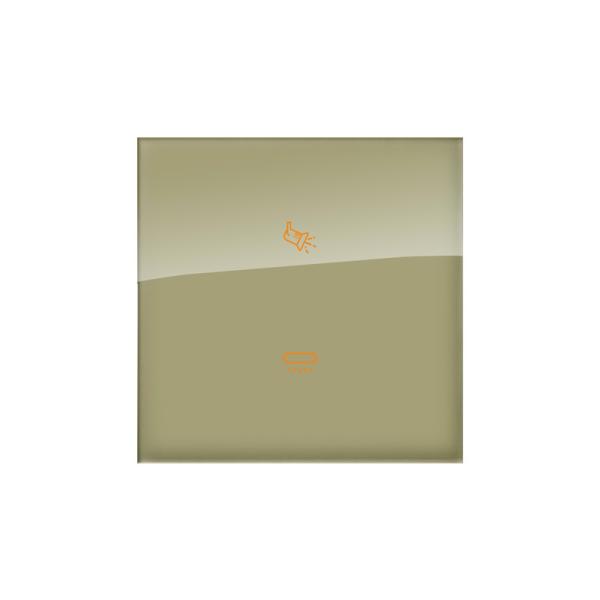

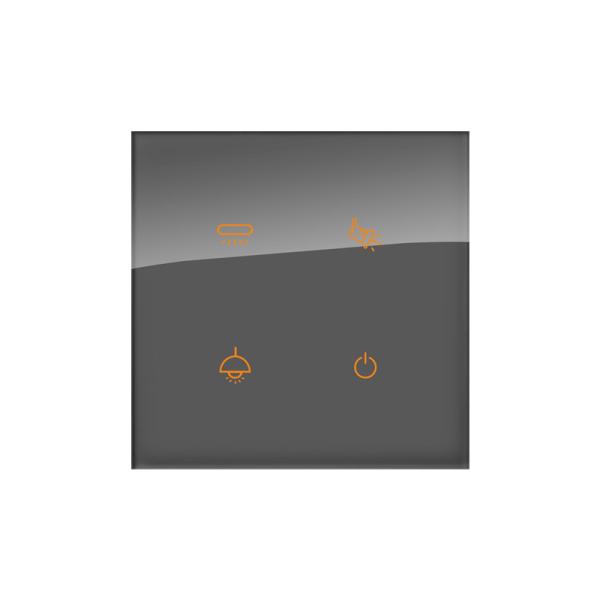

Tempered Glass Panel Tuya Zigbee Switch 86mm X 86mm Size Smart Home Devices
Tempered Glass Panel Tuya Zigbee Switch 86mm X 86mm Size Smart Home Devices
Tempered Glass Panel Tuya Zigbee Switch 86mm X 86mm Size Smart Home Devices
Tempered Glass Panel Tuya Zigbee Switch 86mm X 86mm Size Smart Home Devices
Tempered Glass Panel Tuya Zigbee Switch 86mm X 86mm Size Smart Home Devices
Tempered Glass Panel Tuya Zigbee Switch 86mm X 86mm Size Smart Home Devices
Specifications
Brand Name :
Smart Laffey
Model Number :
LFZB-swxx-T7
Place of Origin :
Guangdong, China
MOQ :
50 Pieces
Price :
Negotiable
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
10-15 work days
Packaging Details :
Carton Box
Product name :
Tuya Zigbee Switch
Material :
Tempered Glass Panel
Size :
86mm * 86mm
Voltage :
240V, AC
Type :
Wireless
Protocol :
Tuya APP Zigbee 3.0
Description

Tempered Glass Panel Tuya Zigbee Switch 86mm * 86mm Size Smart Home Devices

Specifications

Product Name Tuya Zigbee Switch
Brand Smart Laffey
Size 86mm*86mm
Color White / Grey / Champagne
Power 240V, DC
Back Box for Installation UK Square Box / EU Round Box
Description Orange light / Touch screen
Function Control light
Style 1 gang / 2 gang / 3 gang / 4 gang (2-4 conjoined)
Application Scene Home/Hotel/Villa

Product Features

1. High-sensitivity touch sensing: touch module, strong anti-interference, fast button response.

2. Graphical and text customization: The text and patterns on the switch can be customized according to the user's scene, and the personalized customization scheme allows the user to clearly identify the switch function of each area.

Description

1.The product supports IEEE802.15.4 (ZigBee/ZHA) communication mode;

2.The product wirelessly controls the device through the APP;

3.The product can directly control the corresponding equipment through the key switch;

4.This product can be linked with smart home devices such as control and security to easily realize local and remote control functions.

Paremeter
Power 100-242V～,50/60Hz
Standby Power Consumption ≤1W
Storage Temperature -25℃～+70℃
Working Temperature -10℃～+45℃
Working Humidity ≤95RH (NON-condensing)
Maximum Resistive Load 1-way /Total way ≤1000W
Maximum Capacitive / Inductive Load 1-way ≤200W

Functional Requirements

Network entry/exit settings:
Before setting up the network, make sure the ZigBee network of the gateway (sold separately) is working properly. At the same time, please make sure that the product is turned on and within the effective communication distance of the gateway.

Network access/exit settings:
Press and hold any button for 5 seconds, the button's white status indicator flashes slowly. Then quickly press the button 3 times (the effect will be accumulated within 2 seconds, and the network access operation will be canceled if there is no button action within 5 seconds). The white status light of the button flashes rapidly to indicate that the network is being searched, and the light stops flashing after the network access is successful. If the network is not successfully connected within 90 seconds, the light will stop flashing.


Tempered Glass Panel Tuya Zigbee Switch 86mm X 86mm Size Smart Home Devices
Tempered Glass Panel Tuya Zigbee Switch 86mm X 86mm Size Smart Home Devices
Tempered Glass Panel Tuya Zigbee Switch 86mm X 86mm Size Smart Home DevicesTempered Glass Panel Tuya Zigbee Switch 86mm X 86mm Size Smart Home Devices
Tempered Glass Panel Tuya Zigbee Switch 86mm X 86mm Size Smart Home Devices

Advantages

(1) Mutual benefit : We are factory also have more than 10 years experience in manufacturing and developing of switches and sockets.

(2) Customize : We have strong R&D team, we will try our best to custom product as your request.

(3) OEM service : (a) Printing your Logo (b) Engraving words or icons

(4) Mix order : We accept mix order, different model and small quantity order.

(5) We have got KNX Assosiate Certificate/ CE Emc/Rohs for different products, and we have certified by ISO9001 Quality Management System.

FAQ

1. Q:What’s the shipping method?

A: By express way. Such as Fedex, DHL, TNT and so on; by air or by sea. Shipping cost is decided by shipping ways and product’s actual weight and volume, also your detailed address.

2. Q:Can we print our own brand or logo on your products?

A: Yes, it is our pleasure to be one your OEM manufacturer in China to meet your OEM requirements.

3. Q: Why do some goods have difference between website picture and practical items?

A: Because difference of light and browser, also different batches, materials may be little difference, such as lining. Sometimes, the picture is for reference only. These are allowed in actual case. If any question, please tell us before order and ask clearly.

4. Q: Can I order one piece for sample or trial order less than MOQ to test the quality?

A: Yes, We recommend to check the sample before order. We accept trial order less than MOQ.

5. Q: If I order big quantity, what's the good price?

A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.

If you have another question, please feel free to contact us.
