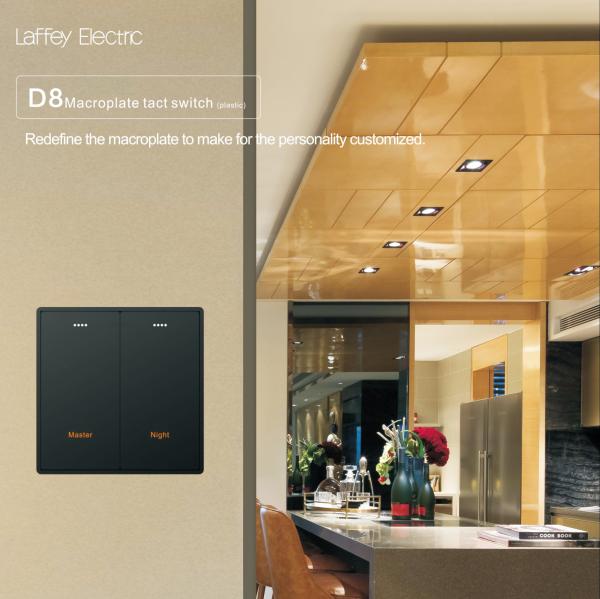

D8 Electrical Wall Switch RS485 Modbus Light Switch Push Button Style
D8 Electrical Wall Switch RS485 Modbus Light Switch Push Button Style
D8 Electrical Wall Switch RS485 Modbus Light Switch Push Button Style
D8 Electrical Wall Switch RS485 Modbus Light Switch Push Button Style
Specifications
Brand Name :
Smart Laffey
Model Number :
LFmd-swxx-D8
Place of Origin :
Guangdong, China
MOQ :
50 Pieces
Price :
Negotiable
Supply Ability :
100000 Piece/Pieces per Month
Delivery Time :
10-15 work days
Packaging Details :
Carton Box
Name :
D8 Electrical Wall Switch
Protocol :
RS485 Modbus
Style :
Push Button Style
Function :
Controlling Light Switch
Max. Voltage :
12V
Color :
Black/Champagne/Grey
Application :
Connecting room control unit
Back box for installation :
UK
Conjoined :
2/3/4/5 conjoined
Size :
86mm*86mm
Description

Electrical Wall Switch RS485 Modbus Light Switch Push Button Style

Specifications

Product Name D8 Electrical Wall Switch
Brand Smart Laffey
Size 86mm*86mm
Color Black/Champagne/Grey
Protocol Modbus RS485
Power 12V, DC
Back Box for Installation UK Square Box
Conjoined 2/3/4/5 conjoined
Function Controlling lamp
Types 1/2/3/4/5/6-button
Application Connecting room control unit

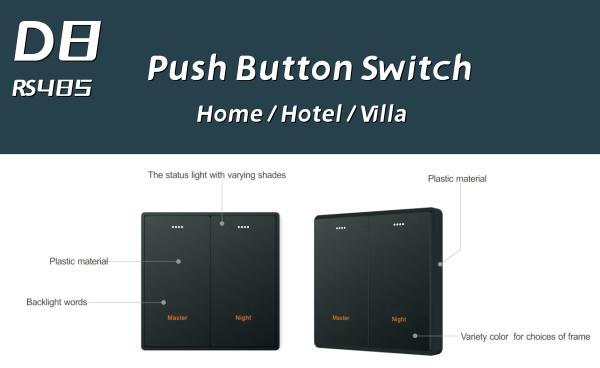

Product Features

Metal shrapnel or silicone gaskets are added inside the D8 tact switch, and the keys have a good touch and strong resilience.

The plastic shell material is firm, resistant to stamping, flame retardant and fireproof, high temperature resistance, not easy to change color, and not deformed after long-term use.

Internal conductor of the product: high-quality metal material, wear-resistant, good elasticity, good electrical conductivity, durable and strong anti-oxidation ability.

All finished products are subject to 100% wire inspection before leaving the factory to ensure product quality inspection.

Description

Modbus communication: Network smart panel, read or write the register through rs485, realizing distant monitor and output control. MODBUS RTU protocol is adopted. Serial port parameter settings: Baud rate:”9600”, check bit:”null”, data bit: “8”, stop bit: “1”.Two instructions distance: 100ms

Functions

(1) Communication format

Communication

Device ID

 Function code Data address Communication data CRC Check
1Byte 1Byte 2Byte nByte 2Byte

(2) Communication device No.

1----255, factory default address; OXFF is broadcast address

Under broadcast mode, write is permitted, not read. No data back from slave device.

(3) Function code

Function code Function content
03H read specified address data
06H set specified address data
83H read instruction error return
86H set specified address error return

D8 Electrical Wall Switch RS485 Modbus Light Switch Push Button Style
D8 Electrical Wall Switch RS485 Modbus Light Switch Push Button Style
D8 Electrical Wall Switch RS485 Modbus Light Switch Push Button Style
D8 Electrical Wall Switch RS485 Modbus Light Switch Push Button Style
D8 Electrical Wall Switch RS485 Modbus Light Switch Push Button Style
D8 Electrical Wall Switch RS485 Modbus Light Switch Push Button Style

Advantages

(1) Mutual benefit : We are factory also have more than 10 years experience in manufacturing and developing of switches and sockets.

(2) Customize : We have strong R&D team, we will try our best to custom product as your request.

(3) OEM service : (a) Printing your Logo (b) Engraving words or icons

(4) Mix order : We accept mix order, different model and small quantity order.

FAQ

1. Q:What’s the shipping method?

A: By express way. Such as Fedex, DHL, TNT and so on; by air or by sea. Shipping cost is decided by shipping ways and product’s actual weight and volume, also your detailed address.

2. Q:Can we print our own brand or logo on your products?

A: Yes, it is our pleasure to be one your OEM manufacturer in China to meet your OEM requirements.

3. Q: Why do some goods have difference between website picture and practical items?

A: Because difference of light and browser, also different batches, materials may be little difference, such as lining. Sometimes, the picture is for reference only. These are allowed in actual case. If any question, please tell us before order and ask clearly.

4. Q: Can I order one piece for sample or trial order less than MOQ to test the quality?

A: Yes, We recommend to check the sample before order. We accept trial order less than MOQ.

5. Q: If I order big quantity, what's the good price?

A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
