Smart RS485 Programmable Wall Switch Digital Push Button Tact Switch
Smart RS485 Programmable Wall Switch Digital Push Button Tact Switch
Smart RS485 Programmable Wall Switch Digital Push Button Tact Switch
Smart RS485 Programmable Wall Switch Digital Push Button Tact Switch
Specifications
Brand Name :
Smart Laffey
Model Number :
LFmd-swxx-D5
Place of Origin :
Guangdong, China
MOQ :
50 Pieces
Price :
Negotiable
Supply Ability :
100000 Piece/Pieces per Month
Delivery Time :
10-15 work days
Packaging Details :
Carton Box
Name :
D5 Glass Tact Switch
Protocol :
RS485 Programmable
Type :
Push Button
Max. Voltage :
12V low voltage
Material :
Glass Panel
Application :
Connecting room control unit
Back box for installation :
UK 86*86mm back box
Conjoined :
2/3/4/5 conjoined
Size :
86mm*86mm
Description

Smart RS485 Programmable Wall Switch Digital Push Button Tact Switch

Specifications

Product Name D5 Glass Tact Switch
Brand Smart Laffey
Size 86mm*86mm
Color Black/Champagne/Grey
Protocol RS485 Programmable
Power 12V, DC
Back Box for Installation UK Square Box
Conjoined 2/3/4/5 conjoined
Function Controlling lamp
Types 1/2/3/4/6-button
Application Connecting room control unit

Product Features

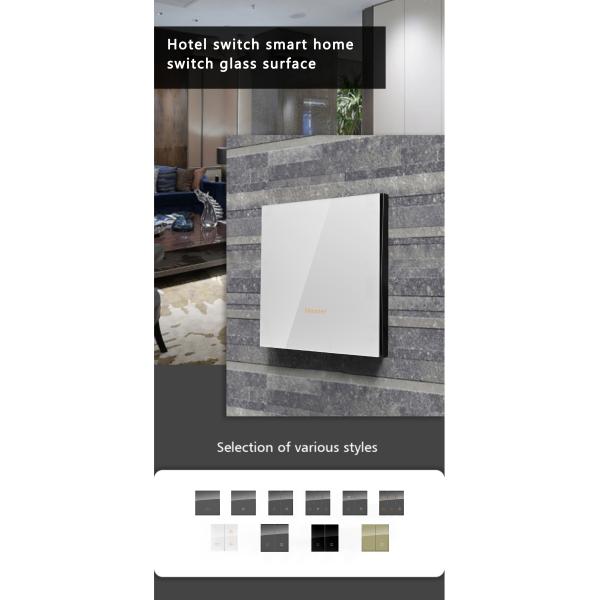

The switch panel is made of glass, and the edge is made of 2.5D glass processing technology to form a three-dimensional small arc surface, highlighting the texture of the panel.

Allows customers to customize the engraved text or pattern on the panels to make each panel unique. The backlit words on the keys display different light source colors depending on whether they are on or off: white when on, and orange when off. The state of the switch can be clearly known, which is very convenient for users and reflects the humanized design.

Color is one of the most expressive elements. Our switch panels are available in three colors (black/gray/champagne), which can be freely matched with a variety of home styles to enhance the taste and style of the entire home.

Description

Modbus communication: Network smart panel, read or write the register through rs485, realizing distant monitor and output control. MODBUS RTU protocol is adopted. Serial port parameter settings: Baud rate:”9600”, check bit:”null”, data bit: “8”, stop bit: “1”.Two instructions distance: 100ms

Functions

(1) Communication format

Communication

Device ID

 Function code Data address Communication data CRC Check
1Byte 1Byte 2Byte nByte 2Byte

(2) Communication device No.

1----255, factory default address; OXFF is broadcast address

Under broadcast mode, write is permitted, not read. No data back from slave device.

(3) Function code

Function code Function content
03H read specified address data
06H set specified address data
83H read instruction error return
86H set specified address error return

Smart RS485 Programmable Wall Switch Digital Push Button Tact Switch
Smart RS485 Programmable Wall Switch Digital Push Button Tact Switch
Smart RS485 Programmable Wall Switch Digital Push Button Tact Switch
Smart RS485 Programmable Wall Switch Digital Push Button Tact Switch




Advantages

(1) Mutual benefit : We are factory also have more than 10 years experience in manufacturing and developing of switches and sockets.

(2) Customize : We have strong R&D team, we will try our best to custom product as your request.

(3) OEM service : (a) Printing your Logo (b) Engraving words or icons

(4) Mix order : We accept mix order, different model and small quantity order.

FAQ

1. Q:What’s the shipping method?

A: By express way. Such as Fedex, DHL, TNT and so on; by air or by sea. Shipping cost is decided by shipping ways and product’s actual weight and volume, also your detailed address.

2. Q:Can we print our own brand or logo on your products?

A: Yes, it is our pleasure to be one your OEM manufacturer in China to meet your OEM requirements.

3. Q: Why do some goods have difference between website picture and practical items?

A: Because difference of light and browser, also different batches, materials may be little difference, such as lining. Sometimes, the picture is for reference only. These are allowed in actual case. If any question, please tell us before order and ask clearly.

4. Q: Can I order one piece for sample or trial order less than MOQ to test the quality?

A: Yes, We recommend to check the sample before order. We accept trial order less than MOQ.

5. Q: If I order big quantity, what's the good price?

A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.

If you have another question, please feel free to contact us.
