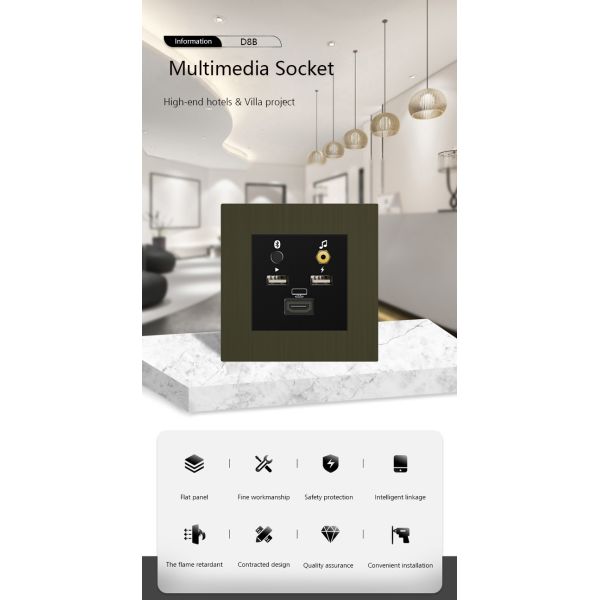

Champagne / Bronze Color Multimedia Socket 86mm * 86mm Size Cover

Specifications

Product Features

1. Different decorative frames can be selected according to customer needs, including K plastic wide frame, Z plastic, Narrow frame, X zinc alloy frame, J steel frame to match different decoration styles

2. The material is not easy to generate heat, but has high conductivity.

3. Standard 86 wall box installation, multiple panels can connect seamlessly.

Description

(1) Product style: The functional parts of the product are the same (the middle part), and the outer frame has different styles.

(2) Bluetooth button (optional): It can be connected with devices with wireless Bluetooth.

(3) USB interface: The USB interface can provide an output current of 5V/1A to charge the connected devices. It can also be used to connect USB to realize audio and video playback function.
(4) USB interface: Provides an output current of 5V/2A to charge the connected devices.

(5) HDMI interface: It can be used to connect various devices with HDMI interface.The premise is that the HDMI interface of all connected devices has CEC protocol, such as XBOX360.

(6) 3.5mm headphone audio interface: can be used to connect various 3.5mm audio interfaces

Installation Method

1. When in use, insert a digital information source, the device will automatically turn on.

2. Please connect the terminal device to the corresponding interface of the panel through the corresponding cable, or connect to the device through wireless Bluetooth and set the connection interruption to the video or audio output mode.

3. When Bluetooth is connected, first turn on the Bluetooth function by touching the button, please search and connect to the device on the mobile phone or other terminal device, the corresponding Bluetooth device is named Bluetooth, the connection password is randomly displayed on the big screen, and the music is played after connection. You can output stereo through your flat-screen TV.

4. When using the USB interface to charge, just plug the USB interface into the USB socket of the device to charge the digital device. When using USB to play, insert the USB, use the TV remote control to control and select the corresponding files in the Usb to play.

Note: HDMI port requirements: use a HDMI cable with a male end, and the cable end is a 90-degree angle. If it is a 182-degree straight plug, please use an adapter cable with a 90-degree angle to transfer.
