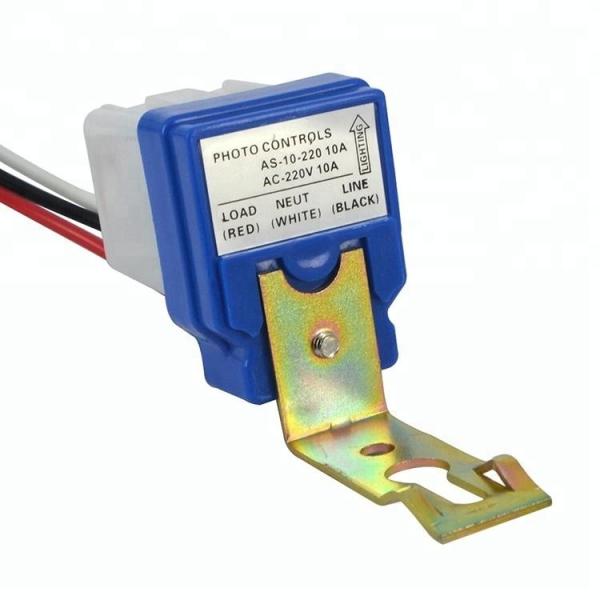

Dusk To Dawn Button Photo Control Switch Waterproof Flush Mount 220v
Dusk To Dawn Button Photo Control Switch Waterproof Flush Mount 220v
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
HGG
Model Number :
CL-1004
Price :
Negotiation
MOQ :
1 Piece
Certification :
CE,UL,ETL,ROHS
Packaging Details :
100pcs
Usage :
day and night photocontrol switch
Theory :
Optical Sensor
Output :
Switching Transducer
HS code :
8541409000
Rated voltage :
110-277 V/AC
Applicable voltage :
105~305VAC
Rated loading :
1000w tungsten, 1800va ballast
Ambient Temp :
-40~70℃
Power Consumer :
1.5VA MAX
Type :
twist-lock
electrical life :
5000 cycles
Certifications :
CE,UL,ETL,ROHS
Description

Photocell Dusk to Dawn Button Photo Control Eye Photoelectric Switch Flush Mount

outdoor photocell switch 220v

photoelectric light control

photocell 12vdc, led garden light led street light photocell

Dusk To Dawn Button Photo Control Switch Waterproof Flush Mount 220v

A perfect replacement wall pack photocell, postlamp button dusk-to-dawn, flood light photocell or pole light photo sensor in applications where you are using HID, Induction, LED or CFL outdoor lighting systems


When you are testing the photocell, be sure to turn on the power (load will come on) and wait up to 5 minutes for the photocell to switch load off. For further testing cover the photo control completely with black tape or another dark material to simulate night conditions. If you cant cover the control with tape, try covering the photo control with the shipping carton to simulate night conditions.


Do not face the photocell into the midday sun. If the photo control is installed on the south side of a building, face the photocell east or west or point the photo control down toward the ground. The best direction to face the photo control is north.


Do not face the photocell where it can see artificial light. Light from windows, signs, street lights, etc., will cause the photo control not to switch on. The photo control should not be positioned so that it sees the light it is controlling (or reflected light - like off of your white siding or white painted soffit overhang). These conditions will cause the light to cycle on and off.
Do not install the photo control with wires up unless there is NO POSSIBILITY of water entering the photo control around the wires.

The photo control must be installed in an approved weatherproof box. Do not attempt to caulk around the wires. Installing a Photocell below the box is WRONG! Photocells installed on top of the Box is RIGHT!

Our Services

Our light fixture made by our own die casting factory,We make most of the lights parts such as reflctor, stand by ourself;

We have own maching do chip processing,We have dusint machine to electro-static powder spraying,the packers skilled more than 10 years experience, the technical engineer with 19 years experience, we have latest high-tech equipment, we have strong after sale service team best service for you;

We accept mix oder at any color with sample and batch for your many choose for you get winner client and market.

Please feel free contact us anytime,it's our honor to service for you. We are together.
