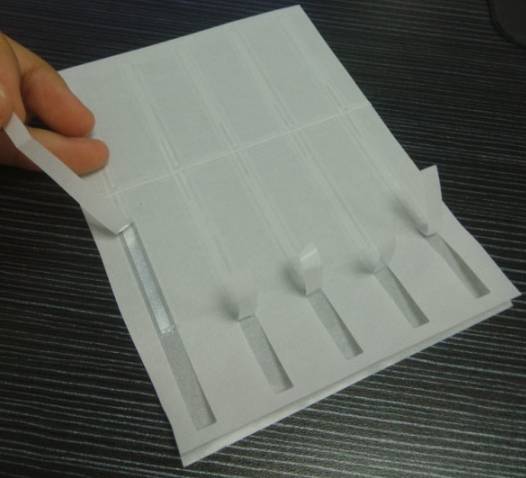

Adhesive Label Rfid Jewellery Tags High Frequency Customized Dimension
Adhesive Label Rfid Jewellery Tags High Frequency Customized Dimension
Adhesive Label Rfid Jewellery Tags High Frequency Customized Dimension
Adhesive Label Rfid Jewellery Tags High Frequency Customized Dimension
Adhesive Label Rfid Jewellery Tags High Frequency Customized Dimension
Adhesive Label Rfid Jewellery Tags High Frequency Customized Dimension
Specifications
Brand Name :
OEM
Model Number :
Sticker-02
Certification :
ISO CE ROSH
Place of Origin :
China
MOQ :
negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
1000000pcs/year
Delivery Time :
7-10 days
Packaging Details :
2000pcs/roll,5 rolls in one carton
Operating Frequency :
890-960MHz Uta High Frequency
Tag's Chip :
Alien Higgs 3,Alien Higgs 4,Monza 3,Monza 4
Reading distance :
1-5m(up to reading device and work environment
Materials :
AL-etching antenna, PET substrate,Copper Paper,
Dimension :
120*15mm or customized
Work Temperature :
-10°C to +50°C
Application :
Jewelry store and inventory
Sample :
Available for Testing
Read/Write Times :
100000 times
Package :
1000-5000pcs per roll
Place of Original :
Shenzhen,Guangdong, China (Mainland)
Description

ISO18000-60 890MHz RFID Sticker Tags Alien Higgs 3 RFID Chip for Jewelry Inventory Management

General description:


This RFID jewelry tag has been specifically designed to meet the tracking requirements of the jewelry
industry in terms of size, shape and ease of fixation. The RFID jewelry tag in a white adhesive label
adaptable to any type of jewelry piece, including rings, earrings and necklaces.
The ISO jewelry tag to be quickly and reliably identified all along their distribution chain, from
warehouses to point-of-sales.Whether in bags, on trays or on shelves, several pieces of jewelry can be easily
inventoried using fixed or portable RFID reading stations.

Model Name rfid Jewelry Label
Protocol ISO/IEC 18000-6C, EPC Global Class 1 Gen 2
RFID Chip Alien H3/ Impinj M4QT or Customized
Operating Frequency UHF 860~960MHz
Memory 48 bit Serialized TID, 128 bit EPC, No User Memory
IC Life 100,000 Programming cycles, 10 years data retention
Label Width 100.00 mm(Tolerance± 0.20 mm)
Label Length 14.00 mm(Tolerance± 0.50 mm)
Tail Length 48.00 mm(Tolerance± 0.50 mm)
Surface Material Radiant White PET
Operating Temperature -0~60°C
Operating Humidity 20%~80% RH
Storage Temperature 20~30°C
Storage Humidity 20%~60% RH
Shelf Life 1 year in anti-static bag at 20~30 °C / 20% ~60% RH
ESD Voltage Immunity 2 kV (HBM)
Appearance Single row reel form
Quantity 4000 ± 10 pcs/Roll;4 Rolls/Carton(Based on the actual shipment quantity)
Weight To be determined
