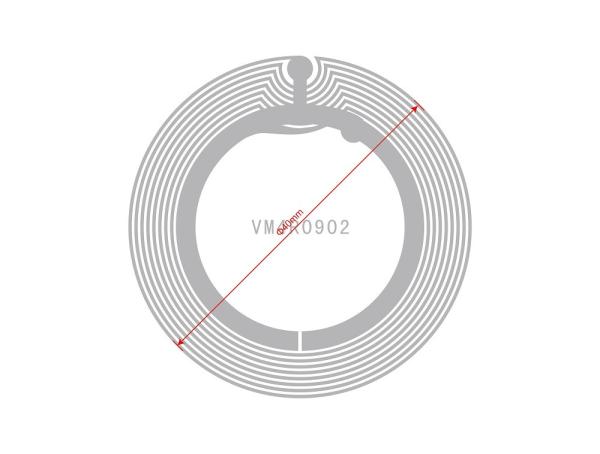

HF Smart Dry RFID Inlay 213 High Frequency For Medical Application
HF Smart Dry RFID Inlay 213 High Frequency For Medical Application
HF Smart Dry RFID Inlay 213 High Frequency For Medical Application
HF Smart Dry RFID Inlay 213 High Frequency For Medical Application
Specifications
Brand Name :
OEM
Model Number :
DInlay-20
Certification :
ISO CE ROSH
Place of Origin :
China
MOQ :
negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
1000000pcs/year
Delivery Time :
7-10 days
Packaging Details :
200pcs/box,10boxes/carton,
Operating Frequency :
13.56MHz High Frequency
Tag's Chip :
MF NFC 203,213,215,216
Reading distance :
1-10 cm
Materials :
AL-etching antenna, PET substrate,Copper
Dimension :
Dia 21,40*40,44*46,30*45,70*17,93*19,50*50 or customized
Work Temperature :
-10°C to +50°C
Application :
,NFC Payment ,Hospital,Logistics,warehouse inventory,apartment,asset management
Sample :
Available for Testing
Read/Write Times :
100000 times
Package :
1000-5000pcs per roll
Place of Original :
Guangdong, China (Mainland)
Description

RoHS Certificated Hf Smart Label 213 RFID Dry Inlay for Medical Application

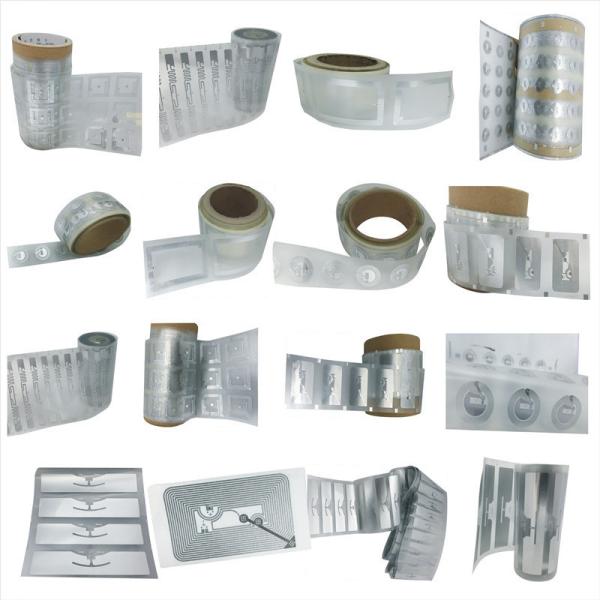

RFID inlay can be divided into two types:
Wet inlay: the chip inlay layer is adhesive and it stick on a release layer
Dry inlay: the chip inlay layer is without adhesive.

Inlays of various chips are available to be provided:
1. HF 13.56Mhz inlays:
a. ISO14443A Chip: MF 1K, MF 4K, Ultralight
b. ISO14443B Chip
c. ISO15693 Chip: SLI, SLI-X, SLI-S
2. UHF 840-960Mhz inlays: Alien H3, Gen2

Application:

- Asset tracking
- Library management
- Inventory and Logistics Management
- Supply Chain Management
- Retail System
- Apperal management ,etc

Item No. Special Offer Top Quality Rfid Inlay Uhf
Material PVC, PET, Paper, etc.
Dimension Dia 18 mm / 22 mm / 25 mm / 28 mm / 29 mm / 30 mm, 20 x 15 mm, 19 x 19 mm, 12 x 19 mm, 15 x 30 mm, 25 x 38mm, 35 mm x 35 mm, 25 x 40 mm, 50 x 50 mm or Customization
Frequency HF(13.56MHZ), UHF(840-960Mhz)
Protocol ISO14443A/B, ISO15693, 18000-6B, 18000-6C
Printing Silkscreen Printing/Laser Printing Logo & Number
Working temp -30~70ºC
MOQ 500 pieces


HF Smart Dry RFID Inlay 213 High Frequency For Medical Application
