Quick Reading Flexible Adhesive Rfid Tags Customized Size For Endry System
Quick Reading Flexible Adhesive Rfid Tags Customized Size For Endry System
Quick Reading Flexible Adhesive Rfid Tags Customized Size For Endry System
Quick Reading Flexible Adhesive Rfid Tags Customized Size For Endry System
Quick Reading Flexible Adhesive Rfid Tags Customized Size For Endry System
Quick Reading Flexible Adhesive Rfid Tags Customized Size For Endry System
Specifications
Brand Name :
OEM
Model Number :
WInlay-11
Certification :
ISO CE ROSH
Place of Origin :
China
MOQ :
negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
1000000pcs/year
Delivery Time :
7-10 days
Packaging Details :
200pcs/box,10boxes/carton,
Operating Frequency :
UHF 890-960MHz
Tag's Chip :
MF Alien H3,H4,U CODE 7,Monza 5,Monza 6,
Reading distance :
1-5 meters
Materials :
AL-etching antenna, PET substrate,Copper
Dimension :
Dia 21,40*40,44*46,30*45,70*17,93*19 or customized
Work Temperature :
-20℃- 75℃
Application :
Logistics,warehouse inventory,apartment,asset management
Printing :
Serial number priunt ,logo offset print ,logo digital print,logo silk-screen print
Read/Write Times :
100000 times
Package :
1000-5000pcs per roll
Place of Original :
Guangdong, China (Mainland)
Description

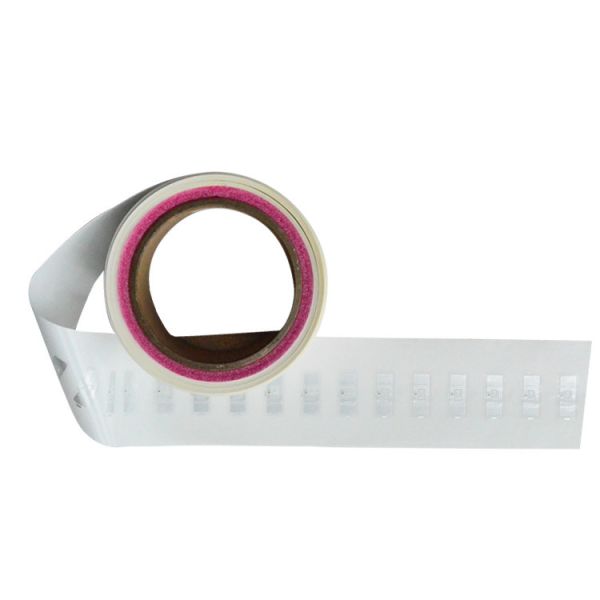

Quick Reading Monza 6 ISO18000-6C 860-960MHz UHF RFID Dry / Wet Inlay for Access/Security/Entrance System

General Description :

1. RFID HF/UHF dry/wet inlay can be used to produce RFID label, smart card, and other RFID tags. It featuers long read range and batch tags reading, perfectly suited for applications such as logistics, warehouse inventory, apparel, medical, laundry, asset management, etc.

2. RFID inlay is processed with etched antenna and flip chip packaging technology,whose material is soft ,light and thin ,and it can be processed to various kinds of ticket(such as train ticket)or label(such as NFC tag) and so on .
We supply various kinds of HF tag and UHF tag ,including many kinds of dry inlay and wet inlay and kinds of labels.

3. 13.56MHz rfid adhesive label / 860-960MHz inlay/860-960MHz rfid inlay/aluminum etched rfid uhf wet inlay, Factory high quality higgs-3 ISO18000-6C aluminium RFID inlay, UHF Passive RFID Wet Inlay for Logistics,rfid uhf wet inlay for Inventory Management and Tracing, HF/UHF RFID dry/wet Inlay from original manufacturer--free samples can be provided.

Product Information:

Item Name HF/UHF RFID dry/wet Inlay from original manufacturer
Model Number RFID inlay
Frequency HF:13.56MHz; UHF:860MHz - 960MHz
IC

UHF: H3/4,Monza4/5;

HF:IC SLIX,Ultralight(C),N213,F08,etc.
Memory UHF:512 bits/ 128 bits; HF:128byte/64byte/144byte/1Kbyte
Protocol

ISO/IEC 18000-6 TypeC (EPC Gen2)

ISO14443A/ISO15693
Antenna size Dia 21,40*40,44*46,30*45,70*17,93*19 or customized
Material AL-etching antenna, PET substrate,Copper
Operating Temperature -25°C to + 50°C
Store Temperature -40°C to + 65°C
Read/Write Cycles 100,000 times
Reading Range

UHF:1-10m

HF:1-10cm (depends on the reader and the environment)
Application

Logistics

Warehouse inventory

Apparel

Medical

Laundry

Asset Management

Parking

Quick Reading Flexible Adhesive Rfid Tags Customized Size For Endry System
