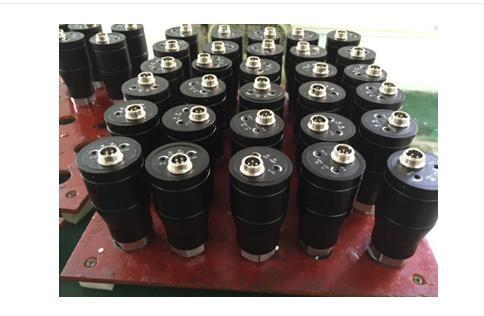

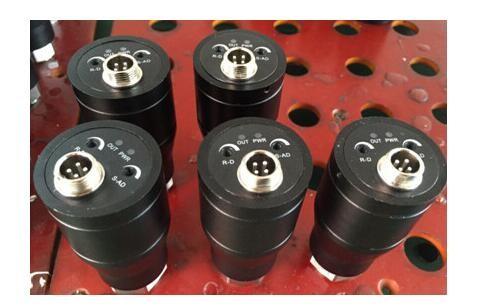

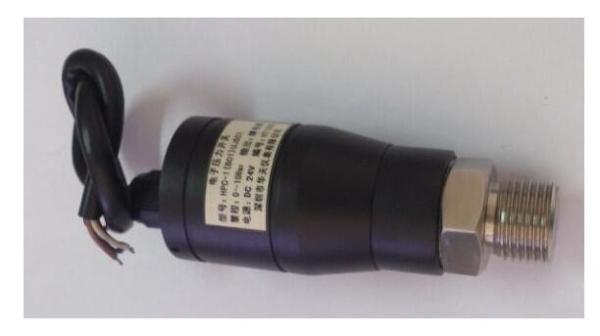

HPC-1 Electronic pressure switch with replays output for alarm purpose
HPC-1 Electronic pressure switch with replays output for alarm purpose
HPC-1 Electronic pressure switch with replays output for alarm purpose
HPC-1 Electronic pressure switch with replays output for alarm purpose
HPC-1 Electronic pressure switch with replays output for alarm purpose
HPC-1 Electronic pressure switch with replays output for alarm purpose
HPC-1 Electronic pressure switch with replays output for alarm purpose
HPC-1 Electronic pressure switch with replays output for alarm purpose
Specifications
Brand Name :
HT
Model Number :
HPC-1
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/day
Packaging Details :
1pcs/box, Standard Exporting packing
Output :
2 relays
Accuracy :
0.5%
Pressure range :
-0.1~250MPa
Description

Features:


Continuous adjustment
With control function
Using pressure sensor
can adjust zero point and the full range based on customer demand
Higher precision,quicker response than the mechanical pressure switch
Reliable switch signals
Intrinsically safe explosion-proof


Applications:
The oil industry, chemical industry,Electric power
Hydraulic pressure system,Pneumatic system
Energy and Water treatment system.
Automation equipment
Industrial process control

Performance parameters

Pressure range :-0.1~250MPa

Pressure mode : surface pressure,absolute pressure

Output signal : Relay contact or switch signals ( low level≤0.5
high level≥4.5 )

Accuracy(%FS) : 0.1 0.25 0.5

The setting range : can set relay point during the full range

Stability (%FS/Year): ≤0.5

Relay load capacity: 30V/3A DC 240V/3A AC

Working voltage(V) : 18~24V DC

Working temperature(℃): -20~80℃ or -60~200℃(high temperature type)

Storage temperature(℃): -40~200℃

Diaphragm material: 316L

Housing material:1Cr18Ni9Ti or aluminum alloy

Hysteresis(%FS) : ≤0.1 ≤0.25 ≤0.5

Repeatability(%FS): ≤0.1 ≤0.25 ≤0.5

Zero drift (%FS/℃): ≤0.02

Temperature drift(%FS)≤0.02

Diaphragm material: 316L or the ceramic diaphragm

Pressure interface: M20*1.5,G1/2,G1/4,1/4NPT or others

Protection grade: IP65

Weight : 80g
