Smart Double Acting Actuators Linear Valve Positioner

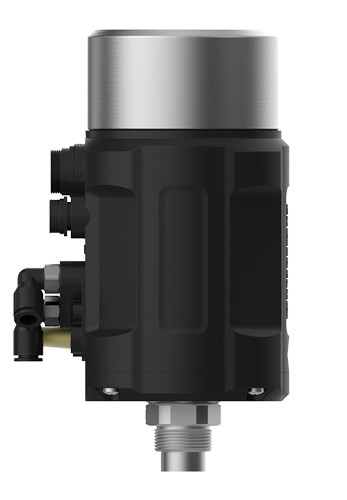

Smart Double Acting Actuators Linear Valve Positioner
Specifications
Brand Name :
POWERFLOW
Model Number :
1600
Certification :
ISO9001. CE. Nepsi
Place of Origin :
CHINA
MOQ :
1 Nos
Price :
Quotation Offered by Email.
Payment Terms :
T/T
Supply Ability :
50Nos/Week for every single Customer.
Delivery Time :
10-15 Days
Packaging Details :
CTN, 30*18*17CM
Set-point Signal :
0-5/10V or 0/4-20mA
Input Resistance for set-point signal :
240Ω at 0/4-20mA; 21KΩ at 0-5/10V
Ambient Temp :
0 - 70℃
Pnuematic connection :
Plug-in hose connector G1/4 (internal Φ6mm)
Air Flow Rate :
17 L/min (input pressure =0.6MPa); 58 L/min (input pressure =0.6MPa)
Stroke Control Range :
Linear 5-50mm; Rotary 0-90°
Description

1600 Series Linear Smart Electro-pneumatic Valve Positioner with Double-acting Actuators

​1. Product Description

1600 Series compact positioner is optimized for integrated mounting with the pneumatic actuators in the process valve and is specially designed for the requirements of a explosion-proof needed process environment. The control air channel is integrated in the actuator without external tubings. The simple handling and rich additional software functions are done either on a big graphic display with keypad. The control of single or double-acting actuators is done without internal air consumption. The housing is easy to clean and features proven IP 66 protection and chemically resistant materials for use in hygienic processing, in food, beverage and pharmaceutical industries, etc.

​2.Technical Datas

Material PC,PA6-GF30,Stainless Steel,SI
Power supply 24V DC ±10%
Set-point signal 0/4-20mA or 0-5/10 V
Input resistance for set-point signal 240Ω at 0/4-20mA, 21KΩ at 0-5/10V

Control medium

Dust concentration

Particle density

Pressure condensation point

Oil concentration

Neutral gases, air DIN ISO 8573-1

Class 5 (<40μm particle size)

Class 5 (<10mg/m3)

Cass 3 (<-20°C)

Class 5 (<25mg/m3)
Ambient Temperature 0-70°C
Pneumatic Connection Plug-in hose connector G1/4(internal Φ6mm)
Electrical Connection

M12 3-pins B-coded(cable ø 4-6mm)

M12 4-pins D-coded(cable ø 4-6mm)

M12 5-pins A-coded(cable ø 4-6mm)
Supply Pressure 3~7 bar, specific values depending on the actuator
Air Flow Rate 17 L/min, 58 L/min(only single-acting)
Stroke Control Range

Linear 5-50mm

Rotary 90°
Installation As required, Preferably with actuator in upright position, Screw.
Protection Class IP65
Power Consumption <5W
Explosion Proof Ex nA IIC T4

3. Product type selection

Smart Double Acting Actuators Linear Valve Positioner

4. Features

  • Compact stainless steel design
  • Electrical waterproof connectors
  • LCD with backlight
  • Easy to start-up
  • Rich additional software functions​

5. Additional software functions

  • Setting safety position for the position controller
  • Configuration of signal level fault detection
  • The binary outputs activating
  • Configuration of the outputs
  • The control parameters calibrating
  • Manual control rate setting
  • Code protection
  • Selection of the transfer characteristic between set-point value and stroke
  • Sealing function for position controller
  • Effective sense of direction between input signal and set-point value
  • Limit of the machanical stroke range
  • Control parameters setting

6. Signal flow diagram

Smart Double Acting Actuators Linear Valve Positioner
